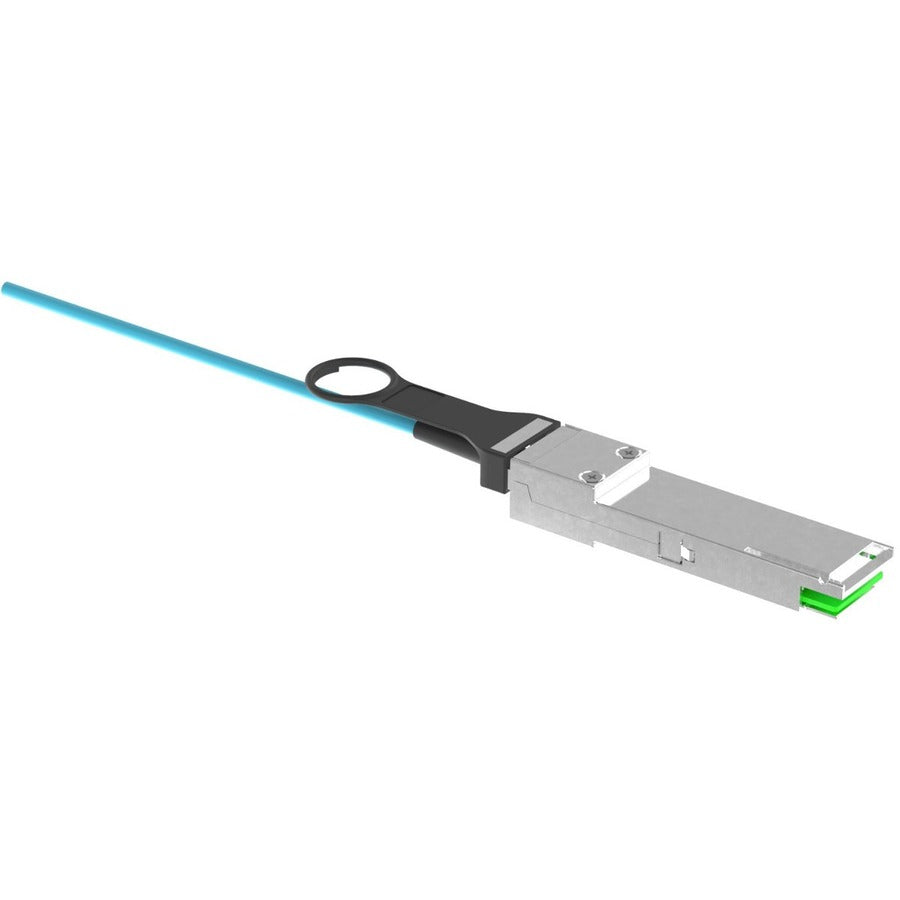

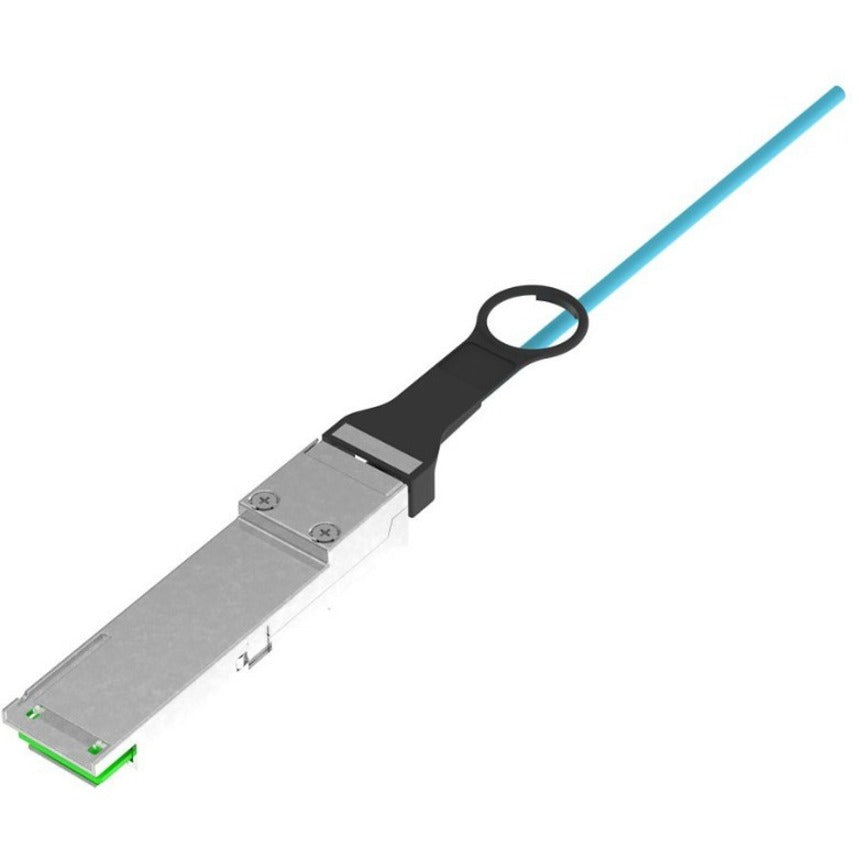

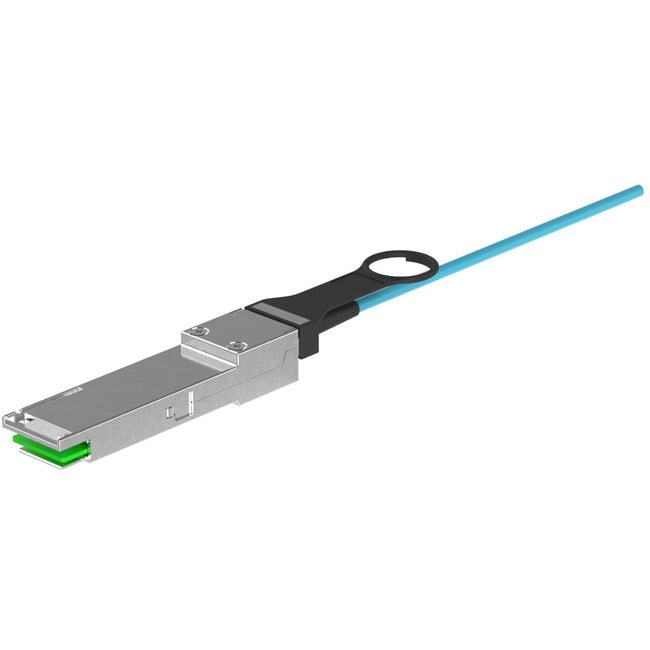

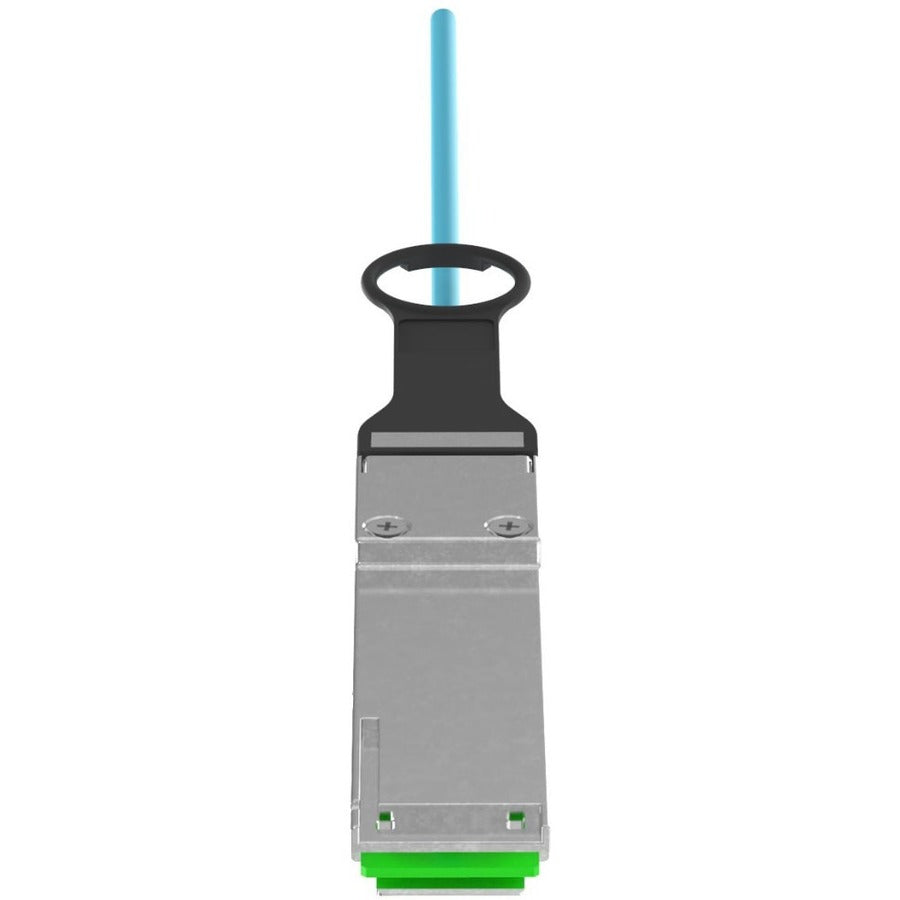

Panduit AOC Assembly, QSFP28 to QSFP28, 100G, OM4, 5m
Low Latency 100Gb/s Fiber Optic Interconnect Solution for Leaf to Spine Switching and Top of Rack Applications
As virtualization, consolidation, and convergence initiatives continue to grow, so do the demands placed on the physical infrastructure. To meet the needs for faster processing speeds, server inter-connect and I/O consolidation deployments, Panduit offers 100Gig™ QSFP28 Active Optical Cable Assemblies.
The QSFP28 Active Optical Cable Assemblies are constructed with a 3.0mm 8-fiber round unitary cable available in PVC rated jacket materials. These cords are available in OM4 multimode fiber type with high performance insertion loss essential for today's high-speed systems requiring very low connector insertion loss.
QSFP28 100Gig™ cable assemblies provide four channels of 25 Gb/s in one cost effective interface that offers up to four times the density of SFP28 25Gig™ cable assemblies.
End-to-end high-speed data transport systems from Panduit deliver enhanced availability, agility, and security. Visit www.panduit.com to learn more about how these solutions help customers manage risk across the physical infrastructure.
- Variety of lengths : Available 1 to 30 meters for design flexibility
- Small diameter cable design : Enables proper cable management and improved air flow
- Built-in strain relief : Ensures proper bend radius control for reliable deployment
- Low power active circuitry : Provides a low cost interconnect alternative to optical transceivers that can be driven off the existing port power
- Low profile : Robust easy-to-use connector latching feature allows easy installation in traditional and belly-to-belly high density installations
- Low latency performance : Ideal for high performance computer clustering and other latency sensitive applications
- Compliant to SFF-8636, SFF-8661 and SFF-8679 : Ensuring 100 Gb/s performance when mated to any SFF-8636 QSFP28 compliant host port
- Robust construction : Multimode fiber cable, factory terminated to QSFP28 100 Gb/s hot pluggable modular connectors; rated to a minimum 50 mating cycles
- 100% performance tested : Confidence that each assembly delivers specified performance for ensured network availability
Product Type: Network Cable
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Aqua
Product Material: PVC
Brand Name: Panduit
Manufacturer: PANDUIT CORP
Product Name: AOC Assembly, QSFP28 to QSFP28, 100G, OM4, 5m
Product Line: 100Gig
Manufacturer Part Number: AZ83NQ2Q2AQM005
Manufacturer Website Address: http://www.panduit.com
Packaged Quantity: 1
Limited Warranty: 1 Year
