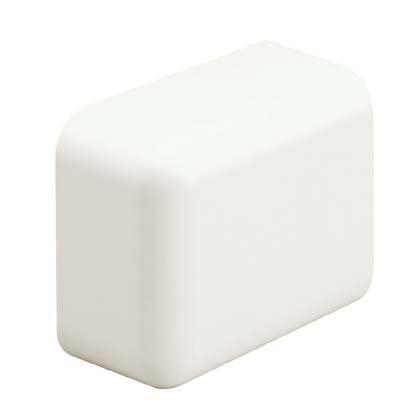

Panduit Ecf10Wh-X Cable Trunking System Accessory

End cap fitting for use with LD10 raceway

Panduit ECF10WH-X. Product colour: White, Material: PVC, Certification: CE, UL, RoHS. Width: 40.6 mm, Height: 23.1 mm

Pan-Way® LD Surface Raceway System
LD non-metallic series low voltage, one-piece hinged design, single channel surface raceway shall include adhesive backing and shall be made of impact resistant material with a smooth finish that shall not scratch, peel or corrode. The raceway shall include an assortment of bend radius and standard fittings that complement the offering to help route, protect and conceal low voltage data, voice and video cabling. LD raceway shall be available in three sizes and four standard colors that shall be optimized with the Panduit ® Pan-Net ® communication system.

1" bend radius control fittings:
Cables in the raceway will satisfy the minimum 1” bend radius requirement, preventing the potential degradation of cable performance; meets TIA/EIA standards.

One-piece hinged design:
Cables can be laid into the raceway, speeding installation and preventing damage to cables.

Adhesive backing:
Full length adhesive strip allows easy tool free installation and works well for temporary mounting.

Available in different sizes & lengths:
- Accommodates varying cable types and capacities;
- Available sizes - LD3, LD5,LD10 ;
- Available lengths - 6’,8’,10’ (2m length available in Europe only).

Non-metallic construction:
Lightweight, reducing installer fatigue and labor required to install the raceway; solid color throughout will not chip, peel, rust or corrode; easy to cut with standard saws and saw blades, eliminating the need for special cutting devices.

Distinct colors:
Available in four standard colors- IW,EI,IG,WH. AW available in Europe only. Raceway is field paintable to match walls and surrounding décor.

Full selection of fittings and surface mount boxes:
Wide variety of fittings and surface mount boxes available for various LD raceway applications.
