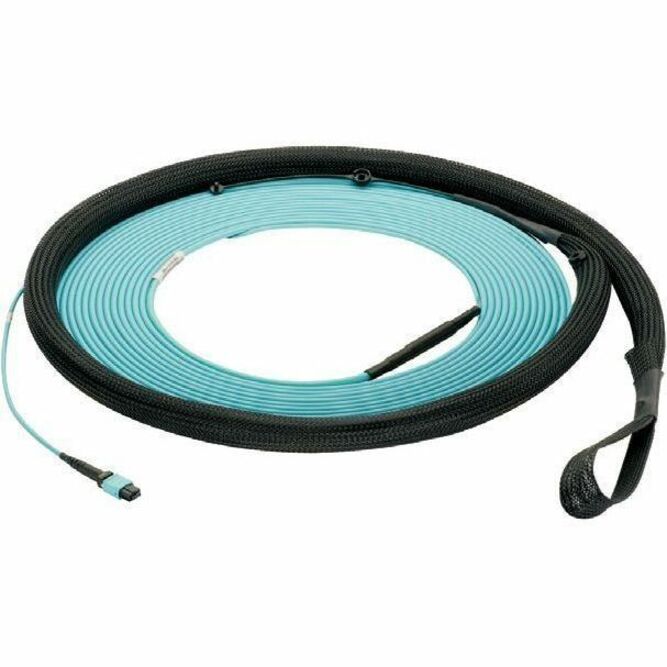

OM4 48-Fiber Indoor Trunk Cable Assembly — Panduit FYZWP88Y005F035
The Panduit OM4 48-fiber indoor trunk cable (FYZWP88Y005F035) is engineered for data center professionals, telecommunications installers, and network infrastructure teams deploying high-density fiber connectivity. This pre-terminated fiber assembly eliminates field termination complexity, accelerates deployment timelines, and ensures reliable connections in mission-critical environments. The 35-foot length with integrated optical pulling eye makes it ideal for rapid infrastructure buildouts in equipment distribution areas, telecommunications rooms, and data center backbone installations. Its plenum-rated OFNP jacket qualifies for air-handling spaces, while 50/125µm OM4 multimode fiber delivers superior bandwidth and reach compared to OM3 alternatives.
Key Features
- 48-fiber multimode trunk configuration for high-density deployments
- Pre-terminated design with optical pulling eye for streamlined installation
- Plenum (OFNP) rated jacket suitable for air-handling spaces
- 50/125µm OM4 multimode fiber for extended bandwidth and reach
- 35-foot length optimized for equipment distribution and backbone runs
- Compatible with Panduit QuickNet HD Flex system components
- Reduces labor costs and installation time versus field-terminated alternatives
- Maintains connection integrity during rapid fiber infrastructure deployment
Technical Specifications
| Specification |
Details |
| Manufacturer |
Panduit Corp |
| Part Number |
FYZWP88Y005F035 |
| Fiber Type |
OM4 Multimode (50/125µm) |
| Fiber Count |
48 fibers |
| Cable Length |
35 feet |
| Jacket Rating |
Plenum (OFNP) |
| Application |
Indoor trunk/backbone |
| Termination |
Pre-terminated with optical pulling eye |
| Polarity |
Polarity B |
| System Compatibility |
QuickNet HD Flex, OM4 multimode infrastructure |
Frequently Asked Questions
What is an OM4 48-fiber trunk cable used for?
An OM4 48-fiber trunk cable serves as a backbone connection in data centers and telecommunications facilities, linking equipment distribution areas to main cross-connects. The 48-fiber count supports high-density deployments, while the trunk configuration handles multiple channels simultaneously, reducing the number of individual cable runs needed.
Why choose pre-terminated fiber assemblies over field termination?
Pre-terminated fiber assemblies eliminate on-site termination labor, reduce connection errors, accelerate deployment timelines, and ensure factory-tested reliability. For rapid infrastructure buildouts, pre-terminated solutions like the Panduit FYZWP88Y005F035 minimize downtime and maintenance complexity.
Is this cable suitable for plenum spaces?
Yes. The Panduit OM4 48-fiber indoor trunk cable features a plenum (OFNP) rated jacket, making it compliant for installation in air-handling spaces, return air plenums, and other areas where fire-rated cabling is required by code.
How does OM4 compare to OM3 multimode fiber?
OM4 multimode fiber delivers higher bandwidth capacity and longer transmission distances than OM3, supporting demanding applications with greater future-proofing. The 50/125µm core diameter of OM4 enables superior performance in high-speed data center environments.
