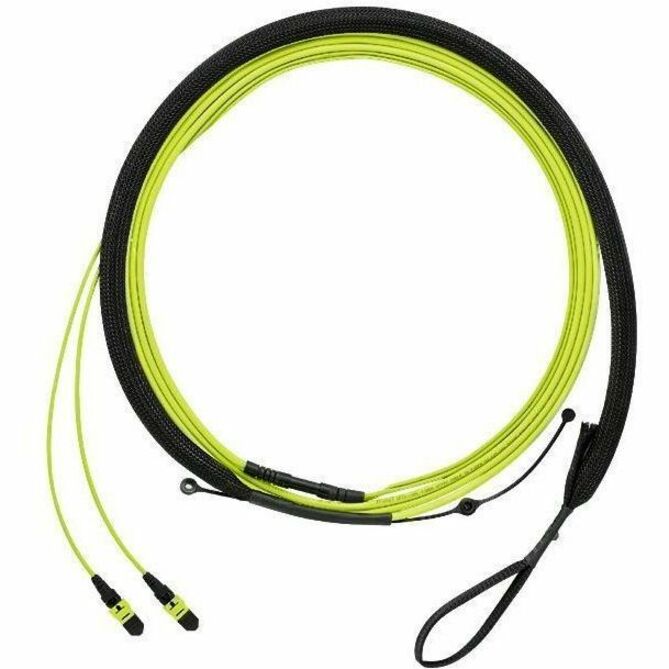

Panduit OM5 24-Fiber Trunk Cable Assembly for High-Density Data Centers
The Panduit OM5 SIG CORE 24F TRUNK LSZH PANMPO is a 55-meter, 24-fiber trunk cable assembly engineered for enterprise data center backbone installations requiring extended reach and high-density connectivity. This OM5 trunk cable combines low-smoke zero-halogen (LSZH) fire-safe construction with PANMPO connectivity to deliver reliable, future-proof fiber optic performance in demanding backbone environments. Ideal for organizations upgrading to multi-wavelength data center infrastructure, this 24-fiber trunk cable minimizes pathway congestion while supporting 400G+ transmission speeds across extended distances.
Key Features
-
24-Fiber OM5 Core — Supports multi-wavelength transmission for 400G and beyond backbone applications
-
55-Meter Length — Extended reach design minimizes intermediate connection points in data center backbones
-
LSZH Jacket — Low-smoke zero-halogen construction meets fire safety codes for enclosed data center environments
-
PANMPO Connectivity — High-density connector standard reduces footprint in backbone distribution frames
-
Pre-Terminated Assembly — Factory-tested trunk cable eliminates field termination labor and ensures consistent performance
-
High-Density Backbone Solution — Optimized for data center core and distribution layer interconnects
Technical Specifications
| Specification |
Details |
| Manufacturer |
PANDUIT CORP |
| Part Number |
FWUYL7575LAM055 |
| Cable Type |
OM5 Multimode Fiber Optic Trunk Cable |
| Fiber Count |
24 Fibers |
| Cable Length |
55 Meters |
| Connector Type |
PANMPO (Push/Pull) |
| Jacket Material |
LSZH (Low-Smoke Zero-Halogen) |
| Fire Rating |
LSZH Compliant |
| Wavelength Support |
Multi-wavelength (850nm, 900nm) |
| Data Rate Capability |
400G+ Backbone Applications |
| Application |
Data Center Backbone, High-Density Distribution |
Frequently Asked Questions
What is an OM5 trunk cable used for in data centers?
An OM5 trunk cable serves as the backbone infrastructure connecting core switches to distribution frames in data centers. The 24-fiber configuration with PANMPO connectivity enables high-density, multi-wavelength transmission supporting 400G+ speeds across extended distances, making it ideal for modern data center architectures requiring scalable backbone capacity.
Why choose LSZH construction for data center cables?
LSZH (Low-Smoke Zero-Halogen) construction is critical for enclosed data center environments. In the event of a fire, LSZH cables emit minimal smoke and no toxic halogen gases, protecting equipment and personnel while maintaining air quality. This fire-safe design meets stringent building codes and is required in many enterprise data center installations.
What are the advantages of PANMPO connectors?
PANMPO connectors deliver high-density fiber connectivity in a compact form factor, reducing physical footprint in backbone distribution frames. The push/pull design enables faster, more reliable connections compared to individual LC connectors, while supporting up to 24 fibers in a single connector interface—ideal for data center backbone consolidation.
How does a 55-meter trunk cable reduce data center pathway congestion?
The 55-meter length of this 24-fiber trunk cable assembly eliminates the need for intermediate splice points or multiple shorter cables, streamlining cable routing through data center pathways. This extended reach minimizes congestion in cable trays and conduits, improving airflow, reducing installation complexity, and lowering total cost of ownership.
