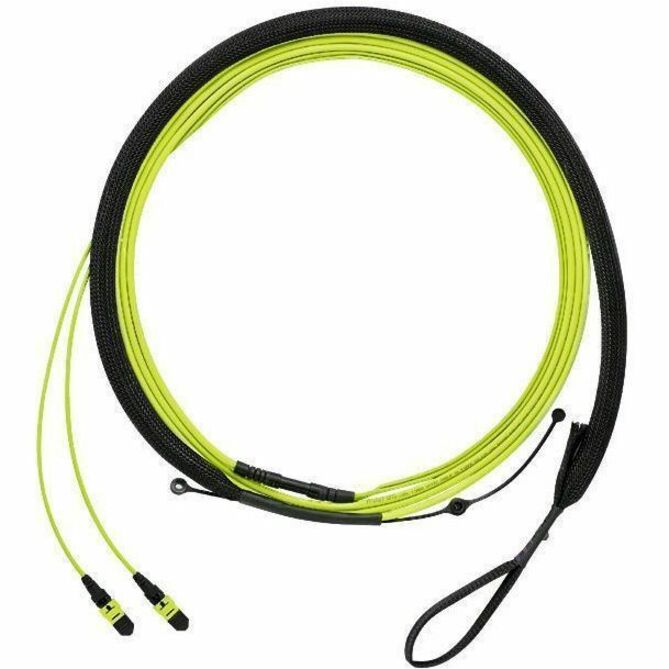

Panduit OM5 SIGCORE 24F TRK LSZH PNMPO Multimode Fiber Optic Cable
The OM5 SIGCORE 24F TRK LSZH PNMPO is a premium multimode fiber optic cable designed for high-speed data center and enterprise network installations. This 24-fiber cable features LSZH (Low Smoke Zero Halogen) jacket technology, making it ideal for environments requiring enhanced fire safety and environmental compliance. Built with Panduit's SIGCORE technology, this fiber optic cable delivers reliable performance for demanding telecommunications infrastructure, supporting next-generation bandwidth requirements while maintaining superior signal integrity across extended distances.
Key Features
- 24-fiber multimode configuration for high-density network deployments
- OM5 specification supports 400G and emerging high-speed applications
- LSZH jacket reduces smoke and toxic fumes in case of fire
- SIGCORE technology ensures consistent core geometry and performance
- Tight buffer construction protects individual fibers from environmental stress
- Suitable for indoor/outdoor and plenum-rated installations
- Enhanced durability for data center, campus, and enterprise networks
Technical Specifications
| Specification |
Details |
| Manufacturer |
Panduit Corp |
| Part Number |
FWUYL7575LNM009 |
| Fiber Type |
OM5 Multimode |
| Fiber Count |
24 fibers |
| Jacket Material |
LSZH (Low Smoke Zero Halogen) |
| Connector Type |
PNMPO |
| Core Diameter |
50 micrometers |
| Cladding Diameter |
125 micrometers |
| Numerical Aperture |
0.20 |
| Attenuation (850nm) |
≤2.3 dB/km |
| Attenuation (1300nm) |
≤0.4 dB/km |
Frequently Asked Questions
What is OM5 fiber and why should I choose it?
OM5 is the latest multimode fiber standard supporting higher bandwidth over longer distances than OM4. It's optimized for 400G Ethernet and future-proof for emerging high-speed applications, making it an excellent choice for modern data centers and enterprise networks requiring maximum performance.
What does LSZH jacket mean and why is it important?
LSZH (Low Smoke Zero Halogen) jacket material produces minimal smoke and no toxic halogen gases if exposed to fire. This makes LSZH cables essential for enclosed spaces like data centers, server rooms, and plenum areas where fire safety and air quality are critical concerns.
What is PNMPO connector type used for?
PNMPO (Push-to-Connect MTP/MPO) connectors are high-density fiber connectors designed for 24-fiber and higher-count cables. They enable quick, reliable connections in data center environments and support high-speed applications like 400G Ethernet with minimal signal loss.
Is this multimode fiber cable suitable for long-distance installations?
While OM5 multimode fiber is optimized for shorter distances compared to single-mode fiber, it performs excellently for campus networks, data center interconnects, and enterprise installations up to several hundred meters, depending on bandwidth requirements.
