Panduit

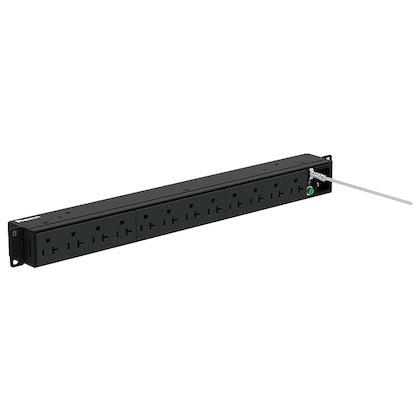

Panduit P12B19M Power Distribution Unit (Pdu) 12 Ac Outlet(S) 1U Black
Panduit P12B19M Power Distribution Unit (Pdu) 12 Ac Outlet(S) 1U Black
SKU:P12B19M
Regular price
$153.83
Regular price
Sale price
$153.83
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Specifications
Description :
Basic, 20A, 120V, 12x 5-20R, Single Phase
Panduit P12B19M. PDU types: Basic, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: NEMA 5–20R, Power plug: NEMA 5–20P. Cable length: 3 m. Nominal input voltage: 120 V, Maximum current: 20 A, Output voltage: 120 V. Dimensions (WxDxH): 444.5 x 50.8 x 40.6 mm
Panduit P12B19M Horizontal Basic Power Distribution Unit - Basic - NEMA 5-20P - 12 x NEMA 5-20R - 120 V AC - 1U - Horizontal - Rack-mountable
Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
Specifications :
General Information
| Manufacturer | PANDUIT CORP |
|---|---|
| Manufacturer Part Number | P12B19M |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | P12B19M |
| Product Name | P12B19M Horizontal Basic Power Distribution Unit |
| Product Type | PDU |
| UPC | 613056263314 |
| Height | 1.6" |
|---|---|
| Width | 17.5" |
| Depth | 2" |
| Environmentally Friendly | Yes |
|---|
| Limited Warranty | 3 Year |
|---|
