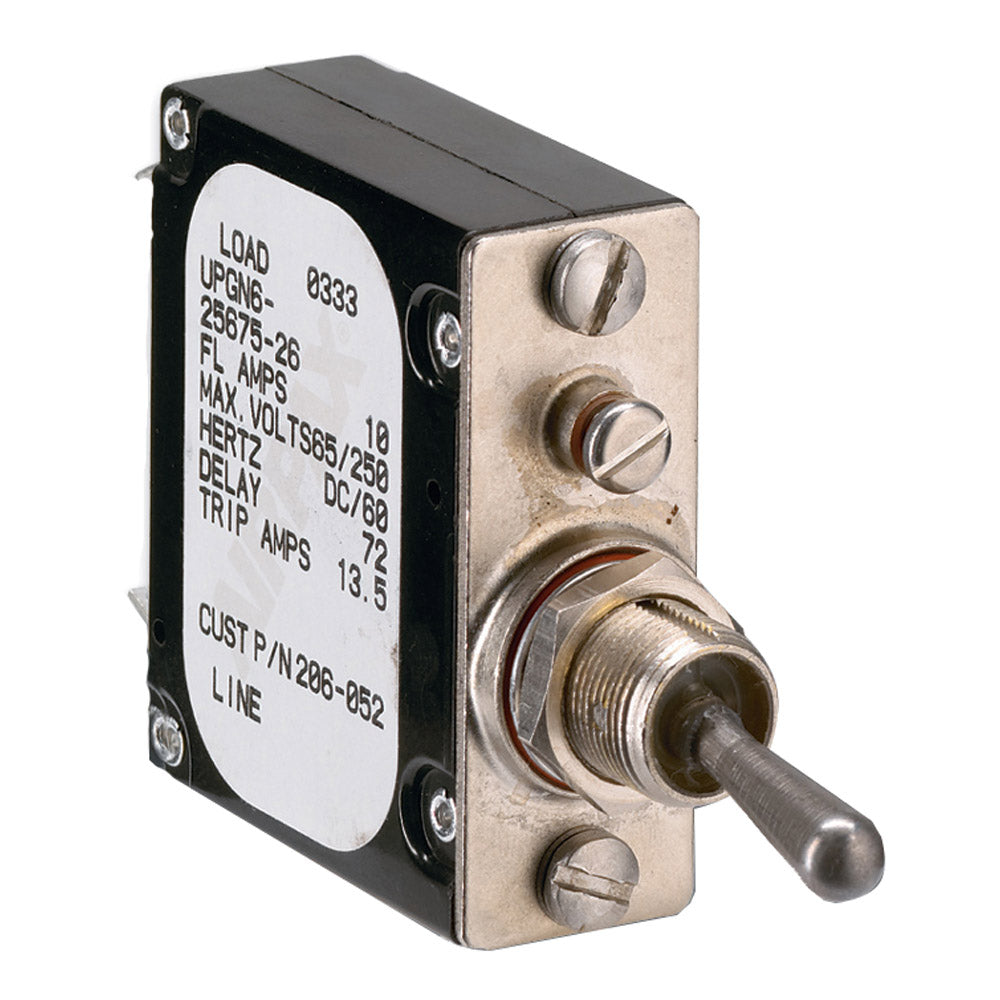

Name: Paneltronics Breaker 10 Amps A-Frame Magnetic Waterproof
Brand: Paneltronics
SKU: 29829-cwr
Price: 38.45 USD
Availability: OutOfStock

Paneltronics Breaker 10 Amps A-Frame Magnetic Waterproof

Roll over image to zoom in Click on image to zoom

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email sales@tecisoft.com.

Panel Seal/Waterproof "A" Frame Magnetic Circuit Breakers

Branch AC or DC circuit breaker for Paneltronics electrical distribution panels
Meets all American Boat and Yacht Council (ABYC) Standards for non ignition protected circuit breakers
UL Recognized (UL 1077) for use in the U.S.A., and CSA Certified for use in Canada
Trip free (ABYC E-11.10.1.5.4 and E-11.10.2.1.1)
Manual reset (ABYC E-11.10.1.5.6 and E-11.10.2.1.1)

Specifications :

Handle Color Metal with Silicon rubber seal
Maximum Amperage 50 Amps
Maximum Voltage /AIC 32 VDC/ 2,500 Amps with no Back-up Fuse (ABYC E-11.10.1.5.5)
Rated Switch Cycles Rated Switch Cycles 10,000 actuations at rated current and voltage
Electrical Hardware Screw 10-32 x 3/8" pan combo head (P/N 197-188)
Mounting Hardware Hex nut 1/2-32 (supplied with circuit breaker)
Lockwasher 1/2" internal tooth (supplied with circuit breaker)
Optional Boot Black silicone rubber (P/N 048-015)

Color = Stainless | Throw/Pole = SPST

Manufacturer Part Number: 206-052S

General Information

Manufacturer	Paneltronics
Manufacturer Part Number	206-052S
Product Type	Electrical \| Switches & Accessories
UPC	602290201411

Paneltronics Breaker 10 Amps A-Frame Magnetic Waterproof

Volume Purchases and Deal Registration

Description

Paneltronics Breaker 10 Amps A-Frame Magnetic Waterproof
