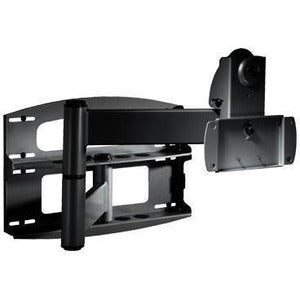

Peerless PLAV60 Articulating Arm with Vertical Adjustment
The PLA60 offers a single solution for displays up to 95" in a wide range of installations including lobbies, hotel rooms, boardrooms, public displays or home theaters. Its all-steel construction enables it to hold screens up to 175lb, while its self-lubricating bushings enable the arms to smoothly articulate and position your display for optimal viewing. Combined with adjustable tilt and pivot capabilities, the PLA60 is the only wall arm you need.
- Arm extends up to 32.37"(822mm) from wall
- Three pivot points with up to 180° swivel for versatile display positioning
- ±1" (24mm) vertical adjustment located within reach behind display with PLAV60 models
- Includes mesh cord sheath and cable ties to neatly manage cables
- +10/-5° of tilt
- ±7° of roll for post installation display leveling
- Five horizontal arm positions at 2.6" (66mm) centers for flexible lateral display placement
- Universal models adapt to displays with mounting hole patterns up to 730 x 433mm(28.75"W x 17.05"H)
Product Type: Mounting Arm
Product Color: Black
Product Material: Steel
Country Of Origin: United States
Brand Name: Peerless-AV
Compatibility:
Plasma and LCD Flat Panel Screens: 37" - 60"
Manufacturer: Peerless Industries, Inc
Product Model: PLAV60
Product Name: PLA Series Articulating Wall Arm For 37" to 95" Displays
Application/Usage: Wall
Manufacturer Part Number: PLAV60
Manufacturer Website Address: http://www.peerless-av.com
Packaged Quantity: 1
Package Contents:
- PLAV60-S Articulating Arm with Vertical Adjustment
- 1 x Wall plate
- 1 x Tilt-roll assembly
- 1 x Arm assembly
- 1 x Wall support arm axle
- 3 x Vinyl trim
- 8 x Screw bolt (M10 x 1.5 x 15 mm )
- 1 x Nylon washer (.505 x .75 x .062")
- 1 x Tilt adjustment knob
- 1 x Carriage bolt (3/8"-16 x 3.25" 1)
- 2 x Delrin washer (1.525 x 2 x .062" )
- 1 x Socket head cap screw (#8-32 x .375")
- 8 x Plastic finishing cap
- 1 x Holding pin
- 1 x Retainer plug
- 8 x Wood screw (5/16 x 3")
- 8 x Washer (.250 x 1 x .068")
- 1 x Allen wrench (9/64")
- 4 x Cable management clips
- 4 x Cable tie
- 1 x Polyester mesh sleeve (36")
- 1 x Allen wrench (6 mm)
- 1 x Allen wrench (10 mm)
Limited Warranty: 5 Year
Weight (Approximate): 32.10 lb
