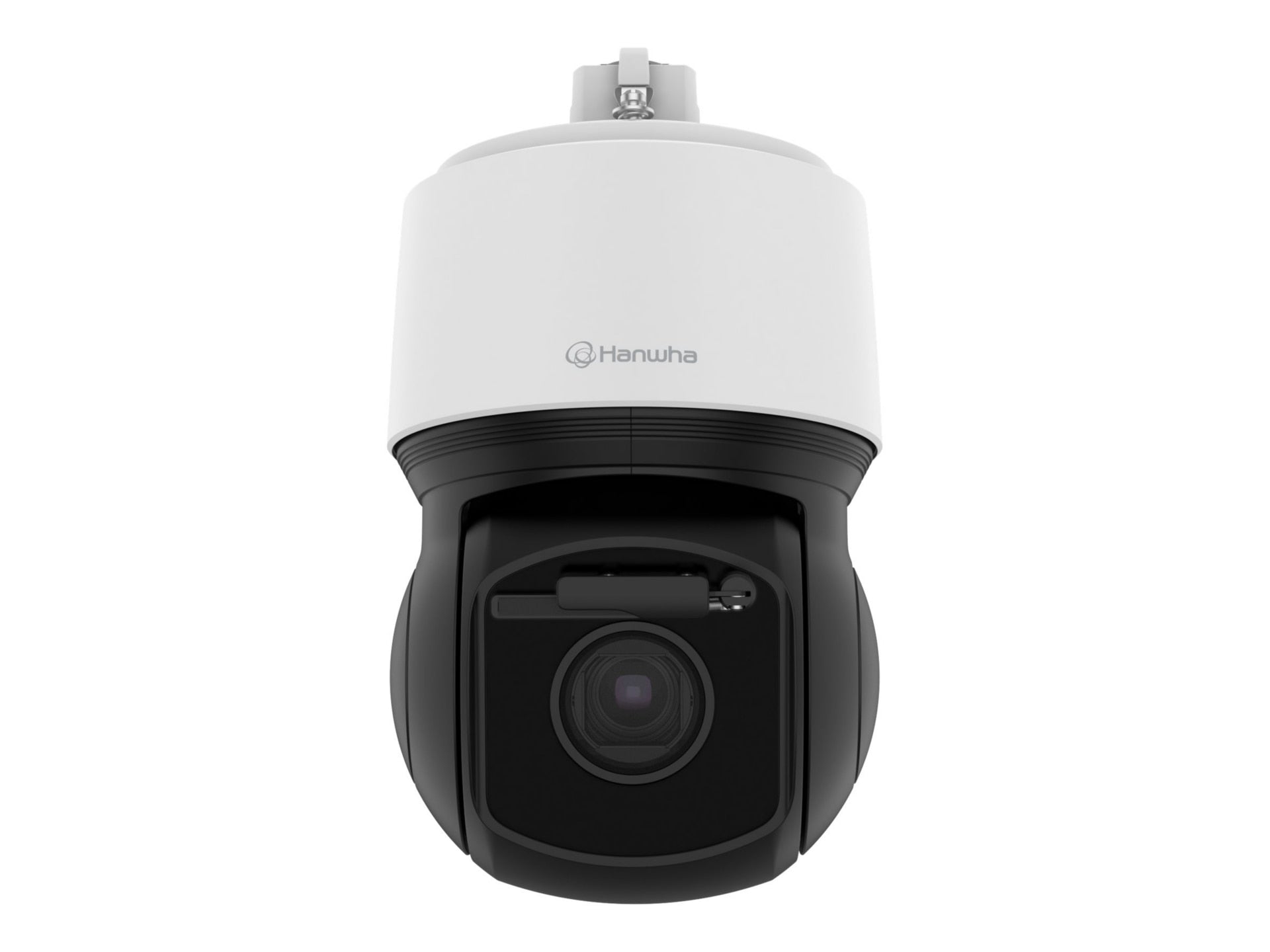

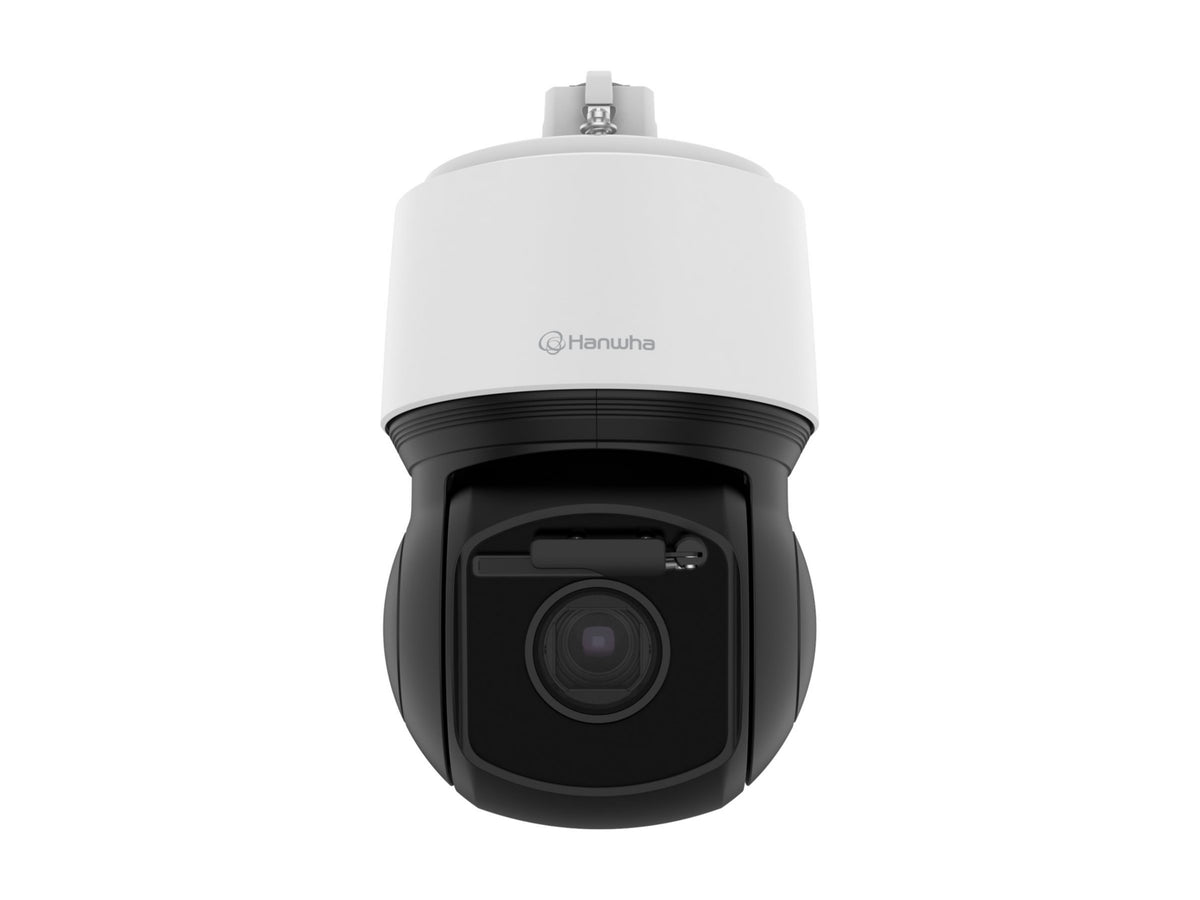

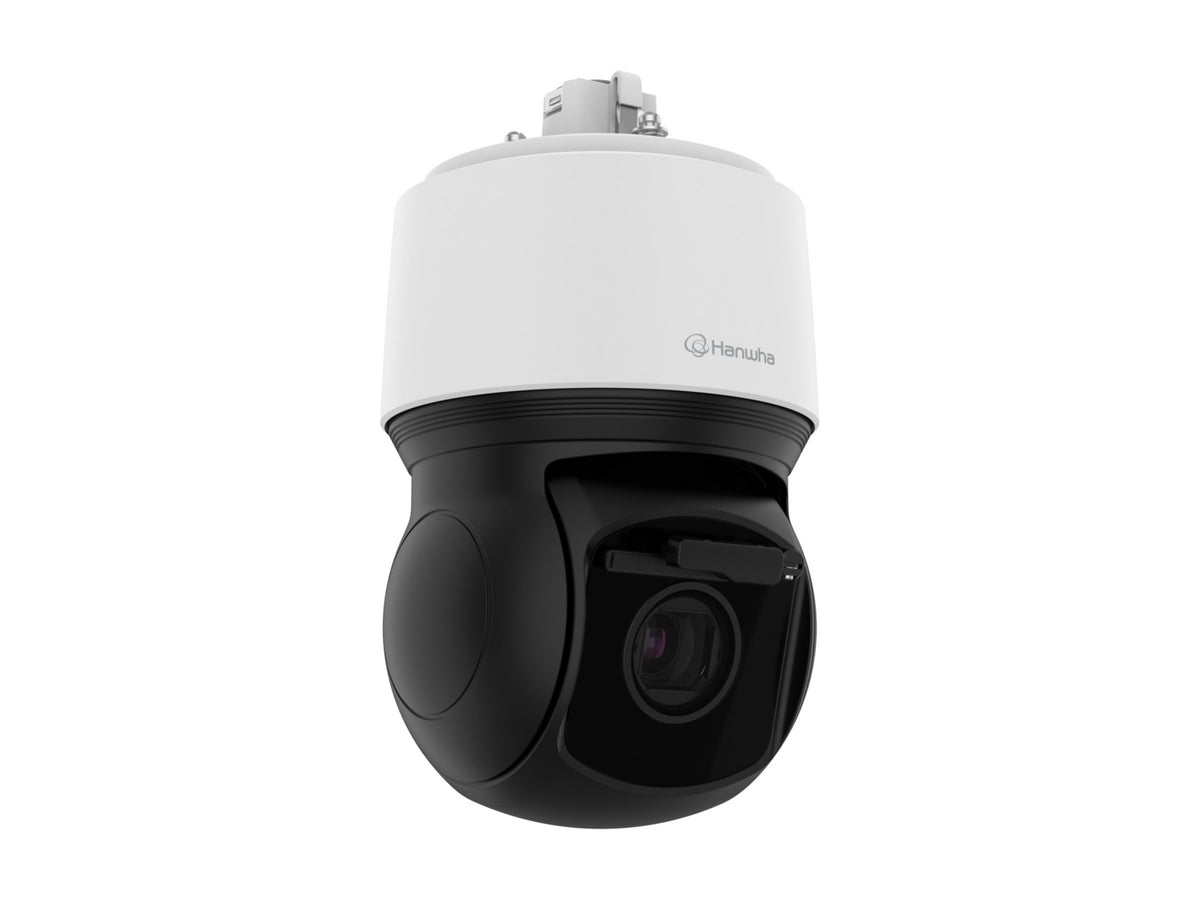

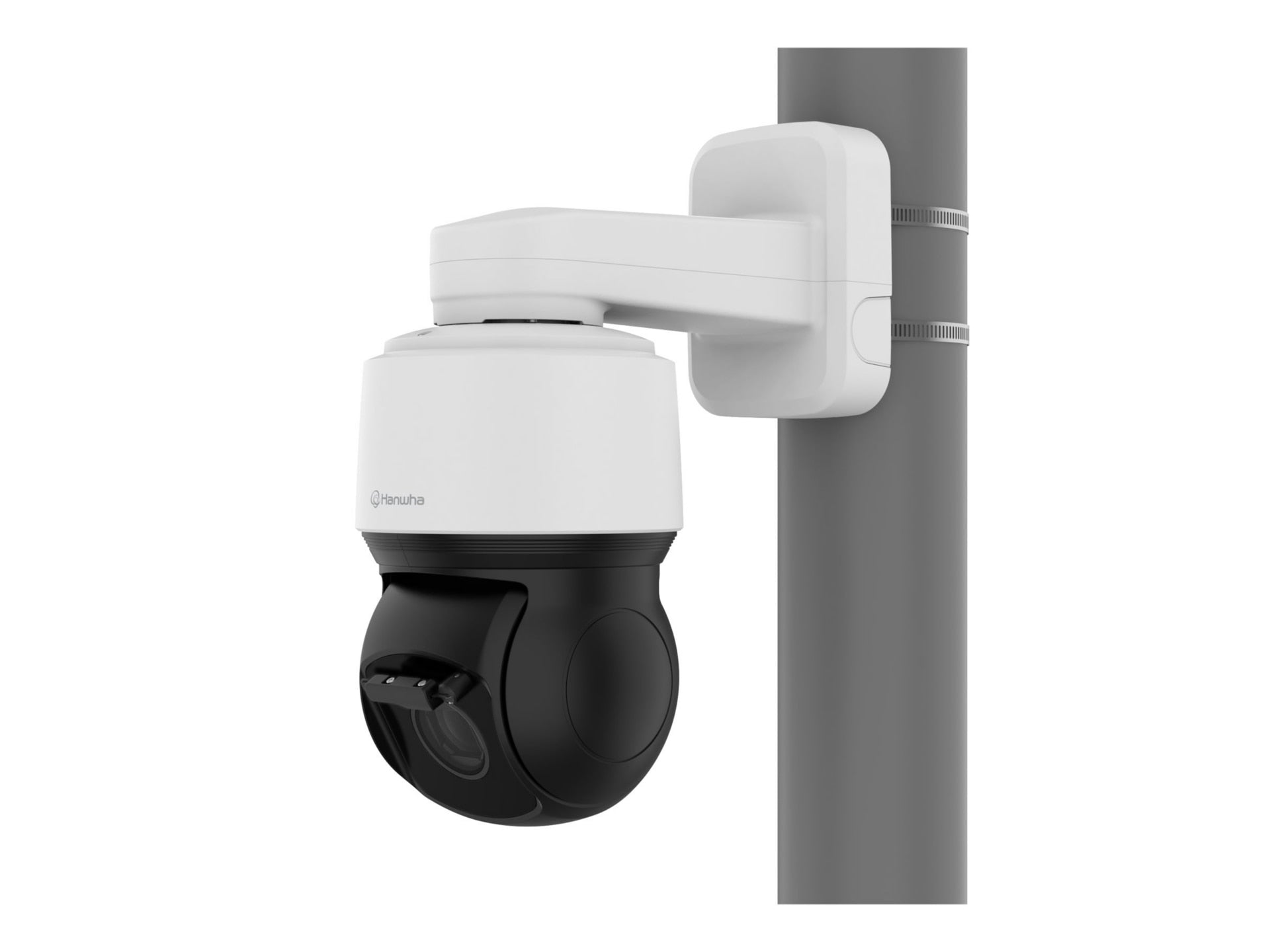

The HANWHA VISION POWERED BY WN7 PTZ PLUS AI camera is a professional outdoor surveillance solution that blends high-speed imaging with intelligent analytics. Built for demanding security environments, it delivers detailed monitoring from close-range to long-distance with AI-driven insights.
-
2MP @ 60FPS: High-definition video with smooth motion for reliable observation and identification.
-
40x Optical Zoom (4.25mm–170mm): Flexible coverage from wide areas to distant targets with precise framing.
-
AI Analytics on Board: Object detection (person, face, vehicle, license plate) plus IVA events to automate alerts and responses.
-
IVA and Tracking Features: Virtual line and area monitoring, loitering and intrusion alerts, direction detection, plus object auto-tracking and target lock tracking.
-
Advanced Imaging: Extreme WDR 150dB, true day/night ICR, and adaptive WISE IR with up to 200m reach for challenging lighting conditions.
-
Rugged Build: IP66 weatherproof, IK10 impact resistance, NEMA4X and NEMA-TS 2 compliant for outdoor reliability; lens heater and built-in wiper for all seasons.
-
Storage and Networking: Built-in SD card slot supporting up to 2x512GB; POE++/HPOE injector included for flexible, high-power networking.
-
Codex and Integration: H.265, H.264, MJPEG codecs; ONVIF compliant; compatible with I/O box SPM-4210 for expanded automation.
-
Operational Range: Designed to function from -40°C to +55°C (-40°F to +131°F) for extreme environments.
This camera empowers security teams with proactive monitoring and rapid incident response. The combination of a long-reaching zoom, robust image quality in difficult light, and AI-assisted analytics helps reduce false alarms, streamline investigations, and integrate smoothly with existing VMS and automated workflows. Its durable construction and flexible power/network options make it suitable for citations-sensitive outdoor installations like perimeters, campuses, industrial facilities, and transport hubs.
Specs
-
Resolution: 2MP @ 60FPS
-
Lens: 4.25mm to 170mm (40x) optical zoom
-
IR Range: Adaptive WISE IR up to 200m
-
WDR: Extreme 150dB
-
Day/Night: True Day & Night (ICR)
-
Weather/Protection: IP66, IK10, NEMA4X, NEMA-TS 2
-
Storage: Built-in microSD slot up to 2x512GB
-
Operating Temp: -40°C to +55°C (-40°F to +131°F)
-
Codecs: H.265, H.264, MJPEG
-
AI Features: Object detection (person/face/vehicle/license plate), IVA events, audio detection, sound classification, auto-tracking, target lock
-
Networking: POE++ / HPOE injector included, ONVIF compatible
-
Compatibility: SPM-4210 I/O box compatibility
FAQ
-
What is the maximum zoom capability? The camera offers a 40x optical zoom ranging from 4.25mm to 170mm.
-
Can this camera operate in harsh weather conditions? Yes. It is rated IP66, IK10, NEMA4X, with a lens heater and built-in wiper for all-weather performance.
-
Does it support intelligent video analytics? Yes. It includes AI-based object detection (person, face, vehicle, license plate), IVA events (virtual line/area, loitering, intrusion, direction), audio detection, and auto-tracking with target lock.
-
What storage options are available? It provides a built-in SD card slot supporting up to 2x512GB for local storage.
-
Is this camera compatible with standard network protocols? Yes. It is ONVIF-compatible and includes a POE++/HPOE injector for flexible networking, plus compatibility with the SPM-4210 I/O box for expanded automation.
