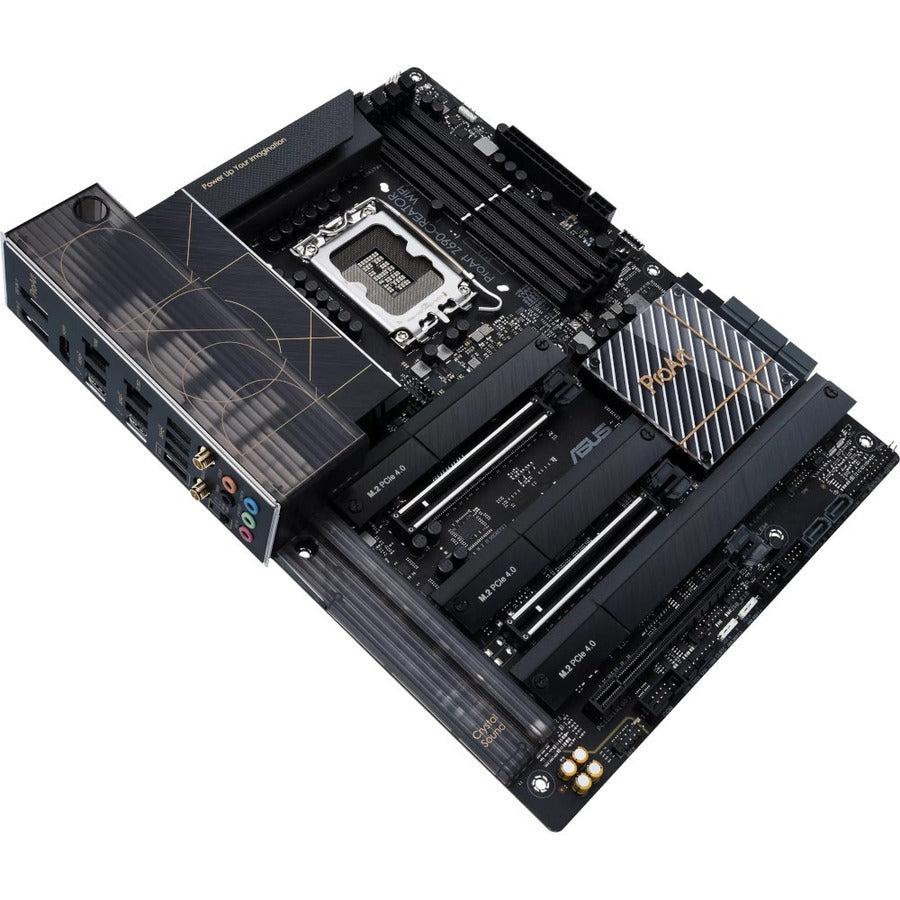

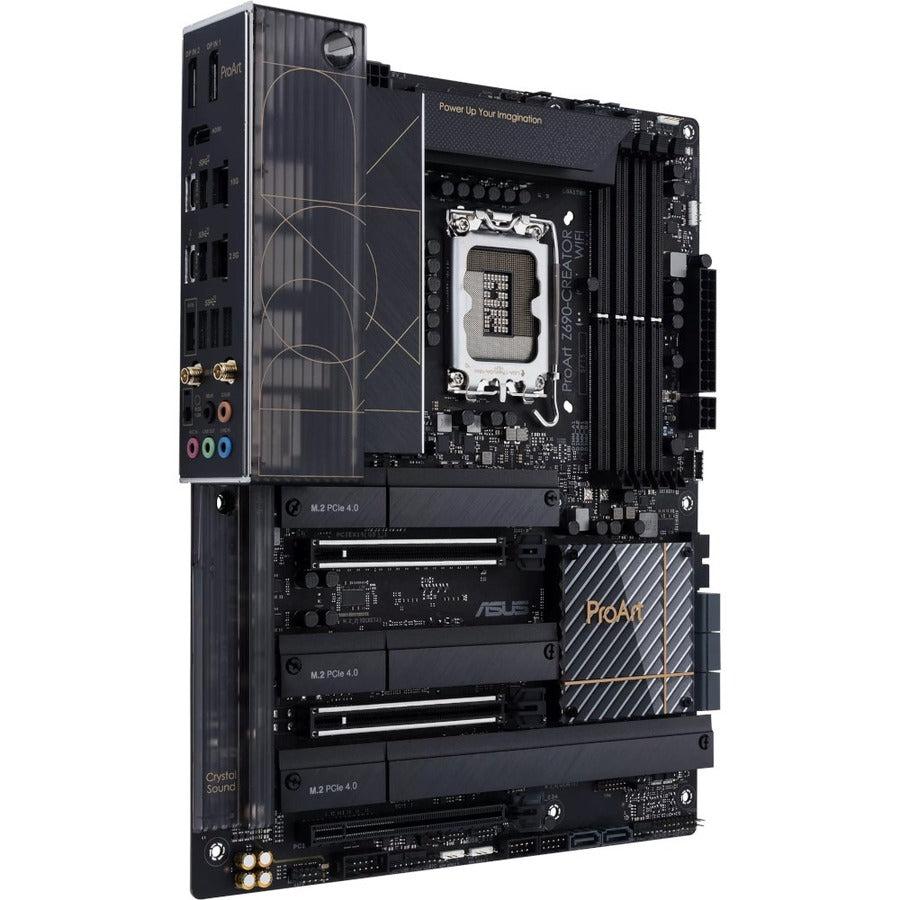

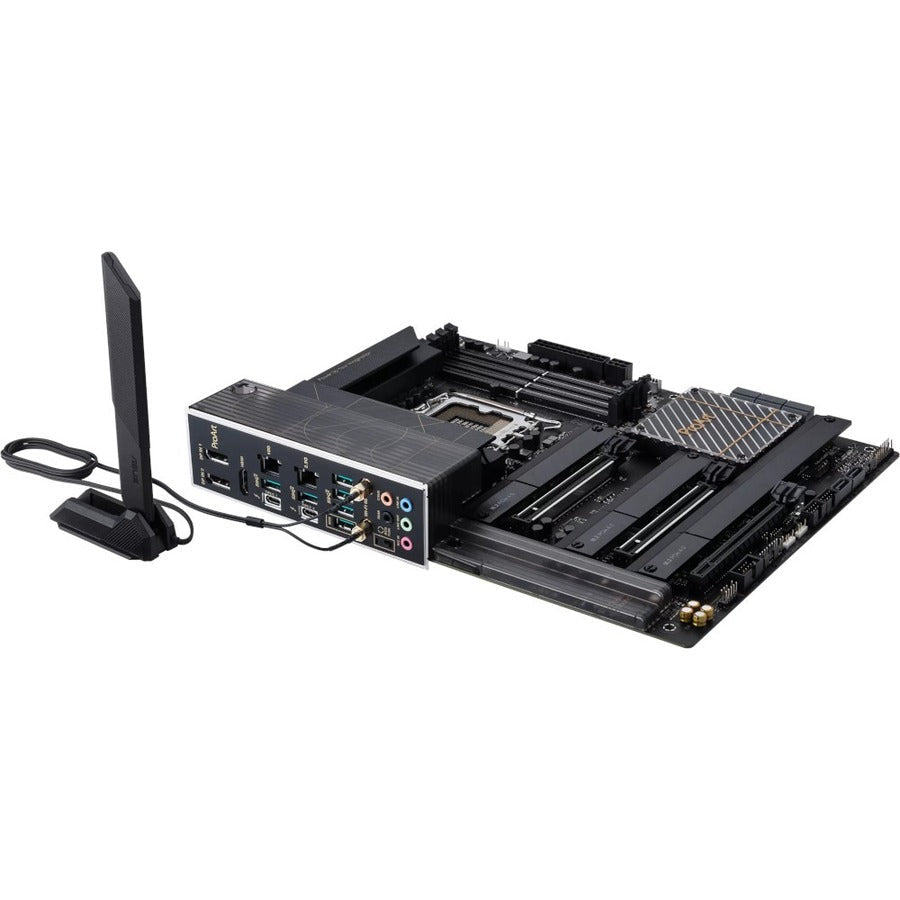

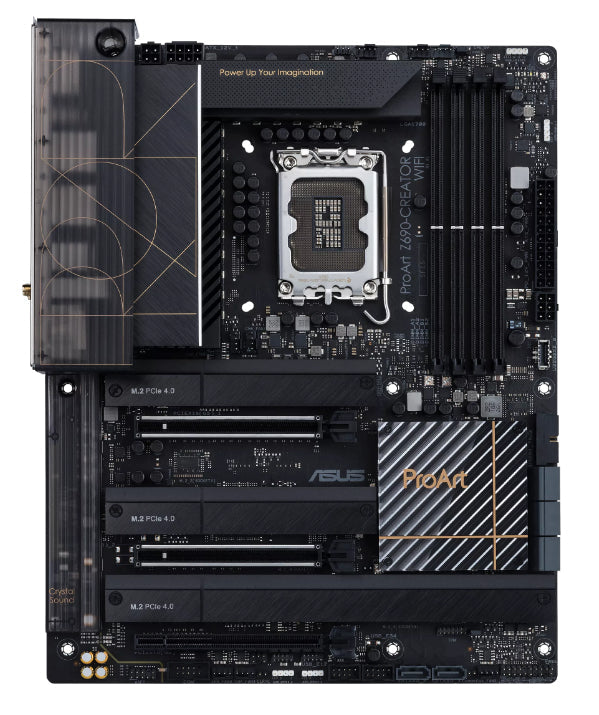

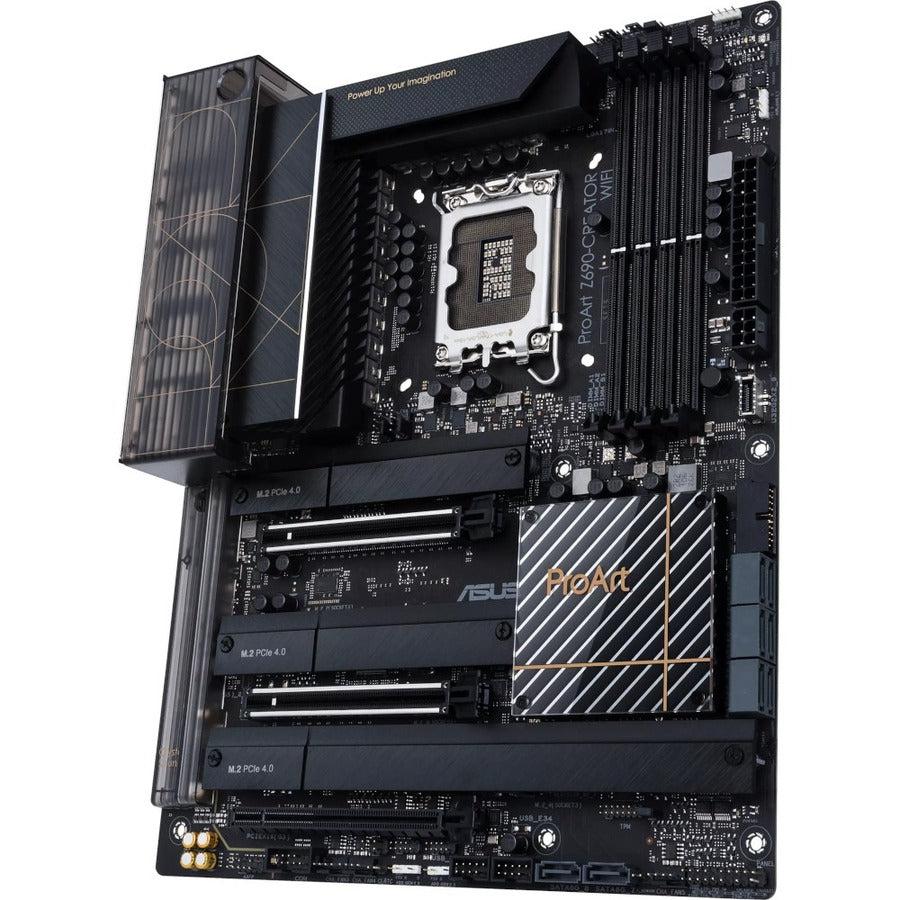

Asus ProArt Z690-CREATOR WIFI Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX
Intel® Z690 LGA 1700 ATX motherboard built for creators, with PCIe® 5.0, DDR5 support, Thunderbolt™ 4, 10 Gb and 2.5 Gb Ethernet, WiFi 6E, four PCIe 4.0 M.2 slots with heatsinks, plus a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+ support
- Intel® Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
-
Future-proofed connectivity: Two Thunderbolt™ 4 Type-C® ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, four PCIe® 4.0 M.2 slots and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+ -
Next-gen performance: 16+1 power stages rated for 70 amps, PCIe 5.0 ready, and a DDR5 speed boost -
Intelligent optimization: ASUS-exclusive software and firmware that simplify setup and improve performance: AI Overclocking, AI Cooling, CreationFirst and Two-Way AI Noise-Cancelation -
Comprehensive thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, seven 4-pin PWM fan headers and an AIO pump header -
Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express -
Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability
Your Powerhouse for Creativity
ProArt Z690-Creator WiFi empowers creators of all levels by maximizing the performance of 12th Gen Intel® Core™ processors with powerful hardware and software, efficient cooling and lightning-fast connectivity including Thunderbolt™ 4, onboard 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.
Future-Proofed Connectivity
A comprehensive array of powerful I/O ports - including two Thunderbolt™ 4 ports plus 10 Gb and 2.5 Gb Ethernet ports- enables quick data transfers and extensive storage options with flexible, hassle-free connectivity.
Next-Gen Performance
With tailored CPU power delivery and support for the latest high-performance memory, ProArt Z690-Creator WiFi easily handles the demands of the latest 12th Gen Intel® Core™ processors. It features an intelligent VRM design that's rated for 70 amps, plus carefully selected components and memory layout optimizations for multithreaded tasks such as 3D animation, video rendering and software compiling.
-
Teamed Power Stages 16+1 power stages rated for 70 amps combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest 12th Gen Intel Core processors demand.
-
Digi+ Power Control The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
-
ProCool II Power Connector The ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.
-
Chokes & Capacitors Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
Intelligent Optimization
ProArt Z690-Creator WiFi offers simple and flexible tools that enhance almost every aspect of your content-creation system, giving you the fast, intuitive control needed for efficient workflow. It features dynamic automated tuning with AI overclocking and AI cooling. In addition, CreationFirst software prioritizes and optimizes your network traffic for faster, lag-free online performance.
- Compatible Intel Core i7 processor provides lightning fast speed and peak performance, even for the toughest tasks and intensive games
- DDR5 SDRAM slot for convenient installation of memory
- Supported 0 RAID levels provide data reliability and fault tolerance
- Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11 a/b/g/n/ac/ax wireless standard support
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
Product Type: Desktop Motherboard
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Asus
Form Factor: ATX
Manufacturer: ASUS Computer International
Product Model: Z690-CREATOR WIFI
Product Name: ProArt Z690-CREATOR WIFI Desktop Motherboard
Product Line: ProArt
Manufacturer Part Number: PROARTZ690-CREATORWIFI
Manufacturer Website Address: http://usa.asus.com
Limited Warranty: 3 Year
