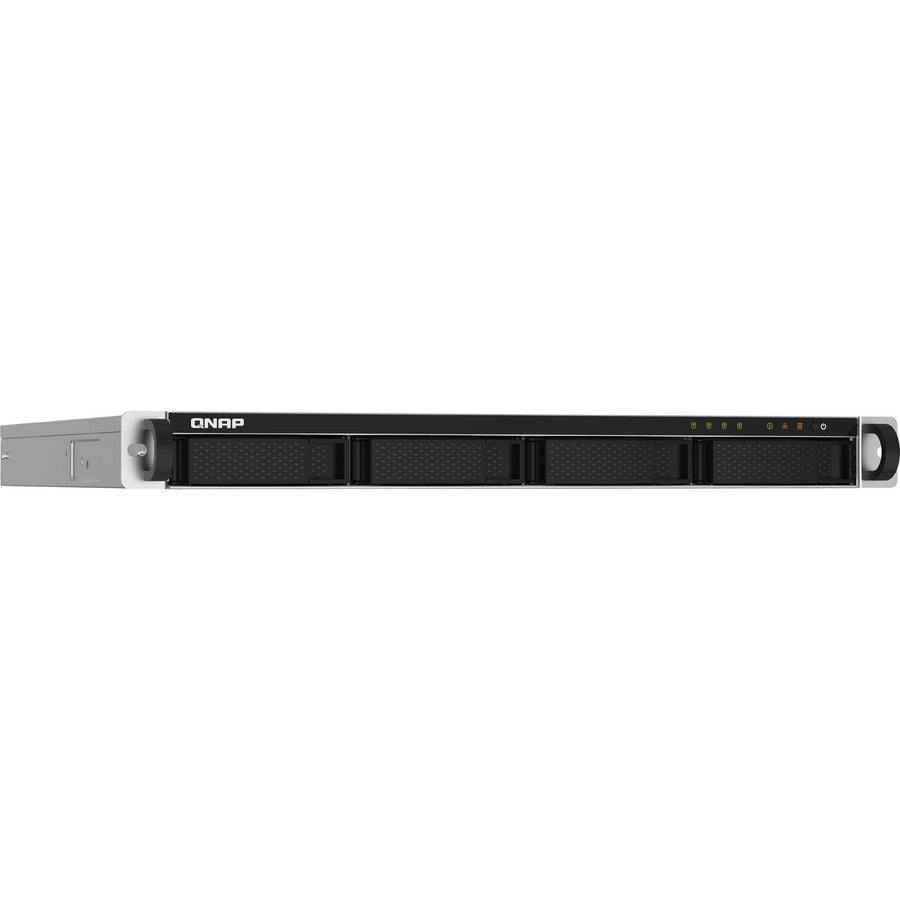

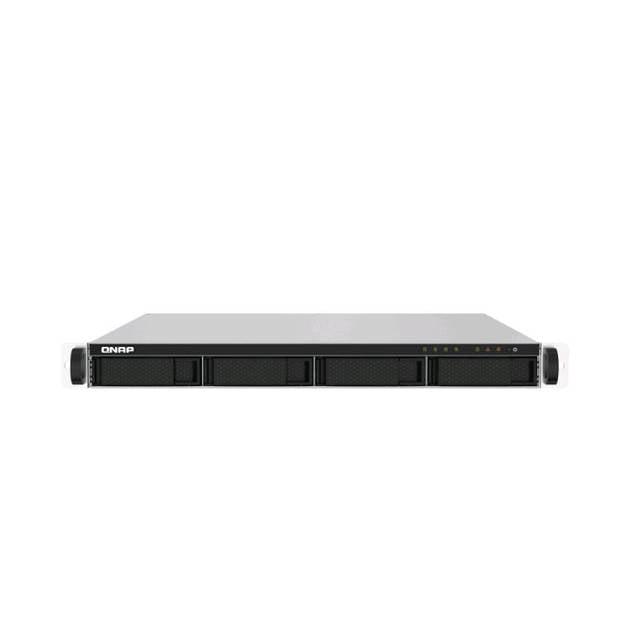

Name: QNAP TS-432PXU-RP-2G SAN/NAS Storage System TS-432PXU-RP-2G-US
Brand: QNAP
SKU: TS-432PXU-RP-2G-US
Price: 1044.90 USD
Availability: InStock

QNAP TS-432PXU-RP-2G SAN/NAS Storage System TS-432PXU-RP-2G-US

Roll over image to zoom in Click on image to zoom

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email [email protected].

Mfr Part Number: TS-432PXU-RP-2G-US
CPU: AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 quad-core 1.7GHz processor
CPU Architecture: 64-bit ARM
Floating Point Unit: Yes
Encryption Engine: Yes
System Memory: 2 GB UDIMM DDR4 (1 x 2 GB)
Maximum Memory: 16 GB (1 x 16 GB)
Memory Slot: 1 x Long-DIMM DDR4
Flash Memory: 512 MB (Dual boot OS protection)
Drive Bay: 4 x 3.5" SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch bays:
- 3.5-inch SATA hard disk drives
- 2.5-inch SATA hard disk drives
- 2.5-inch SATA solid state drives
Hot-swappable: Yes
M.2 SSD Slot: Optional via a PCIe adapter
SSD Cache Acceleration Support: Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (also support 10M)
10 Gigabit Ethernet Port: 2 x 10GbE SFP+
Wake on LAN (WOL): Yes, Only the 2.5GbE port
Jumbo Frame: Yes
PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
  - PCIe bandwidth limitations will restrict the NAS 10GbE performance
USB 3.2 Gen 1 port: 4
Form Factor: 1U Rackmount
LED Indicators: HDD 1-4, Status, LAN, Storage expansion
Buttons: Power, Reset
Operating temperature: 0 - 40 C (32F - 104F)
Storage Temperature: -20 - 70C (-4F - 158F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27C (80.6F)
Power Supply Unit: 250W (x2) PSU, 100 - 240V
Power Consumption: Operating Mode, Typical: 53.343 W. Tested with drives fully populated
Fan: 2 x 40mm, 12VDC
Sound Level: 39 db(A)
System Warning: Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 700
Dimensions (HxWxD): 1.73 17.28 19.65 inch
Weight: 17.9 lbs

General Information

Manufacturer	QNAP Systems
Manufacturer Part Number	TS-432PXU-RP-2G-US
Manufacturer Website Address	http://www.qnap.com
Brand Name	QNAP
Product Series	TS-x32PXU
Product Model	TS-432PXU-RP-2G
Product Name	TS-432PXU-RP-2G SAN/NAS Storage System
Product Type	SAN/NAS Storage System
UPC	885022020188

Processor

Processor Manufacturer	Annapurna Labs
Processor Type	Alpine
Processor Model	AL-324
Processor Core	Quad-core (4 Core)
Processor Speed	1.70 GHz

Ethernet Technology	10 Gigabit Ethernet

Total Number of USB Ports	4
Number of USB 3.2 Gen 1 Ports	4
Network (RJ-45)	Yes

Power Description

Maximum Power Supply Wattage	250 W

Height	1.7"
Width	17.3"
Depth	19.6"
Weight (Approximate)	17.90 lb

Miscellaneous

Package Contents	TS-432PXU-RP-2G SAN/NAS Storage System 1 x Ethernet Cable 2 x Power Cords 16 x Flat Head Screws (for 3.5" HDD) 12 x Flat head Screws (for 2.5" HDD) Quick Installation Guide (QIG)

Warranty

Limited Warranty	2 Year
