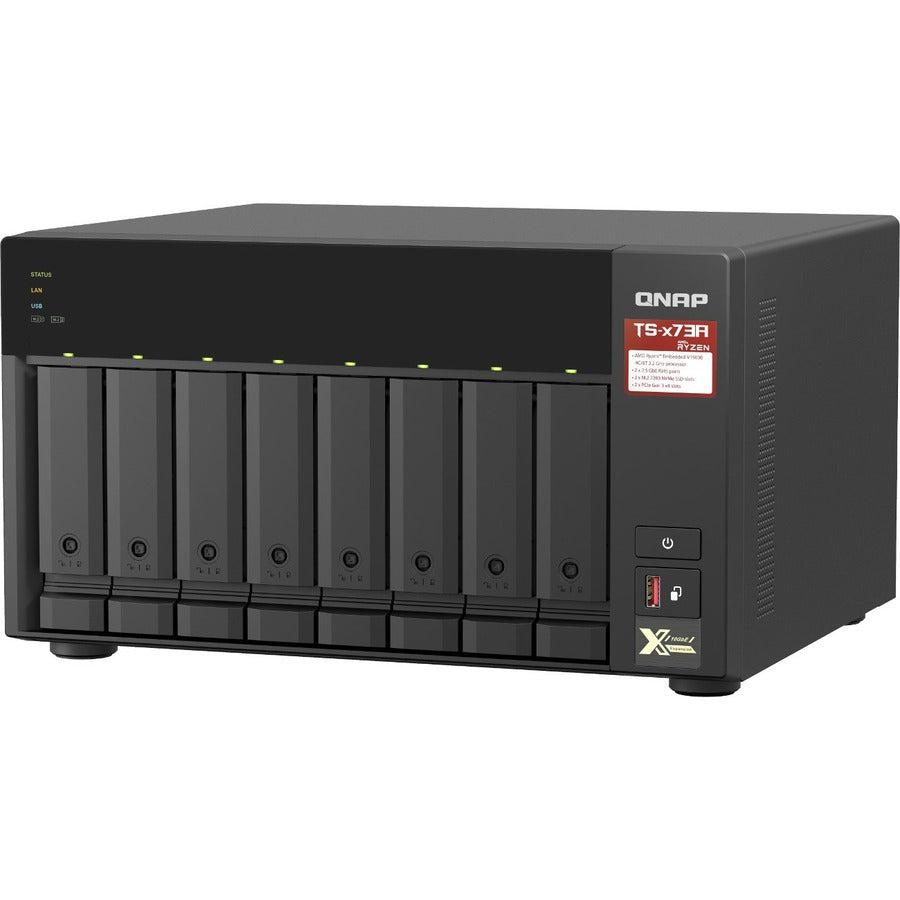

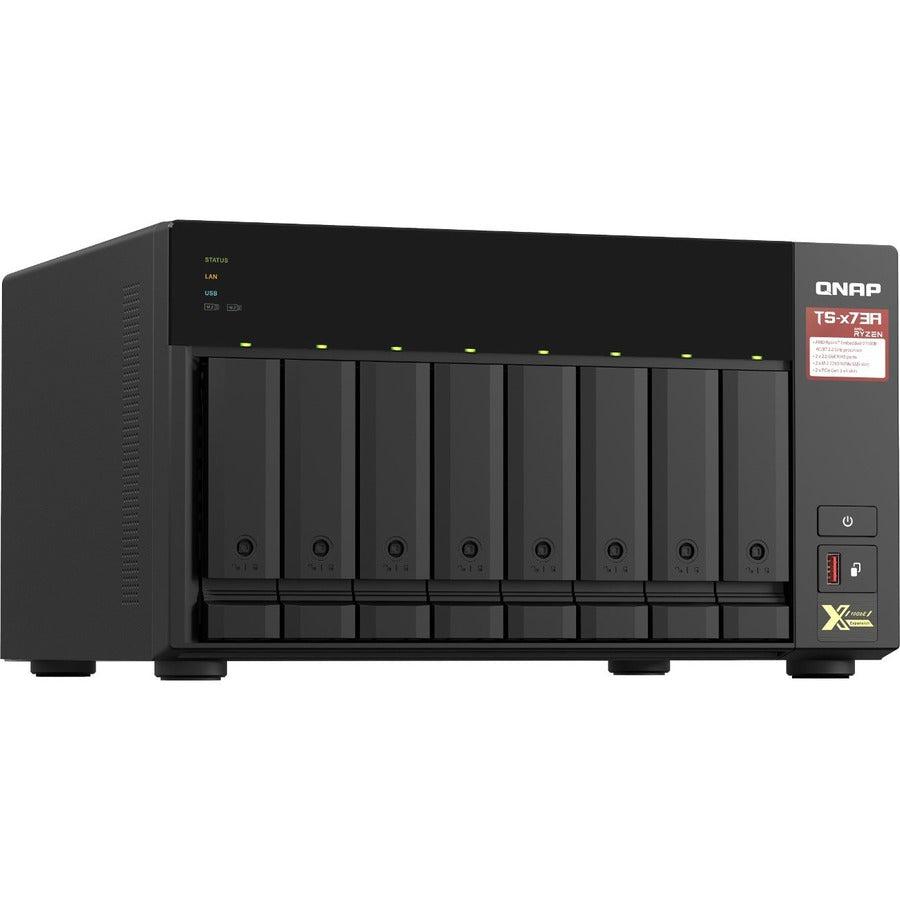

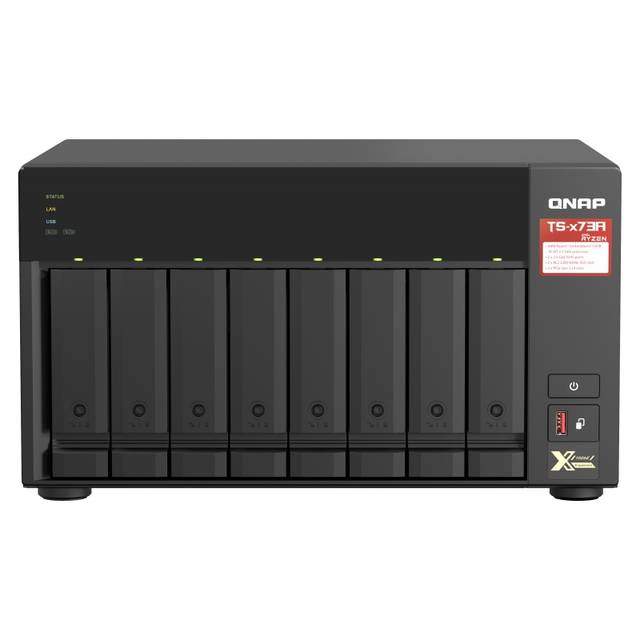

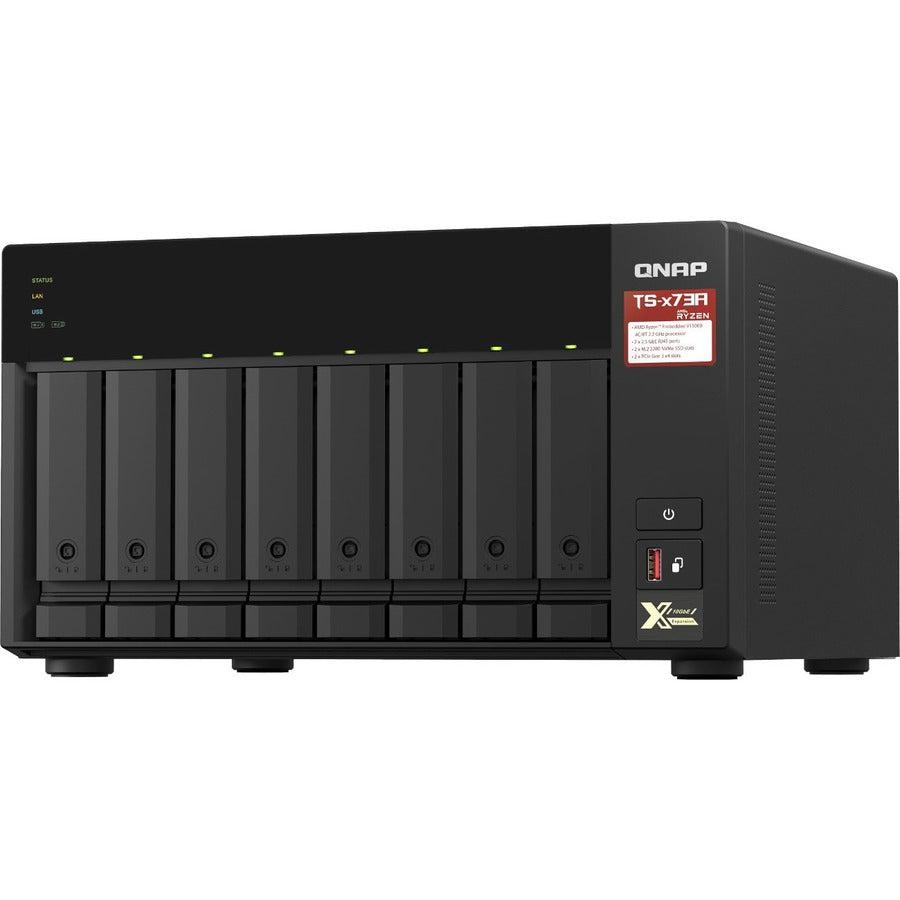

Name: Qnap Ts-873A-8G-Us Amd Ryzen Embedded V1500B 2.2Ghz/ 8Gb Ddr4/ 8-Bay Nas Supports M.2 Nvme Ssd And Pcie Expansion
Brand: QNAP
SKU: TS-873A-8G-US
Price: 1167.37 USD
Availability: InStock

Qnap Ts-873A-8G-Us Amd Ryzen Embedded V1500B 2.2Ghz/ 8Gb Ddr4/ 8-Bay Nas Supports M.2 Nvme Ssd And Pcie Expansion

Roll over image to zoom in Click on image to zoom

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email [email protected].

Mfr Part Number: TS-873A-8G-US
Hardware:
- CPU: AMD Ryzen Embedded V1500B quad-core 2.2 GHz processor
- CPU Architecture: 64-bit x86
- Graphic Processors: Optional via a PCIe adapter
- Floating Point Unit: Yes
- Encryption Engine: AES-NI
- Hardware-accelerated Transcoding: Optional via a PCIe adapter
- System Memory: 8 GB SO-DIMM DDR4 (1 x 8 GB)
- Maximum Memory: 64 GB (2 x 32 GB)
- Memory Slot: 2 x SO-DIMM DDR4, Support ECC memory
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
- Hot-swappable: Yes
- M.2 SSD Slot: 2 x M.2 2280 PCIe Gen3 x1 slots(The M.2 SSD is not included as standard. M.2 SSD operations can easily generate excessive heat. )
- SSD Cache Acceleration Support: Yes
- LAN Port:
  - 2 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M)
  - 5 Gigabit Ethernet Port (5G/2.5G/1G/100M): Optional via a PCIe adapter
  - 10 Gigabit Ethernet Port: Optional via a PCIe adapter
- Wake on LAN (WOL): Yes
- Jumbo Frame: Yes
- PCIe Slot: 2

  - Slot 1: PCIe Gen 3 x4

  - Slot 2: PCIe Gen 3 x4
- USB 3.2 Gen 2 (10Gbps) Port: 3 x Type-A USB 3.2 Gen 2 10Gbps, 1 x Type-C USB 3.2 Gen 1 5Gbps
- IR Sensor: Yes (QNAP RM-IR004)
- HDMI Output: Optional via a PCIe adapter
- LED Indicators: Status/Power, USB, LAN, Drive 1-8, M.2 SSD 1-2
- Buttons: Power, Reset, USB Auto Copy
- Operating temperature: 0 - 40 C (32F - 104F)
- Storage Temperature: -20 - 70C (-4F - 158F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27C (80.6F)
- Sound Level: 23 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 2000
Operating System: QTS 4.5.2 (embedded Linux)
Supported File Systems:
- Internal hard drive (EXT4)
- External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT)
Network & Virtual Switch:
- TCP/IP: Dual stack (IPv4 and IPv6)
- Jumbo frame
- Port trunking (Link aggregation)

  - Failover

  - Load balancing
- DHCP server and client
- RADVD
- USB Wi-Fi adapter
- Virtual switch

  - Network Address Translation (NAT)

  - Spanning Tree Protocol (STP)

  - Software-Defined Switch mode
- Static Route
- NCSI (Network Connectivity Status Indicator)
- DDNS settings (Customize & Multiple Service )
Security:
- Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
- Host access control for shared folders (CIFS/SMB)
- AES 256-bit folder-based and volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
- AES 256-bit volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
- 256-bit external drive encryption (AES)
- Importing of SSL certificates from Lets Encrypt
- Instant alerts through email, SMS, and push service
- 2-step verification
Storage Management:
- Supported RAID types

  - RAID 0, 1, 5, 6, 10, 50, 60, JBOD, Single
- RAID Hot Spare and Global Hot Spare
- RAID Rebuild Speed Customization
- Online RAID capacity expansion
- Online RAID level migration
- SSD RAID Over-provisioning
- SSD RAID Performance evaluation (with SSD Profiling Tool)
- SSD TRIM for RAID 0,1,10
- Bitmap support
- Disk auto S.M.A.R.T. data migration
- Disk bad block scan and S.M.A.R.T test
- Disk bad block recovery
- Disk secure data erase
- Ironwolf Health Management
- Storage pools

  - The maximum single storage pool size is 308 TB

  - The maximum storage pool number is 128
- Qtier Data Tiering Technology

  - Automatic or scheduled data tiering

  - IO-aware auto tiering

  - Shared folder tiering on demand
- Flexible volumes and LUNs with thin provisioning and space reclaiming

  - The maximum single volume capacity is 250 TB

  - The maximum volume number is 128
- Online volume expansion
- Volume type conversion
- Volume shrink
- Storage space utilization
- Snapshots

  - Volume and LUN snapshots

  - Snapshot Dashboard

  - Snapshot Manager

  - Snapshot local restore and revert

  - Snapshot Clone

  - Snapshot Replica and Snapshot Vault

  - Snapshot remote restore and revert

  - Unified Snapshot Directory

  - Support for Windows Previous Versions (CIFS/SMB)

  - Snapshot Agent for Microsoft Windows and VMware vSphere

  - The maximum number of snapshots varies depending on installed memory.
- Storage expansion using QNAP expansion units
- JBOD enclosure roaming
- SSD read-only and read-write cache
- SSD write-only cache
- SSD Cache supports Single, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 configuration. The maximum cache size depends on installed memory. Cache capacity and RAM requirement

  - 512GB 1GB, 1TB 4GB, 2TB 8GB, 4TB 16GB
Form Factor: Tower
Power Supply Unit: 250W, 100-240V AC, 50-60Hz, 3.5A
Power Consumption-HDD Sleep Mode: 25.668 W
Power Consumption-Operating Mode, Typical: 54.067 W
Fan:
- System fan: 2 x 120mm
- CPU fan: 1 x 60mm
Dimensions (HxWxD): 7.41 12.96 11.06 inch
Weight (Net): 14.9 lbs

General Information

Manufacturer	QNAP Systems
Manufacturer Part Number	TS-873A-8G-US
Manufacturer Website Address	http://www.qnap.com
Brand Name	QNAP
Product Series	TS-x73A
Product Model	TS-873A-8G
Product Name	TS-873A-8G NAS Storage System
Product Type	NAS Storage System
UPC	885022020911

Processor

Processor Manufacturer	AMD
Processor Type	Ryzen
Processor Model	V1500B
Processor Core	Quad-core (4 Core)
Processor Speed	2.20 GHz

Ethernet Technology	2.5 Gigabit Ethernet

Total Number of USB Ports	4
Number of USB 3.2 Gen 1 Ports	1
Network (RJ-45)	Yes

Operating System	QTS/QuTS hero

Power Description

Maximum Power Supply Wattage	250 W

Height	7.4"
Width	13"
Depth	11.1"
Weight (Approximate)	14.90 lb

Miscellaneous

Package Contents	TS-873A-8G NAS Storage System 1 x Ethernet Cable 1 x Power Cord 24 x Flat Head Screws (for 3.5" HDD) 24 x Flat Head Screws (for 2.5" HDD) 2 x M.2 SSD Heatsinks 2 x Drive Tray Keys Quick Installation Guide (QIG)

Warranty

Limited Warranty	3 Year
