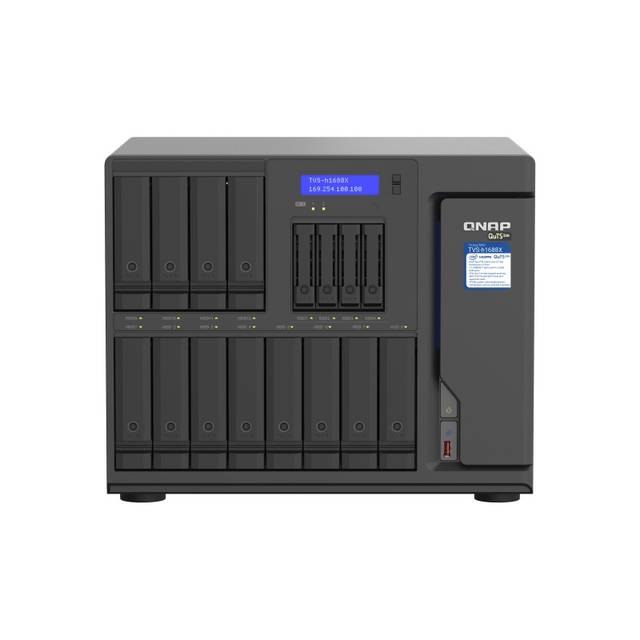

Name: Qnap Tvs-H1688X-W1250-32G-Us Intel Xeon W-1250 3.3Ghz/ 32Gb Ddr4/ Usb3.2/ 16-Bay Desktop Quts Hero Nas
Brand: QNAP
SKU: TVS-H1688X-W1250-32G-US
Price: 5815.44 USD
Availability: OutOfStock

Qnap Tvs-H1688X-W1250-32G-Us Intel Xeon W-1250 3.3Ghz/ 32Gb Ddr4/ Usb3.2/ 16-Bay Desktop Quts Hero Nas

Roll over image to zoom in Click on image to zoom

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email sales@tecisoft.com.

Mfr Part Number: TVS-H1688X-W1250-32G-US
Hardware:
- CPU: Intel Xeon W-1250 6-core 3.3 GHz processor (boost up to 4.7 GHz)
- CPU Architecture: 64-bit x86
- Graphic Processors: Intel UHD Graphics P630
- Floating Point Unit: Yes
- Encryption Engine: Yes (AES-NI)
- Hardware-accelerated Transcoding: Yes
- System Memory: 32GB ECC UDIMM DDR4 (2 x 16 GB)
- Maximum Memory: 128 GB (4 x 32 GB)
- Memory Slots: 4 x Long-DIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s. The system is shipped without HDD.
- Drive Compatibility:
  - 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  - 2.5-inch bays: 2.5-inch SATA solid state drives
- Hot-swappable: Yes
- M.2 SSD Slot: 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots
- SSD Cache Acceleration Support: Yes
- LAN Port:
  - 2.5 Gigabit Ethernet Port (2.5G/1G/100M): 4 (also support 10M)
  - 5 Gigabit Ethernet Port (5G/2.5G/1G/100M): Optional via an adapter
  - 10 Gigabit Ethernet Port: 2 x 10GBASE-T (10G/1G)
  - 25 Gigabit Ethernet Port: Optional via an adapter
- Wake on LAN (WOL): Yes
- Jumbo Frame: Yes
- Thunderbolt Port: Optional via the QXP-T32P 2-port Thunderbolt 3 PCIe adapter
- PCIe Slot: 3
  - Slot 1: PCIe Gen3 x8
  - Slot 2: PCIe Gen3 x4

  - Slot 3: PCIe Gen3 x4

  - Slot 1 is preinstalled with a 2-port 10GbE network adapter.
- USB 3.2 Gen 2 (10Gbps) Port: 2 x Type-C, 4 x Type-A
- HDMI Output: 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz)
- LED Indicators: System status, LAN, USB, Disk 1~16, M.2 SSD 1~2
- LCD Display/ Button: Yes
- Buttons: Power, Reset, USB Auto Copy
- Operating Temperature: 0 - 40C (32F - 104F)
- Storage Temperature: -20 - 70C (-4F - 158F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27C (80.6F)
- Sound Level: 25.8 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 10000
Operating System: QuTS hero 4.5.0 (embedded Linux)
Supported File Systems:
- Internal hard drive (ZFS)
- External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT)
Network & Virtual Switch:
- TCP/IP: Dual stack (IPv4 and IPv6)
- Jumbo frame
- DHCP server and client
- RADVD
- USB Wi-Fi adapter
- Static Route
- NCSI (Network Connectivity Status Indicator)
- DDNS settings (Customize & Multiple Service )
- Port trunking (Link aggregation, supports 7 modes)
  - failover
  - Load balancing
- Virtual switch
  - Network Address Translation (NAT)
  - Spanning Tree Protocol (STP)
  - Thunderbolt to Ethernet converter (T2E)
  - Software-Defined Switch mode
Security:
- Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
- Host access control for shared folders (CIFS/SMB)
- AES 256-bit folder-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
- 256-bit external drive encryption (AES)
- Importing of SSL certificates from Lets Encrypt
- Instant alerts through email, SMS, push service, audio, and LCD panel
- 2-step verification
Storage Management:
- RAID Hot Spare and Global Hot Spare
- RAID Rebuild Speed Customization
- Pool Over-provisioning
- SSD TRIM
- Disk auto S.M.A.R.T. data migration
- Disk bad block scan and S.M.A.R.T test
- Disk bad block recovery
- Disk secure data erase
- Ironwolf Health Management
- Checksum for end-to-end data integrity
- Silence error detection and self-healing
- Pool scrub for data verification
- Share folder quota management
- Online share expansion
- Share type conversion
- Share shrink
- Inline deduplication for shared folder/LUN
- Inline compression for shared folder/LUN
- WORM (Write Once Read Many) for shared folder
- Storage expansion using QNAP expansion units
- JBOD enclosure roaming
- SSD read-only cache
- SSD read cache and write log
- Supported RAID types
  - Storage pool with RAID 0, 1, 5, 6, 10, 50, 60, Triple Parity, Triple Mirror
- Storage pools

  - The maximum single storage pool size is 1 PB

  - The maximum storage pool number is 128
- Storage space utilization

  - The maximum single shared folder/ LUN capacity is 1 PB

  - The maximum shared folder number is 256
- Snapshots

  - Share and LUN snapshots

  - Snapshot Dashboard

  - Snapshot Manager

  - Snapshot local restore and revert

  - Snapshot Clone

  - Snapshot Replica and Snapshot Vault

  - Snapshot remote restore and revert

  - Unified Snapshot Directory

  - Support for Windows Previous Versions (CIFS/SMB)

  - Snapshot Agent for Microsoft Windows and VMware vSphere

  - The maximum number of system snapshots is 65,536

  - The minimum Snapshot Interval is 1 min
Form Factor: Tower
Power Supply Unit: 550W PSU, 100~240V
Power Consumption-HDD Sleep Mode: 91.26 W
Power Consumption-Operating Mode, Typical: 108.67 W
Fan:
- System fan: 3 x 80mm, 12VDC
- CPU fan: 2 x 97mm, 12VDC
Dimensions (HxWxD): 11.96 14.56 12.59 inch
Weight (Net): 29.56 lbs

General Information

UPC	885022020423
