Description
6xC19, 380-415V, 50/60Hz, 32A, 440x183x44mm, 7.6kg, Black
Raritan PX3-4104R-V2. PDU types: Metered, Monitored, Rack capacity: 1U, Type: Three-phase. AC outlets quantity: 6 AC outlet(s), AC outlet types: C19 coupler, Power plug: IEC 60309. Cable length: 3 m, Security algorithms: HTTPS,SNMPv3,SSH, Certification: CE, ICES-003, FCC. Nominal input voltage: 380-415 V, Maximum current: 32 A, AC input frequency: 50/60 Hz. Width: 440 mm, Depth: 183 mm, Height: 44 mm

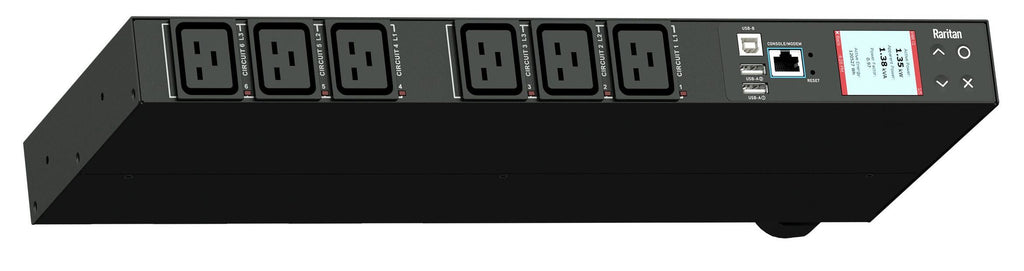

PX3-4104R-V2
Monitored rack power distribution unit (1U [horizontal], 22.2kVA, 6 outlets). INPUT: 400v (3-phase WYE), 32a - IEC 60309 3P+N+E 6h 32A plug (4P5W); OUTPUT: 6@ C19 outlets; on 6@ 1-pole, 16a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse, per outlet; Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation; 10/100 Ethernet port. Tri-color status LED per receptacle. Breaker metering and alarming (0V detection). Max Dimensions 440mm x 183mm x 44mm (17.3in x 7.2in x 1.7in). Max Weight 7.6 kg. Maximum ambient temperature 60C at full load.
