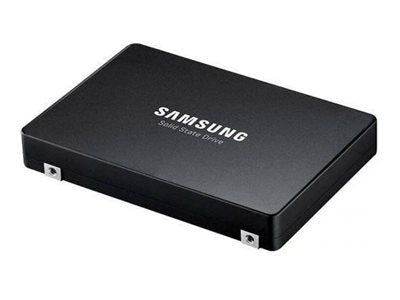

Samsung PM1743 MZWLO1T9HCJR - SSD - encrypted - 1.92 TB - internal - 2.5 - PCI Express 5.0 x4 (NVMe) - 256-bit AES-XTS - TCG Opal Encryption 2.0"
- PCI Express Gen.4/Gen.5
- Single port x4 lanes
- Enhanced power-loss data protection
- LDPC ECC
- End-to-end data protection
- Hardware based AES-XTS 256-bit encryption engine
- RoHS/Halogen-free compliant
- TCG Opal 2.0 compliant
- Static and dynamic wear leveling
- OCP 2.0 compliant
The Samsung SSD PM1743 is a native-PCIe SSD for enterprise application. The Samsung SSD PM1743 presents outstanding performance with instant responsiveness to the host system, by applying the Peripheral Component Interconnect Express (PCIe) 5.0 interface standard, as well as highly efficient Non-Volatile Memory Express (NVMeTM) Protocol.
The Samsung SSD PM1743 delivers wide bandwidth of (14GB/s) for sequential read speed and (7.1 GB/s) for sequential write speed under 25W power. By combining the enhanced reliability Samsung NAND Flash memory silicon with NAND Flash management technologies, the Samsung SSD PM1743 delivers the extended endurance of up to 1 Drive Writes Per Day (DWPD) for 5 years, which is suitable for enterprise applications, in one 2.5-inch form factor.
In addition, the Samsung SSD PM1743 supports Hot Plug insertion and removal feature by employing the efficient circuitry for Power Loss Protection (PLP) and handling inrush current. PLP solution can guarantee that data issued by the host system are written to the storage media without any loss in the event of sudden power off or sudden power failure. Inrush current handler can protect the internal components from the electrical and physical damages.
