Name: Schaefer Series 3 Flat Base/Alum Cheek/Delrin Sheave
Brand: Schaefer Marine
SKU: 74707-cwr
Price: 88.33 USD
Availability: InStock

Schaefer Series 3 Flat Base/Alum Cheek/Delrin Sheave

Roll over image to zoom in Click on image to zoom

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email [email protected].

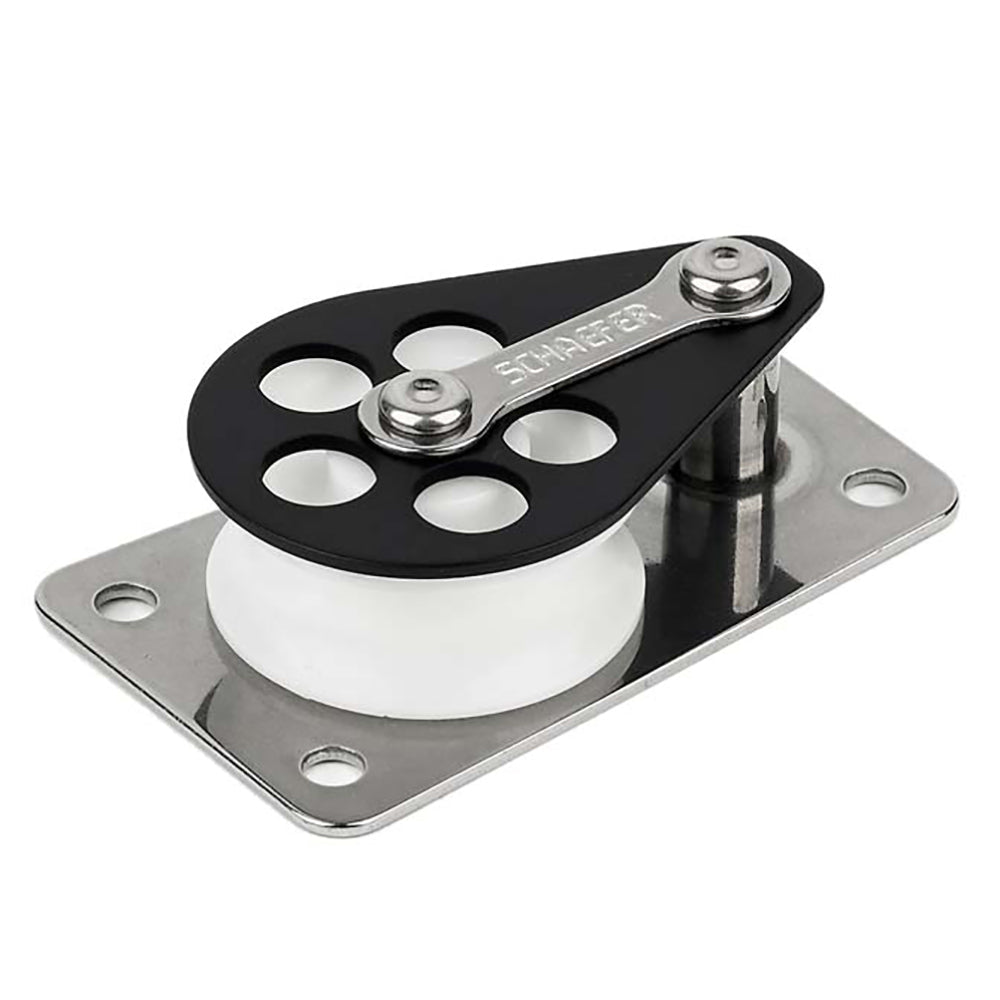

Series 3 Flat Base/Alum Cheek/Delrin Sheave

Delrin™ plain bearing sheave ensures smooth operation and high safe working load. Stainless Steel base distributes loads to a larger surface area.

Specifications:

Sheave Dia. 1-7/16" (37 mm)
Max Line 7/16" (11 m)
Length 2-7/8" (73 mm)
Width 1-3/4" (44 mm)
Height 3/4" (19 mm)
Fasteners (4) #10- RH (5 mm)
C/C 2-3/8" (60 mm)
SWL 1000 lbs. (450 kg)
Weight Alum. 2.5 oz. (71 g)

Manufacturer Part Number: 303-09

General Information

Manufacturer	Schaefer Marine
Manufacturer Part Number	303-09
Product Type	Sailing \| Blocks
UPC	740507003240

Schaefer Series 3 Flat Base/Alum Cheek/Delrin Sheave

Volume Purchases and Deal Registration

Description

Schaefer Series 3 Flat Base/Alum Cheek/Delrin Sheave
