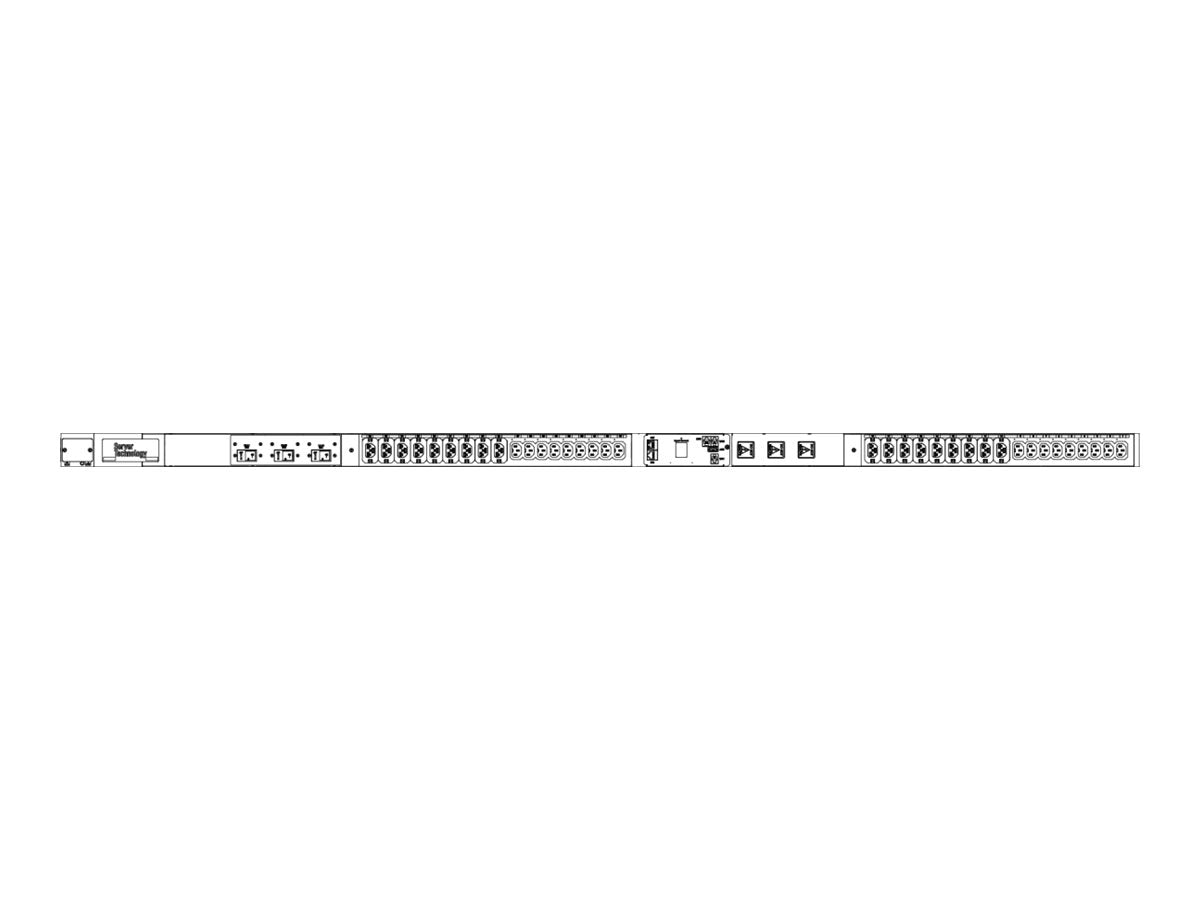

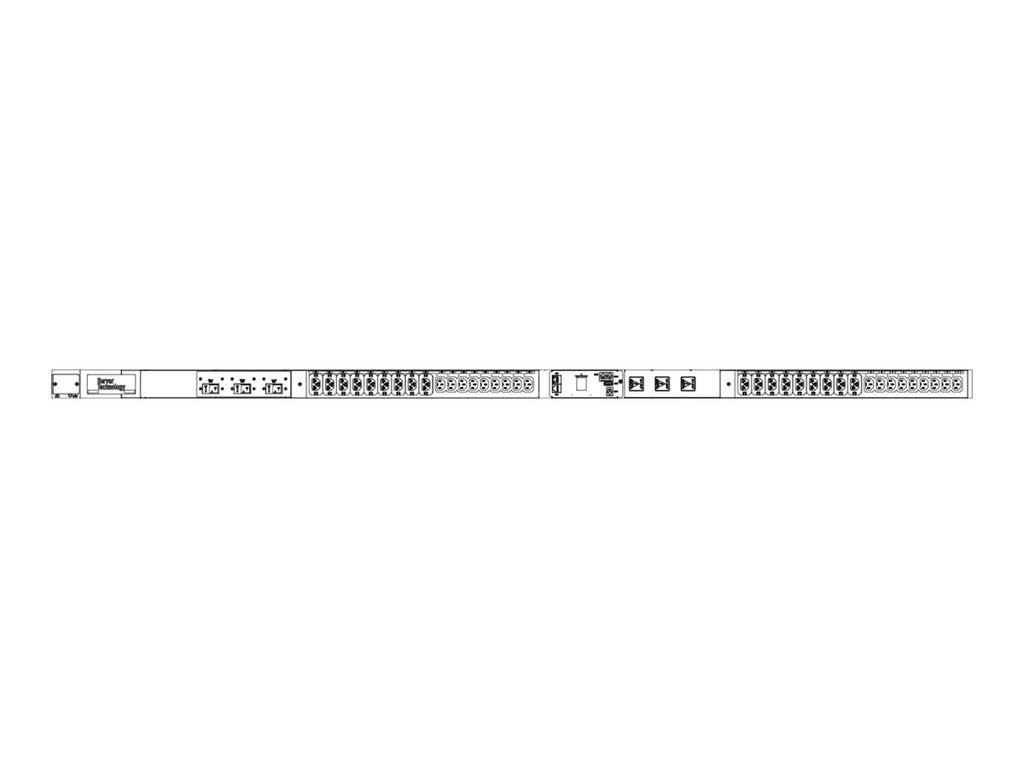

Server Technology PRO2 Switched PDU C2W36TE-2CAF2M99 - Primary - power distribution unit (rack-mountable) - AC 208 V - 5 kW - RS-232, Ethernet 10/100/1000 - input: NEMA L6-30P - output connectors: 36 (18 x IEC 60320 C13 12A, 18 x IEC 60320 Cx)
-
Outlet control
On PR02 Switched PDUs, cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.
-
Hot-swap network card
Network access is ensured when power is lost to the Master unit with backup power provided by the primary Link unit.
-
Alternating-phase outlets
3-phase power is wired in an alternating fashion per outlet for simplified load balancing, reduced cord lengths, and better airflow.
-
Temperature/humidity monitoring
PRO2 Master and Link units each support two external T/H probes. Receive SNMP-based alerts and email notifications.
-
High-retention locking outlets
PRO2 receptacles have high retention and are compatible with many locking power cords.
-
Auto-flip current display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
-
Flexible mounting
PRO2 includes standard button mounts along with provisions for custom mounting brackets.
-
Branch current monitoring
PRO2 monitors current at each breaker branch and provides SNMP-based alerts and emails on high usage that risks a tripped circuit.
The Server Technology PRO2 Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. The PRO2 Switched Master PDU can be connected to several PRO2 Switched Link PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
- Network monitoring
- Outlet control
- Hot-swap network card
- Alternating-phase outlets
- Temperature/humidity monitoring
- High-retention locking outlets
- Auto-flip current display
- Flexible mounting
- Branch current monitoring
