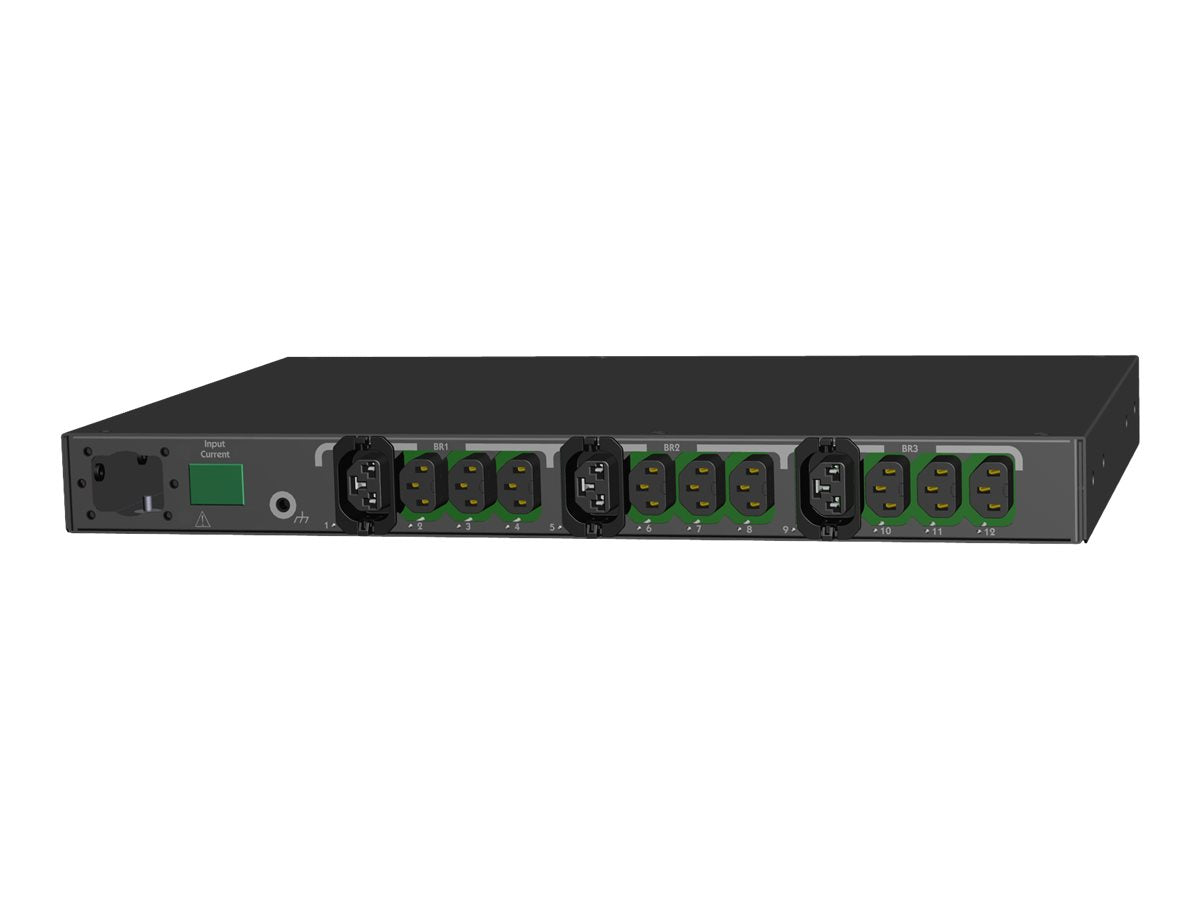

Server Technology PRO2 Switched POPS C2WG12SM-2CJA2D3 - Master - power distribution unit (rack-mountable) - AC 208 V - 5 kW - 1-phase - Ethernet 10/100, RS-232 - input: NEMA L6-30P - output connectors: 12 (9 x IEC 60320 C13, 3 x IEC 60320 Cx) - 1U
-
Network monitoring
Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
-
Hot-swap network card
Network access is ensured when power is lost to the Master unit with backup power provided by the primary link unit.
-
Branch current monitoring
PRO2 monitors current at each breaker branch and provides SNMP-based alerts and emails on high usage that risks a tripped circuit.
-
Branch circuit protection
This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
-
High retention outlets
Receptacles have high retention and are compatible with P-Lock type power cords.
The Server Technology PRO2 Switched POPS PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS and POPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output.
- Network monitoring
- Hot-swap network card
- Branch current monitoring
- Branch circuit protection
- High retention outlets
