Ethernet Communications Bridge & Multi-Zone Controller Kit
The Shadow-Caster MFD ( Multi-Function Display) Lighting Controller gives you full control of up to 6 independent zones of lighting on your vessel using your touchscreen MFD. Easily switch colors, adjust brightness, or synchronize lights with music. Set up scenes and deploy multiple changes to your zones all with one touch. Save your favorite settings and recall them later. Compatible with a wide range of MFD models from a range of manufactures including Garmin, Simrad, Lowrance, and B and G, Raymarine, and Furuno.

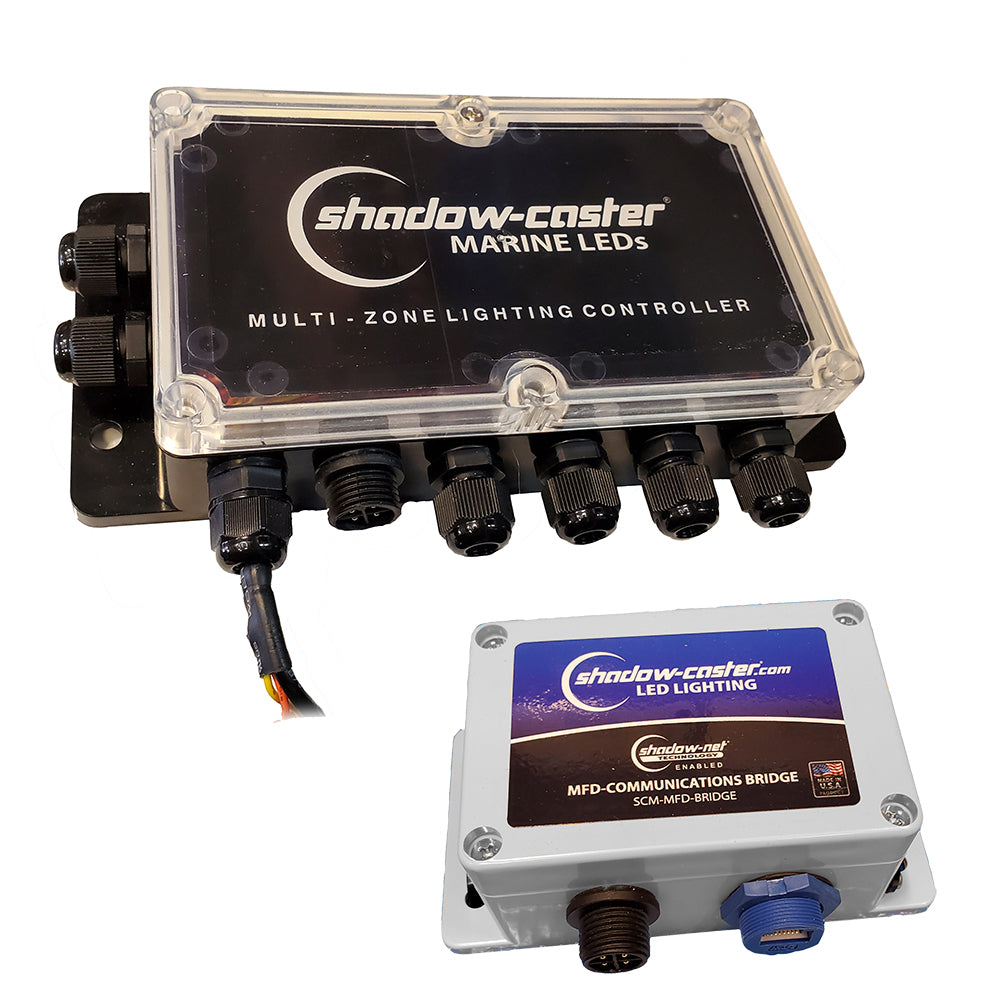

The SCM-MFD-LC is a kit that comes with two Shadow-Caster products. The Multi-Zone Lighting Controller ( SCM-ZC-SA) and the MFD Ethernet Communication Bridge ( SCM-MFD-Bridge). Allows a user to easily control all of the Shadow-Caster and Standard RGB lighting on their vessel. Designed to comply with an emerging NMEA lighting standard, the controller is designed to work on a CAN or NMEA2000 type network, through the use of Shadow-NET protocol CAN ( Control Area Network) Commands.
Features:
- Control Up to 6 Zones of Standard 4 or 5 wire RGB or Shadow-Caster Lights
- Quickly Adjust and Change Color and Brightness of Connected Lights
- Control Multiple Configurations of Color-Changing Patterns and Modes
- Includes 3.5 mm Audio Input for easy Music Synchronization
Manufacturer Part Number: SCM-MFD-LC-KIT
