Description
Shuttle XPC slim DH470 Barebone System - Slim PC - Socket LGA-1200 - 1 x Processor Support - TAA Compliant - Intel H470 Chip - 64 GB DDR4 SDRAM DDR4-2933/PC4-23466 Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600 Controller - Intel HD Graphics Graphic(s) - 1 2.5 Bay(s) - Network (RJ-45) - 2 M.2 Interface(s) - 1 SATA Interface(s) - Processor Support (Core i9 Core i7 Core i5 Core i3 Pentium Gold Celeron) - Gigabit Ethernet - Windows 10 x64 Linux Supported Operating System -

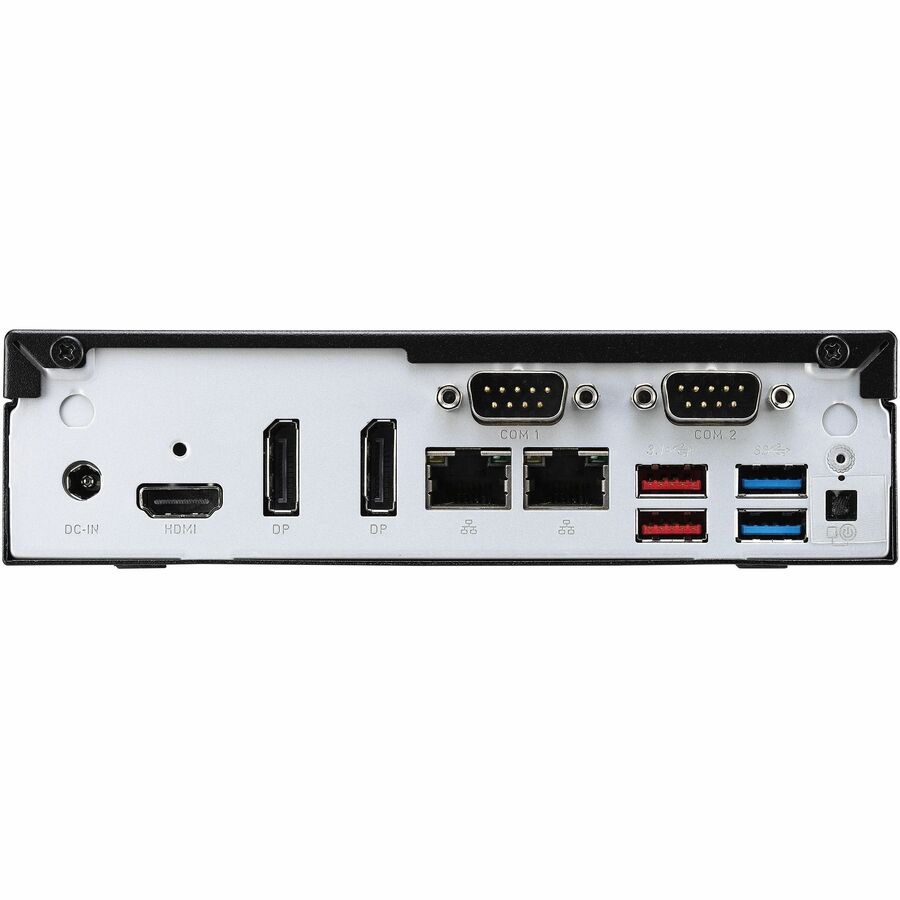

ROBUST 1.3-LITRE SLIMPC SUPPORTS INTEL COMET LAKE-S 10-CORE PROCESSORS AND THREE UHD DISPLAYS The Shuttle XPC slim Barebone DH470 with H470 chipset houses the performance of Intel's 10th generation Core desktop processors (codenamed Comet Lake-S) for socket LGA1200 in a compact 1.3-litre format. The DH470 allows for three Ultra HD displays to be operated at the same time via HDMI 2.0a and 2x DisplayPort. It also offers Dual Intel LAN four USB 3.2 Gen 2 and COM ports. The slim metal chassis comes with a VESA mount included provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage POS POI gambling machines office healthcare and industry.
General Information
Manufacturer
Shuttle, Inc
Manufacturer Part Number
DH470TPM
Manufacturer Website Address
http://www.us.shuttle.com
Brand Name
Shuttle
Product Line
XPC slim
Product Model
DH470
Product Name
XPC slim DH470 Barebone System
Product Type
Barebone System
UPC
0887993004297
Chipset
Chipset Manufacturer
Intel
Graphics Controller Manufacturer
Intel
Graphics Controller Model
HD Graphics
Graphics Memory Technology
DDR4 SDRAM
Graphics Memory Accessibility
Shared
Ethernet Technology
Gigabit Ethernet
Total Number of USB Ports
8
Number of USB 3.2 Gen 1 Ports
3
Network (RJ-45)
Yes
Power Description
Maximum Power Supply Wattage
90 W
Product Color
Black
Height
1.7"
Width
6.5"
Depth
7.5"
Weight (Approximate)
2.87 lb
Miscellaneous
Package Contents
XPC slim DH470 Barebone System
Multi-Language User Guide (EN, DE, FR, ES, JP, KR, SC, TC)

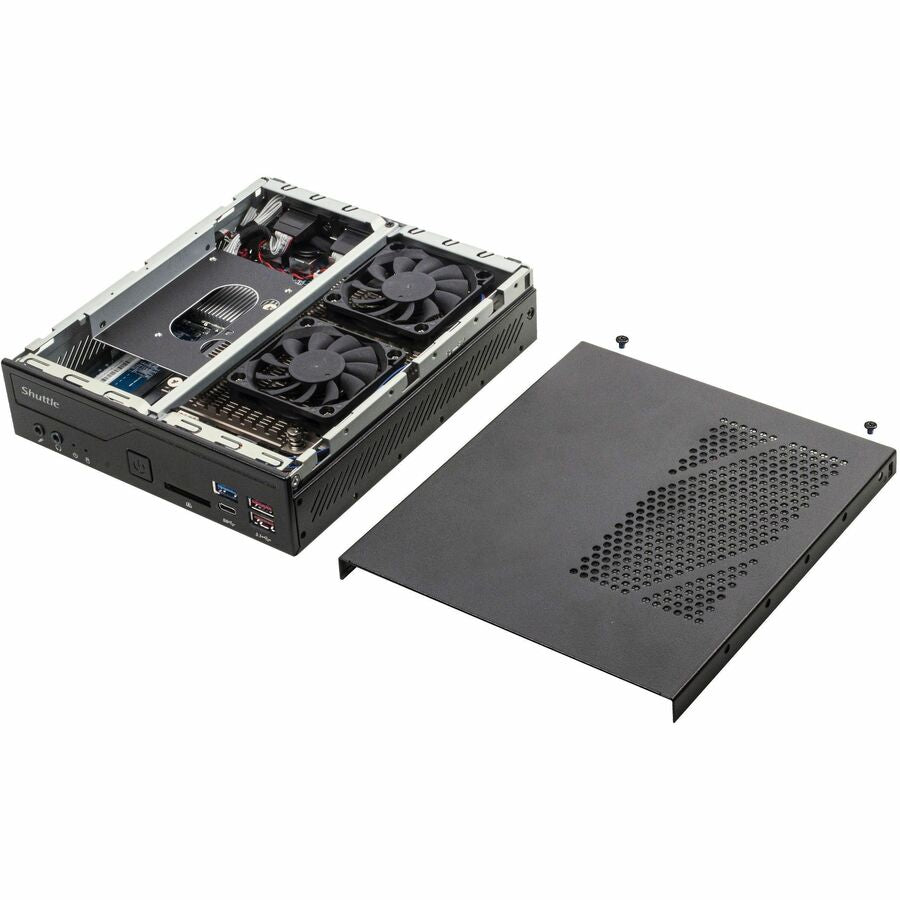

VESA Mount for 75/100 mm Standard (two metal brackets)
4 x Screws M3 x 5 mm (screws together VESA mount and PC)
4 x Screws M4 x 10 mm (to affix VESA mount on the PC)
4 x Screws M3 x 4 mm (to mount a 2.5" storage device into the bay)
2 x Screws M3 x 5 mm (silver colour, to mount two M.2 cards)
Driver DVD (Windows 64-bit)
Serial ATA Cable for 2.5" Drive Including Power Cable
External 90 W Power Adapter with Power Cord
Protection Cap for CPU Socket (do not use if heatpipe or fan is mounted)
