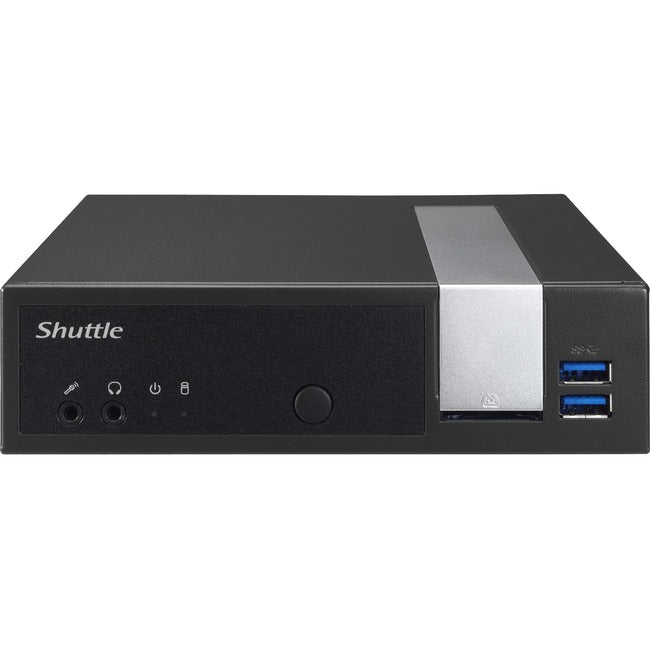

Shuttle XPC slim DL10J Barebone System - Slim PC - Intel Celeron J4005
Entry-level Redefined: Fanless 1 liter PC with Intel Gemini Lake
Shuttle's entry-level PC now gets a big boost. Achieve higher performance and productivity levels at a lower cost with Shuttle's new slim XPC-DL10J. Powered by the new generation of Intel® Gemini Lake Celeron® J4005 processor, the integrated graphics is based on Intel's powerful HD graphics 600 that supports hardware acceleration for 4K video encoding/decoding with H.265 and VP9. The DL10J features a wealth of connectivity options including USB 2.0, USB 3.1 Gen 1, RS232 ports and the optional 4G/LTE SIM card adapter (accessory WWN01). Built-in HDMI, DisplayPort and D-sub outputs make this model ideal as a multi-display solution for office and digital signage applications.
Intel® Gemini Lake Platform Technology
The DL10J supports the new Intel® Gemini Lake platform technology, equipped with 14 nm Intel® Celeron® J4005 dual-core processor. Support DDR4 SO-DIMM memory with a maximum capacity up to 8GB, able to reduce thermal energy production and overall energy consumption.
Hardware Support for Video Playback
The Intel® Gemini Lake processor is built-in HEVC/H.265 and VP9 video decoding. The DL10J can decode the video with the latest generation codecs and reduce CPU utilization with lower power consumption.
High Speed Wired and Wireless Network
The DL10J has great network connectivity powered by Intel® i211 Gigabit LAN and support fast speed WiFi IEEE 802.11 b/g/n with built-in wireless module. To expand the networking support for IoT applications, the DL10J offers an optional accessory SIM card adapter (accessory WWN01) for 4G/LTE broadband connectivity.
Peripheral Connectivity
With multiple USB2.0 and USB 3.1 Gen1, the DL10J also features two RS232 ports (one RS232 and one RS232/RS422/RS485) which both support 0V/5V/12V. The DL10J can be easily connected with barcode scanners, receipt printers, keypads, and other peripherals.
24/7 Nonstop Operation
Officially approved for 24/7 permanent operation. Thanks to Shuttle's low power consumption design and stable operation, the PC runs highly reliable and meets the long-term demands of digital signage or other vertical applications.
The Watchdog-protecting system security
Watchdog Timer provides excellent security protection for systems that need to operate continuously for a long period of time. Use Shuttle's Watch Dog utility to maintain normal operation and stability of the system at all times.
Support 4K Ultra HD
The DL10J is built-in HDMI and DisplayPort video outputs to support 4K high resolution (3840x2160). With four times the resolution of Full HD, viewers can enjoy the super detailed and crystal clear imaging of 4K.

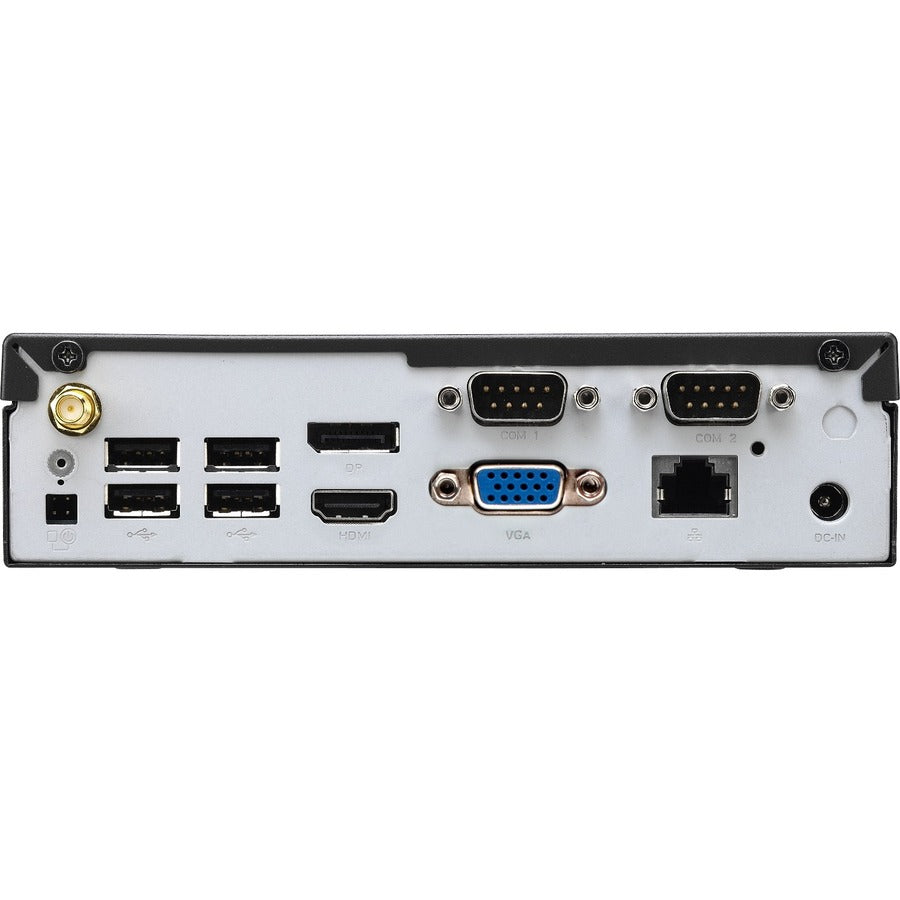

Multiple Video Outputs
The DL10J provides built-in HDMI, DisplayPort and D-sub outputs to support up to three independent displays. Use an adaptor to convert HDMI into DVI interface and DisplayPort into HDMI or DVI interface for diversified signal selection.
Fanless Design
The fanless design reduces power consumption required by a fan as well as the cost of replacing fans on-site. Use with solid-state disks and create an operational platform completely free of noise.
VESA Mount-Ready
The ultra-slim DL10J is VESA mount compliant and allows for versatile integration into hardware systems. This space-saving capability is well-suited for digital signage and kiosk applications with limited space.
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Provides 6 USB ports for responsive and expanded device connections
Product Type: Barebone System
Brand Name: Shuttle
Form Factor: Slim PC
Manufacturer: Shuttle, Inc
Product Model: DL10J
Product Name: XPC slim DL10J Barebone System
Product Line: XPC slim
Manufacturer Part Number: DL10J
Manufacturer Website Address: http://www.us.shuttle.com
Package Contents:
- XPC slim DL10J Desktop Computer
- Quick Guide
- Driver DVD
- 40W Power Adapter
- HDD Screw Pack
- Power Cord
- VESA Mount
- VESA Screw Pack
- External Antenna
Limited Warranty: 3 Year
