8.5" Color LCD Radar with 4kW Output - 1/16-36nm Range - 25" Radome
SI-TEX's T-941 Radars feature sophisticated Hyper-Digital Processing™ (HDP) Technology for real-time presentation and superior target discrimination.
Features:
- It virtually eliminates unwanted noise to provide a clearer detailed image of targets and enhances the detection of smaller targets
- Radome: 4kW, 36NM, 25" Display

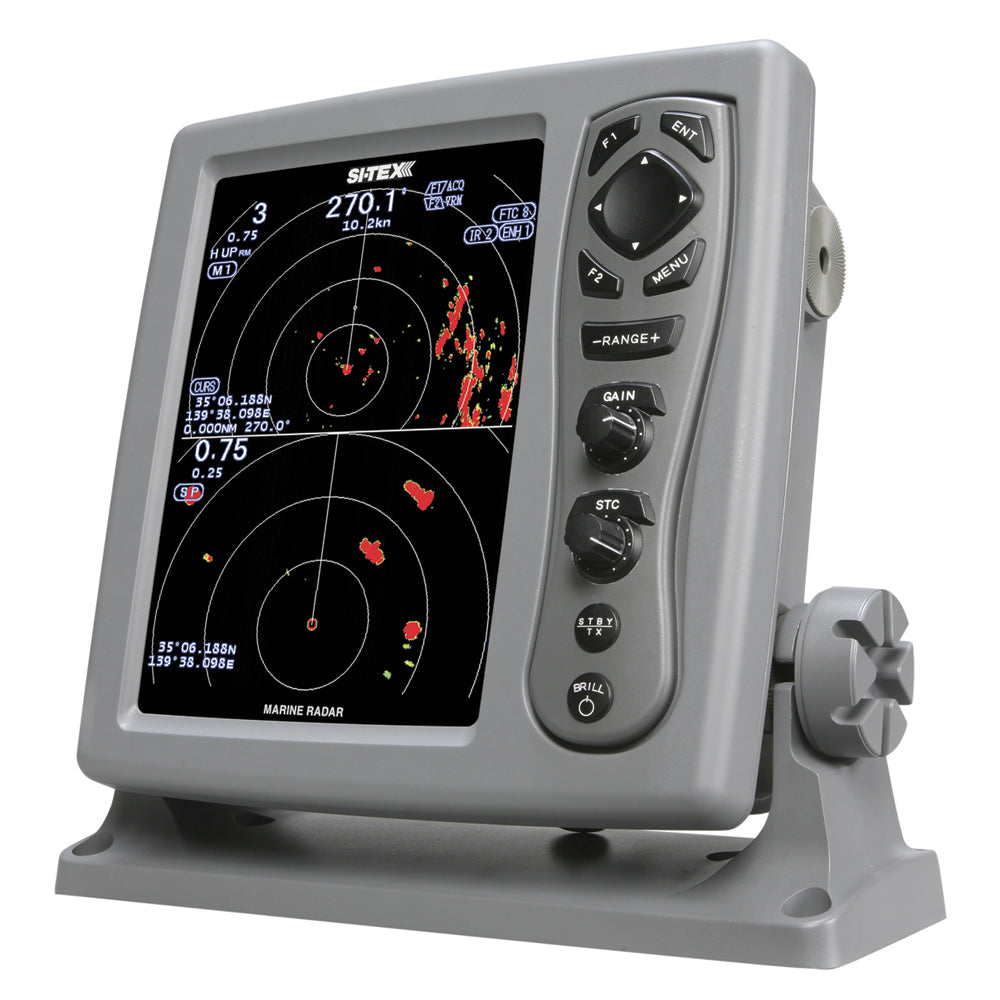

- Brilliant 8.4" color LCD daylight viewable display
- 480 x 640-pixel resolution and anti-reflective glare coating for outstanding viewing
- True-color radar feature displays echoes in different colors depending on signal strength
- The real-time presentation offers smooth movement as bearing changes
- The T-941 has two-speed antenna rotation for tracking of quick-moving, close-in targets:
- 48 RPM
- 24 RPM (Requires 24 Volt DC input)
- Selectable range scales from 1/16 NM
- Warning Zone alerts you to "incoming" and "departing" targets breaking your preset guard zone
- Automatic hands-off tuning maintains maximum sensitivity at all times with manual override for the experienced use
- RGB output for connecting (2) optional external monitors
- Easy access to all system functions with simply arranged keypad, programmable function keys, comprehensive menus and dedicated rotary knobs for instant control of Gain and STC
- Built-in flush mounting system makes installation easy
- All this advanced radar technology is housed in a sleek, waterproof (IPX5 rating) case design that can be mounted almost anywhere
- Dual Range Radar function lets you view split-screen displays of both long and short-range targets simultaneously
- Monitor a nearby buoy and a far off island at the same time
- True Trail function clearly identifies moving targets from stationary targets
- The display shows the exact movement of other vessels like drawing tails, while land and buoys are shown as stationary objects even while your vessel is moving
- Accepts CCD camera input, to display split-screen Radar and Camera
- Allows you to monitor important areas of your vessel while shill keeping watch of your surroundings
- Optional ATA (Automatic Tracking Aid) allows you to tracks up to 50 user designated targets
- Designate the target and the radar will automatically provide the target distance, speed, bearing, course, and closest point of approach on all user targets selected.
- Optional AIS interface displays information on up to (100) AIS targets including the vessel's MMSI number, name, course, and speed of each vessel with an AIS transmitter
- This information is sent continuously and is useful in navigating, traffic monitoring, and collision prevention
Specifications:
Antenna Unit:
- Scanner 25" Radome
- Peak Power Output 4kW
- Output Frequency 9410 + 30MHz
- Beam Width:
- Horizontal 3.9°
- Vertical 25°
- Rotation 24 or 48 rpm (48 rpm; 24V DC or more
- Pulse Width .08, 0.15, 0.3, 0.5, 1 use
- IF Frequency 60 MHz
- Range Accuracy Better than 8m
- Min. Detecting Distance: Within 25m
Display Unit:
- Display Size/Type 8.4" TFT Color LCD (480 x 640 pixels)
- Off Centering Max 66%
- Display Modes Heads up, North up*, Course up* WPT up**, True motion*
- Indication System PPI, PPI/PPI, PPI/NAV
- Range Scales NM 1/16, 1/8, 1/4, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 7, 12, 16, 24, 32, 48 (T -- PNEW to 24,T -- 941 to 32, T -- 940 to 48)
- Range Rings NM 1/32, 1/16, 1/8, 1/4, 1/2, 3/4, 1/1.5, 2, 3, 4, 6, 8 12
- Bearing Accuracy Better than + 1°
- Video Level 8 colors
- Distant Unit (VRM unit) NM, SM, KM
- Alarms Entry or Breakaway (In and Out)
- Other Functions Interference rejection, Target expansion, VRM, EBL, Parallel index, Course position (Lat/Lon), Bearing (true/relative), Trail*, RGB Monitor output, Slave display monitor input/output, External buzzer. Accepts CCD camera input
- AIS Interface Option (100 targets)
- ATA Option (Auto/Manual, 50 targets)
- Input Data Format BEC, BWC, BWR, DPT, DBT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWD, MWV, RMA, RMB, RMC, VHW, VTG, XTE
- Output Data Format TTM, TLL
- Power Requirements 10.8 - 31.2 Volt DC
- Power Consumption 55 Watt
- Water Protection
- Display: IPX 5
- Antenna CFR 46 IPX
What's In The Box?
- Display Unit MRD-103 with hardcover
- Connecting Cable 242J158055A -10 M with 2 connectors
- DC Power Cable CW265-2M 2m
- CCD Camera Cable CW-405-0.3M
- Operation manual, Quick reference
- Fuse (8A)
Array Size (Inches) = 25" | Power - Output = 4kW | Range - Max (Miles) = 36nm
Manufacturer Part Number: T-941A
