SIIG 4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC - 60m
Extends HDMI 1.4 audio and video signals, RS232 control, IR control, and Power over Cable (PoC) up to 60 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology
- Extends HDMI 1.4 audio and video signal from your HDMI source to a remote HDMI display up to 196ft (60m) at Full HD 1080p, up to 114ft (35m) at UHD 4K (3840x2160) @30Hz through a single premium quality CAT5e/6 cable
Note: The transmission distance will vary depending on cable quality, 100% copper and IEEE-568B wiring standard recommended - Delivers crystal clear picture quality with resolution up to 3840x2160@30Hz (YUV 4:4:4 8-bit and YUV 4:2:0 10-bit)
- Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
- Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through only one power adapter connected to either unit
- Bi-directional IR sensors allow you to remotely control the HDMI source device from the remote display side or control the remote display from the source device side
- High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use
- Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS

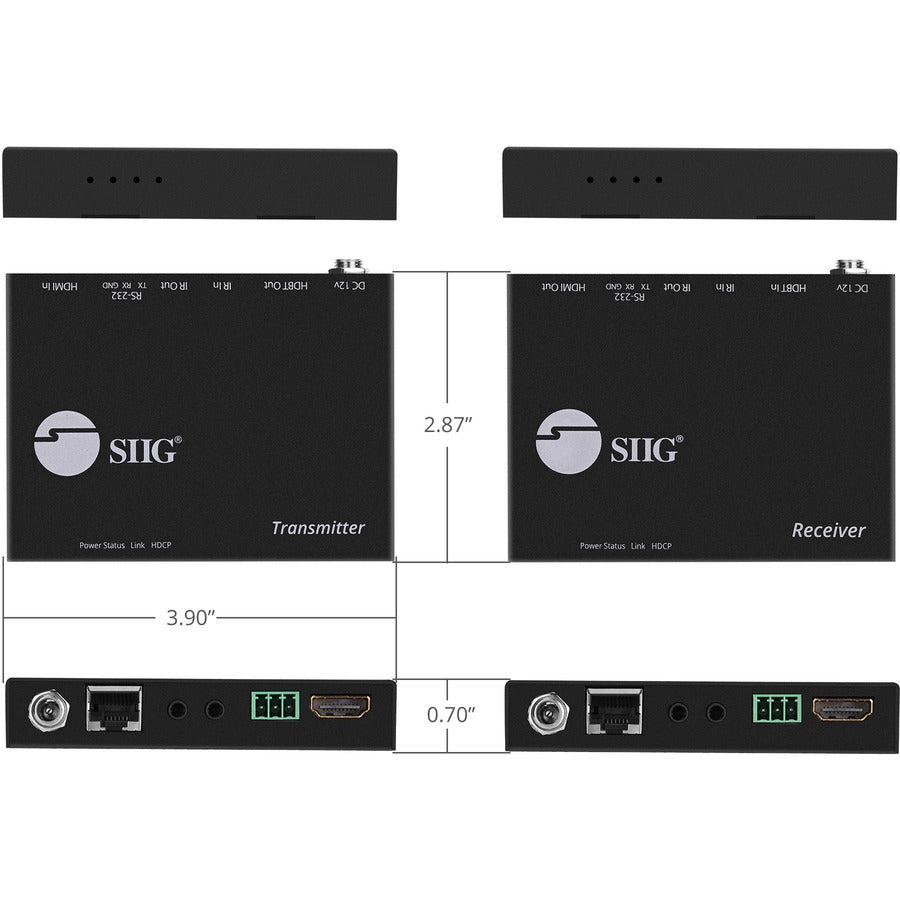

Transmitter Height: 0.83"
Transmitter Width: 2.87"
Transmitter Depth: 4.06"
Transmitter Weight (Approximate): 8 oz
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: SIIG
Form Factor: Wall Mountable
Manufacturer: SIIG, Inc
Product Model: CE-H23E11-S1
Product Name: 4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC - 60m
Manufacturer Part Number: CE-H23E11-S1
Manufacturer Website Address: http://www.siig.com

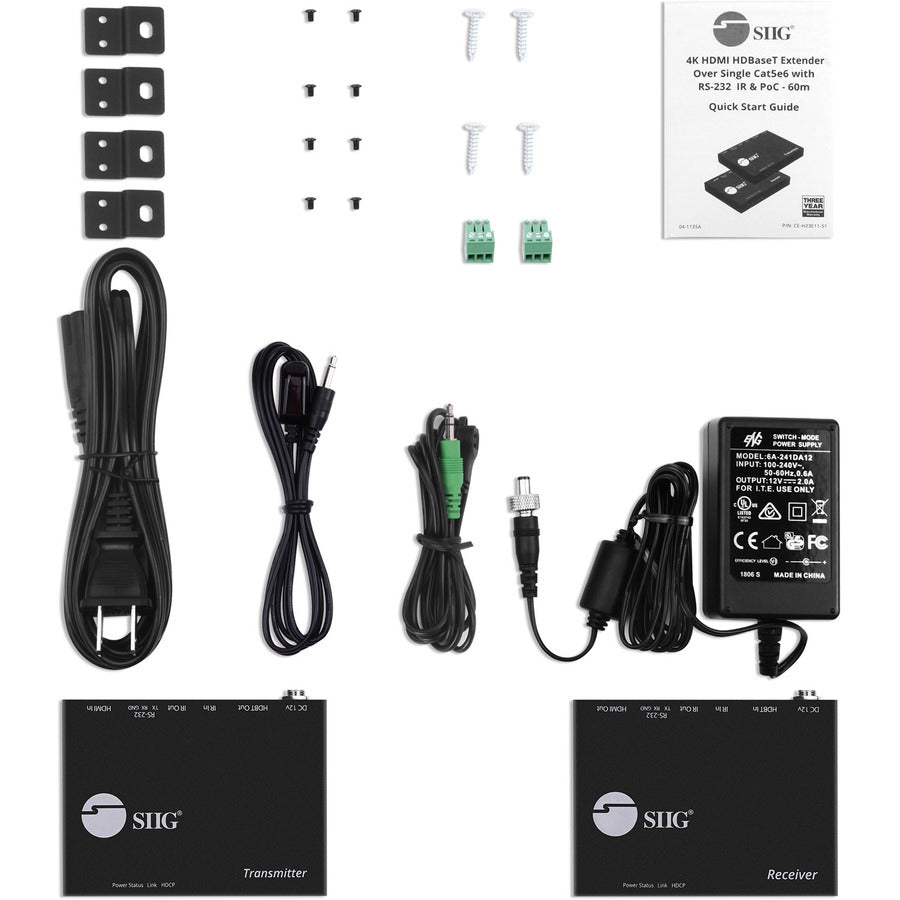

Package Contents:
- 4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC - 60m
- Power Adapter
- IR Blaster Extension Cable & IR Receiver Extension Cable
- 4 x Mounting Ears
- 8 x Screw kit
- 2 x Terminal Block kit
- User Reference Guide
Limited Warranty: 3 Year
