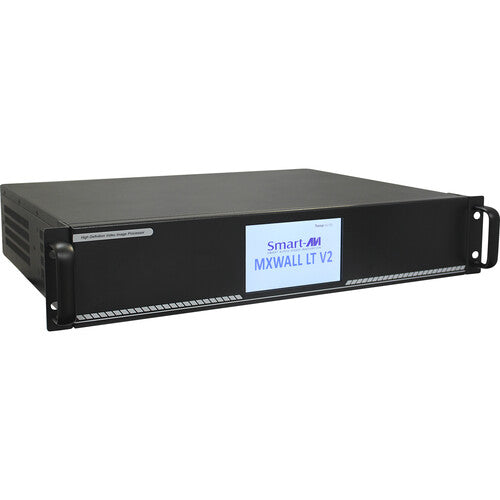

SmartAVI MXWALL-LT-V2-0412-S 4-Input 12-Output Video Wall Processor and Matrix Switch
The SmartAVI MXWALL-LT-V2-0412-S is a professional video wall processor and matrix switch designed to route and display multiple HDMI sources across large multi-screen video wall installations. With support for 4 HDMI inputs and up to 12 HDMI outputs, it provides flexible source switching and display control for command centers, control rooms, digital signage, corporate environments, retail spaces, and other multi-display applications.
The system supports resolutions up to 1080p and provides HDMI 1.4 and HDCP compatibility. Users can manage connected sources and displays using the front-panel touchscreen, RS-232, or network control through its RJ45 interface. SmartAVI’s MXwall Manager software also provides additional configuration and management capabilities.
Key Features
- 4 HDMI inputs
- 12 HDMI outputs
- Supports resolutions up to 1080p
- HDMI 1.4 and HDCP compatible
- 3.2 Gbps video amplifier bandwidth
- Supports RGB and YCbCr video formats

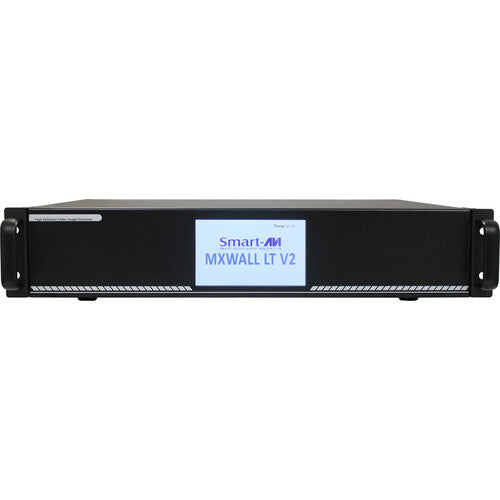

- Front-panel touchscreen control

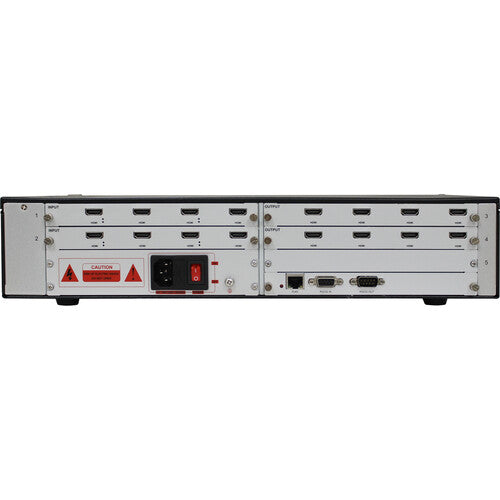

- RS-232 control via DB9
- TCP/IP network control via RJ45
- Compatible with SmartAVI MXwall Manager software
- 100–230V AC power input
- 300W power consumption
- Operating temperature: 0°C to 55°C
- Rackmount-style chassis
- Dimensions: 17" W × 3.5" H × 15" D
- Weight: approximately 20 lb

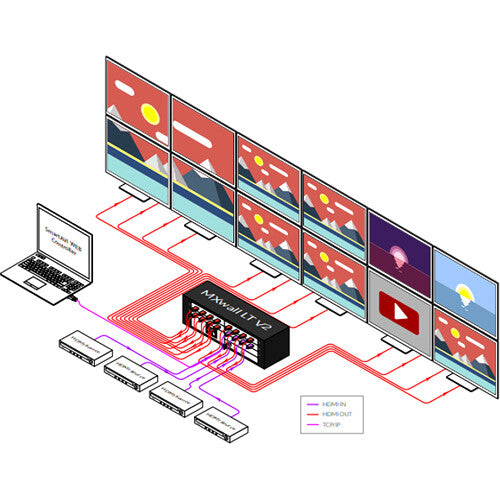

The MXWALL-LT-V2-0412-S is well suited for applications that require centralized control of multiple video sources and displays, allowing users to create flexible video wall layouts and route content across multiple screens from a single system.
Manufacturer: SmartAVI
Manufacturer Part Number: MXWALL-LT-V2-0412-S
