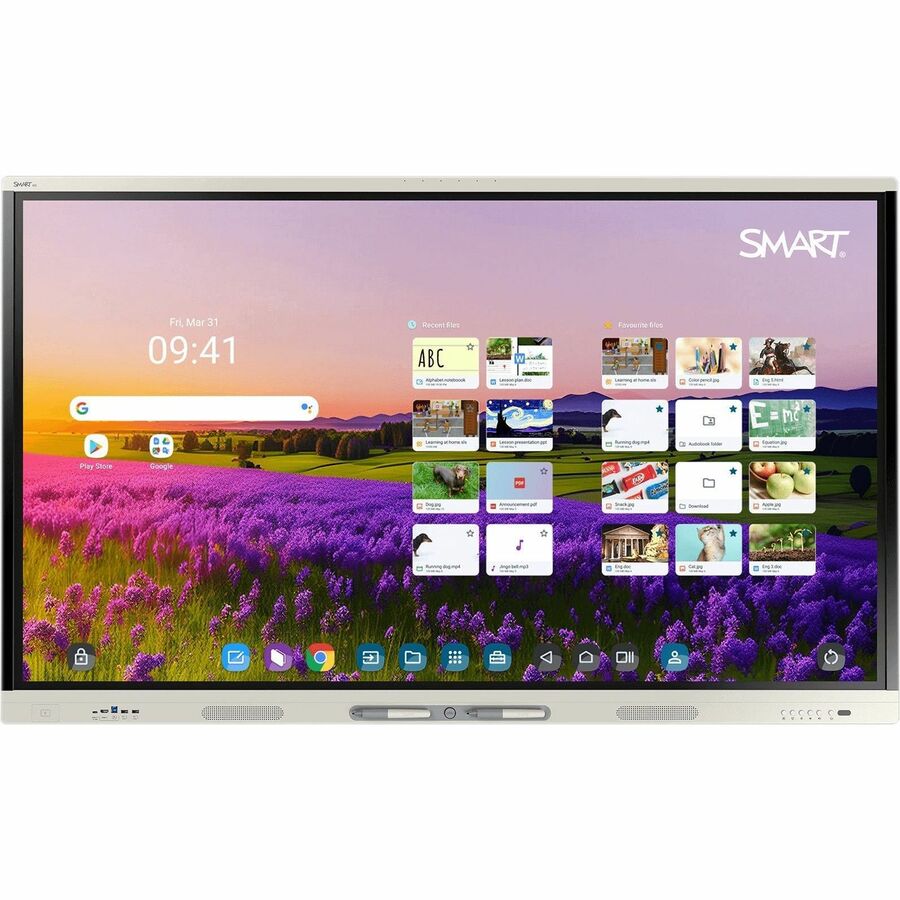

SMART Board MX286-V5 Collaboration Display - 86" LCD - 8 GB DDR4 SDRAM - HyPr Touch Technology - Touchscreen - 16:9 Aspect Ratio - 3840 x 2160 - LED - 400 Nit - 2160p - USB - HDMI - VGA - Bluetooth - Android 13
The SMART Board MX286-V5 is an 86-inch interactive display designed for modern classrooms, training environments, and collaborative learning spaces. Combining a large 4K UHD touchscreen with SMART’s intuitive iQ platform, advanced touch technology, integrated audio, and flexible connectivity, the MX286-V5 provides an engaging and easy-to-use solution for teaching, presenting, whiteboarding, and collaboration.
The 86-inch 4K UHD display delivers crisp, detailed visuals with a resolution of 3840 × 2160 and a wide 178° viewing angle. Bonded, anti-glare and anti-fingerprint glass helps improve visibility while providing a natural writing experience. SMART HyPr Touch with Advanced IR technology delivers responsive, accurate interaction with support for up to 50 simultaneous touch points, depending on the connected operating system.
Powered by the SMART iQ embedded Android platform, the MX286-V5 allows teachers and presenters to access digital whiteboarding, web browsing, screen sharing, apps, files, and interactive classroom tools directly from the display without requiring a separate computer. The system runs Android 15 and supports Google Play, giving users access to a wide selection of compatible applications.
Built-in Wi-Fi 6E and Bluetooth 5.2 provide modern wireless connectivity, while multiple HDMI, USB-A, USB-B, USB-C, network, and audio connections make it easy to integrate laptops, document cameras, conferencing equipment, and other classroom devices. USB-C connectivity allows compatible computers to transmit video, audio, touch, and data through a single cable while providing up to 65W of power delivery.
For presentations and hybrid collaboration, the display includes dual 20W speakers and an integrated six-microphone array with acoustic echo cancellation. An OPS expansion slot also allows an optional SMART PC module to be installed for organizations that require a full Windows computing environment.
Key Features
-
86-inch 4K UHD interactive display
-
3840 × 2160 resolution at 60 Hz
-
400-nit brightness
-
178° viewing angle
-
Bonded, anti-glare and anti-fingerprint tempered glass
-
SMART HyPr Touch with Advanced IR technology
-
Up to 50 simultaneous touch points
-
Approximately 5 ms typical touch response
-
1 mm touch accuracy
-
Two included interactive pens
-
SMART iQ embedded Android operating system
-
Android 15 with support for future Android 17 upgrade
-
Octa-core processor
-
8GB DDR4 memory
-
64GB internal storage
-
Google Play Store and Google Play Protect support
-
Integrated digital whiteboard and web browser
-
Wireless screen sharing
-
SMART Notebook software included
-
Wi-Fi 6E connectivity
-
Bluetooth 5.2
-
USB-C connectivity with up to 65W power delivery
-
Multiple HDMI 2.1 inputs
-
OPS PC expansion slot
-
Dual integrated 20W speakers
-
Integrated six-microphone array
-
Acoustic echo cancellation
-
Ambient light and proximity sensors
-
Gigabit Ethernet connectivity
-
VESA 800 × 600 mm mounting compatibility
-
Designed for education, training, presentations, and collaborative environments
The SMART Board MX286-V5 provides schools and organizations with a versatile interactive display that combines high-quality 4K visuals, responsive touch performance, integrated collaboration tools, and extensive connectivity in a single classroom-ready solution.
