Sonnet xMac Studio/Echo I
xMac Studio/Echo I

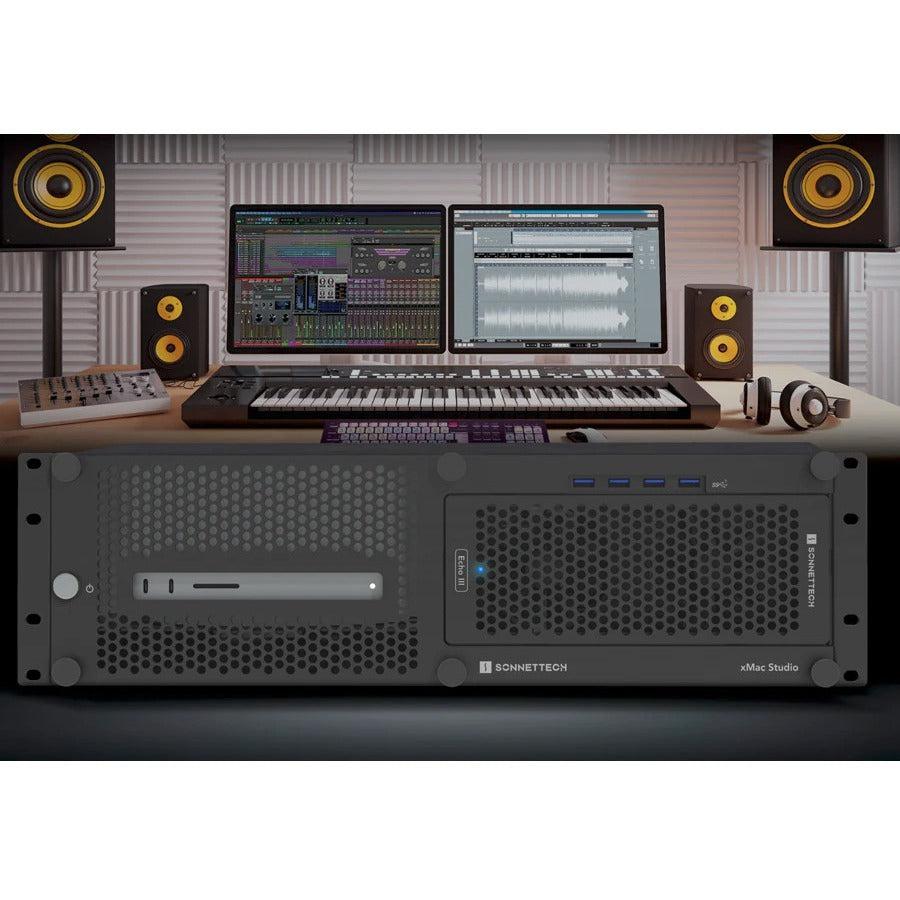

Professional 3U Rackmount Enclosure with One Slot Thunderbolt to PCIe Card Expansion System for Mac Studio
Designed for One PCIe Card Expansion - Connect a Speciality Audio or Video Card
For many creative professionals, PCIe card expansion is not an option - its a necessity for connecting specialty cards to handle audio and video post-production projects. xMac Studio is a rugged steel 3U rackmount enclosure for securing a Mac Studio with optional PCIe card expansion module in a rack, placing the Mac Studio behind a quick and easy to remove front panel. Sonnet designed the xMac Studio/Echo I for pro workflow flexibility; a rugged steel enclosure protects the Mac Studio while a one slot PCIe expansion module provides expansion for a PCIe card, including support for an Avid Pro Tools | HDX card.
Echo I Expansion Module Features
Versatile PCIe Card Expansion - From low-profile, half-length to full-height, full-length in size, Echo I expansion module support every Thunderbolt-compatible, non-GPU PCIe card available. View PDF of supported PCIe cards.
400W of Power - Built-in 400W power supply supports power-hungry cards including Avid Pro Tools | HDX, AJA® Kona® 5, Blackmagic Decklink 4K Extreme 12G, and Blufish444's Epoch and KRONOS SDI cards. System powers on and off automatically with the connected Mac Studio.
Quiet Fans - Dual temperature-controlled, variable-speed Noctua fans rated at 17 dbA offer ultra-quiet operation.
40Gbps Thunderbolt Interface - 40Gbps Thunderbolt interface offers 2800 MB/s of PCIe bandwidth to the installed PCIe card.
Control and Connect - Easy Access to Mac Studio and PCIe Card Expansion Module
Convenient front panel operation allows you turn Mac Studio on with its own dedicated front power button, connect USB devices through a 4-port USB-A hub, and access the computer's front ports and SD card slots. Equipped with an Echo I PCIe Card Expansion Module, three rear panel locking thumbscrews allow you to easily pull out and access the module and PCIe card through the front without removing the front panel. xMac Studio's design enables you to connect and disconnect cables without needing to remove the Mac Studio from the enclosure.
An opening on top of xMac Studio ensures hindrance-free wireless signal access. The xMac Studio is designed to allow normal WiFi and Bluetooth wireless operation in most configurations (depending on rack type and position in rack), so you can use wireless devices and iOS® device control apps.
Mac Studio computer and PCIe cards not included
- Designed and Made In the USA
- Free Lifetime Customer Technical Support
- Mac Studio Compatible
- 2-year Product Warranty
- Ideal for Use In Server Rooms, DITs, Portable Racks, and Shallow Molded Rack Cases
- Front to Back Airflow Management
- Open Slot and Port Access to Mac Studio
- Space for Storage - Install Up to Three USB or Thunderbolt SSDs (Sold Separately) Beneath the Mac Studio; An Included Adhesive-based Magnet Secures Them In Place
- Front Panel Power Switch and 4-port USB Hub
- Easy Computer Access - Removable Front Panel
- Compact and Rugged Steel Enclosure
- Makes Your Mac Studio Road-ready In a 3U RackMount Enclosure
- Connects a PCIe Card Slot to Mac Studio - Connect One PCIe Card
Product Type: Rack Mount Enclosure
Product Material: Steel
Country Of Origin: United States
Rack Height: 3U
Brand Name: Sonnet
Form Factor: Rack-mountable
Manufacturer: Sonnet Technologies, Inc
Product Name: xMac Studio/Echo I
Manufacturer Part Number: XMAC-STD-I
Manufacturer Website Address: http://www.sonnettech.com
Package Contents:
- xMac Studio/Echo I
- Adhesive-based Magnet
Limited Warranty: 2 Year
