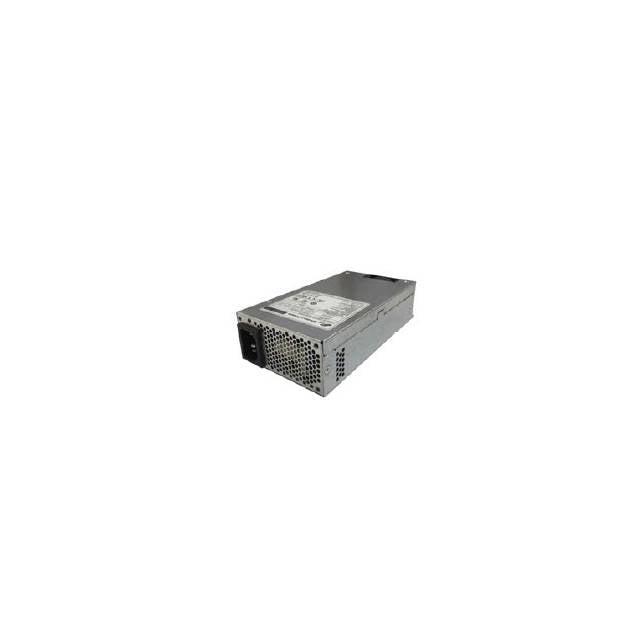

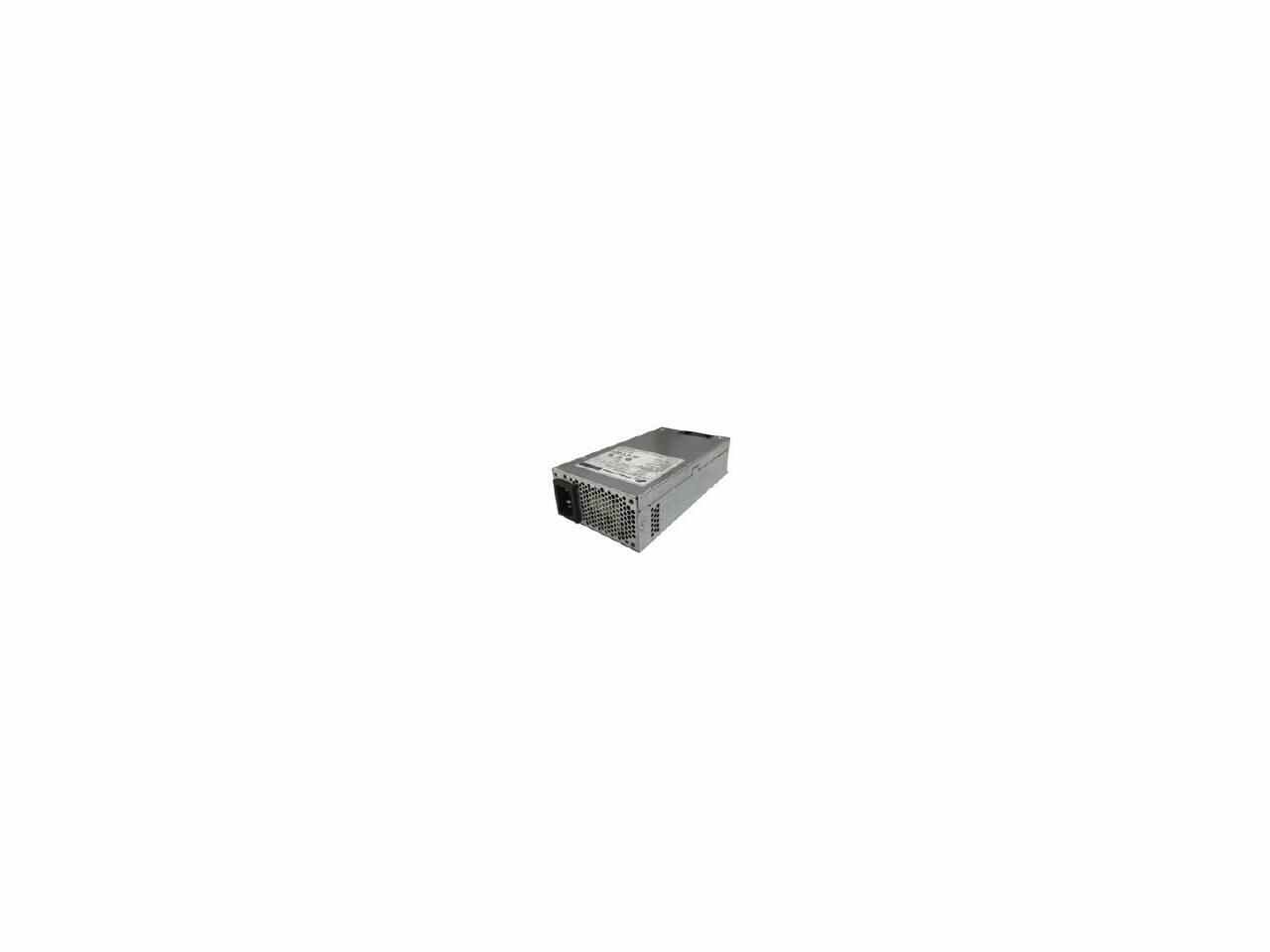

Mfr Part Number: FSP500FDB-B204
-
Features:
- Complied with ATX FLEX standard
- Active Power Factor Correction (PFC) meet EN61000-3-2
- High efficiency and reliability
- Compatible with European Union Directive 2011/65/EU & (EU) 2015/863 (Restriction on Hazardous Substances)
- Remote ON/OFF function
- Internal 12V DC fan included
- AC input I/O switch is option
- Low noise and ripple
- Output over voltage, short circuit, and over current protection
- 100% Hi-pot, ATE, and burn-in tested
- Re-settable power shut down
- Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation
- Approved by CB 62368 & 60950-1 2nd, EMC, CUL/UL TUV, FCC, CE
-
Input:
-
Input Range: 90 ~ 264Vac (RMS), Full Range Input
-
Frequency: 47 ~ 63Hz
-
Input Current: Max 8A (RMS) @ 115Vac, 4A (RMS) @ 230Vac
-
Inrush Current: No damage
-
Output:
-
Total Watts: 500W
-
Output Voltage: + 3.3V @ 14A, +5V @ 16A, +12V @ 41A, -12V @ 0.3A, +5VSB @ 3A
- + 3.3V and +5V total output not exceed 90W
-
Dielectric Withstand: Primary frame ground 1800V AC for one second
-
Efficiency: Typical >= 90%
-
Rise Time: Less than 20ms
-
Hold-up Time: >=12ms minimum at input 230V/50Hz
-
Power Good Signal: Power on delay time 100 ~ 500ms, off delay 1ms minimum (TTL and CMOS compatible)
-
Leakage Current: Less than 3.5 mA at 264Vac, 63Hz
-
MTBF: A minimum predicted MTBF (MIL-HDBK-217) of 100, 000 hours of continuous operation at +25°C
-
Dimensions (WxLxH): 3.2 x 6.0 x 1.6 inch / 81.5 x 150.0 x 40.5 mm
- RoHS Compliant
