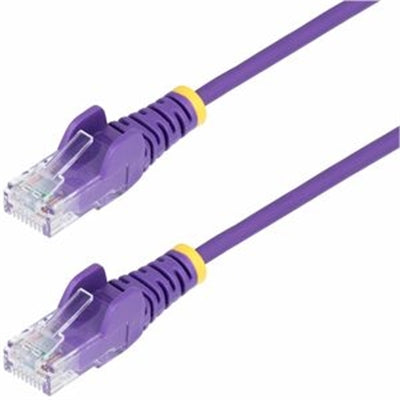

Slim CAT6 Ethernet Cable 25ft — StarTech Purple Network Patch Cord
The StarTech 25ft slim CAT6 ethernet cable delivers professional-grade network performance in a space-saving design. This slim network patch cord is 36% slimmer than standard cables, making it ideal for crowded server racks, wall conduits, and cable trays where airflow and organization matter. Supporting 10Gbps data transfer speeds and 100W Power over Ethernet (PoE), this UTP CAT6 cable combines high performance with practical design. The purple jacket adds visual organization to your network infrastructure, while the snagless RJ45 connectors and LSZH flame-retardant jacket ensure reliability and safety in any installation environment.
Key Features
-
Slim design — 36% thinner profile improves airflow and reduces cable clutter in dense installations
-
10Gbps performance — Full CAT6 bandwidth for high-speed network applications
-
100W PoE support — Powers network devices like IP cameras, access points, and VoIP phones
-
Gold-plated RJ45 connectors — Enhanced conductivity and corrosion resistance for reliable connections
-
28AWG bare copper wire — Superior signal integrity and flexibility for easier routing
-
LSZH jacket — Low-smoke, zero-halogen material for fire safety compliance
-
Snagless design — Protective boot prevents accidental disconnection
-
UTP construction — Unshielded twisted pair for cost-effective, standard network installations
-
25ft length — Ideal for medium-distance runs between equipment and wall outlets
-
Purple color — Helps identify and organize network cables by function or location
Technical Specifications
| Specification |
Details |
| Part Number |
N6PAT25PLS |
| Manufacturer |
StarTech |
| Cable Type |
CAT6 UTP (Unshielded Twisted Pair) |
| Length |
25 feet |
| Wire Gauge |
28AWG bare copper |
| Connector Type |
Snagless RJ45 |
| Connector Plating |
Gold-plated |
| Jacket Material |
LSZH (Low-Smoke Zero-Halogen) |
| Data Transfer Speed |
10 Gbps |
| Power Over Ethernet (PoE) |
100W supported |
| Color |
Purple |
| Profile |
Slim — 36% thinner than standard CAT6 |
| Compliance |
TIA/EIA 568B standard |
Frequently Asked Questions
What is the difference between slim CAT6 and standard CAT6 cables?
Slim CAT6 cables are 36% thinner than standard CAT6, making them ideal for crowded installations where space and airflow are critical. Despite the reduced diameter, this slim ethernet cable maintains full 10Gbps performance and 100W PoE capability, delivering the same network reliability in a more compact form factor.
Can this 25ft CAT6 cable support Power over Ethernet devices?
Yes. This slim CAT6 ethernet cable supports up to 100W PoE, making it suitable for powering IP cameras, wireless access points, VoIP phones, and other PoE-enabled network devices over the same cable connection.
Is the LSZH jacket suitable for in-wall installations?
Yes. The LSZH (Low-Smoke Zero-Halogen) jacket is fire-safe and compliant with building codes for plenum and in-wall use. It produces minimal smoke and no toxic halogen gases if exposed to fire, making it ideal for commercial and industrial network installations.
Why choose gold-plated RJ45 connectors?
Gold-plated connectors provide superior conductivity and resist corrosion better than standard nickel-plated connectors. This ensures more reliable connections, reduced signal loss, and longer cable lifespan, especially in high-traffic network environments.
