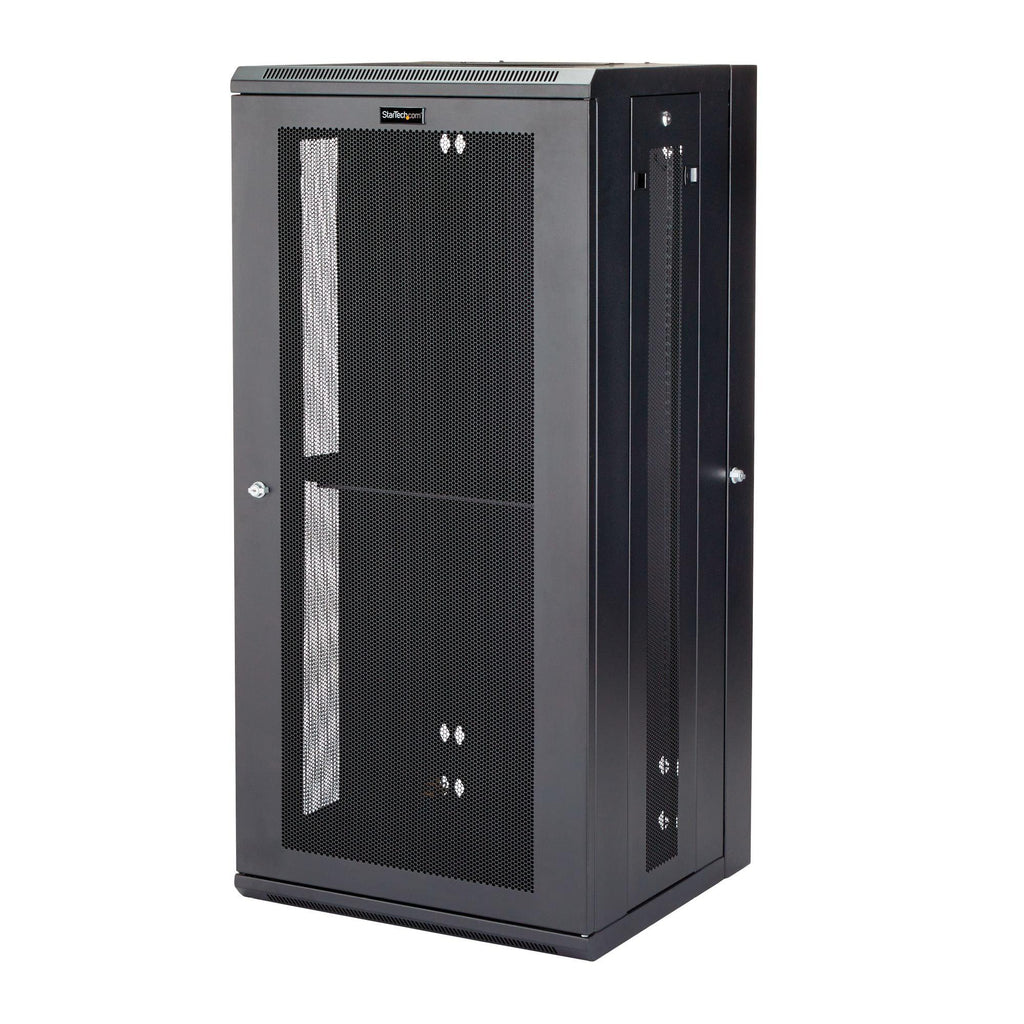

This wall mount server rack is perfect for IT professionals and businesses who need secure, space-efficient network equipment storage. Our 26U network cabinet delivers:
-
Hinged door access that simplifies equipment maintenance and installation
-

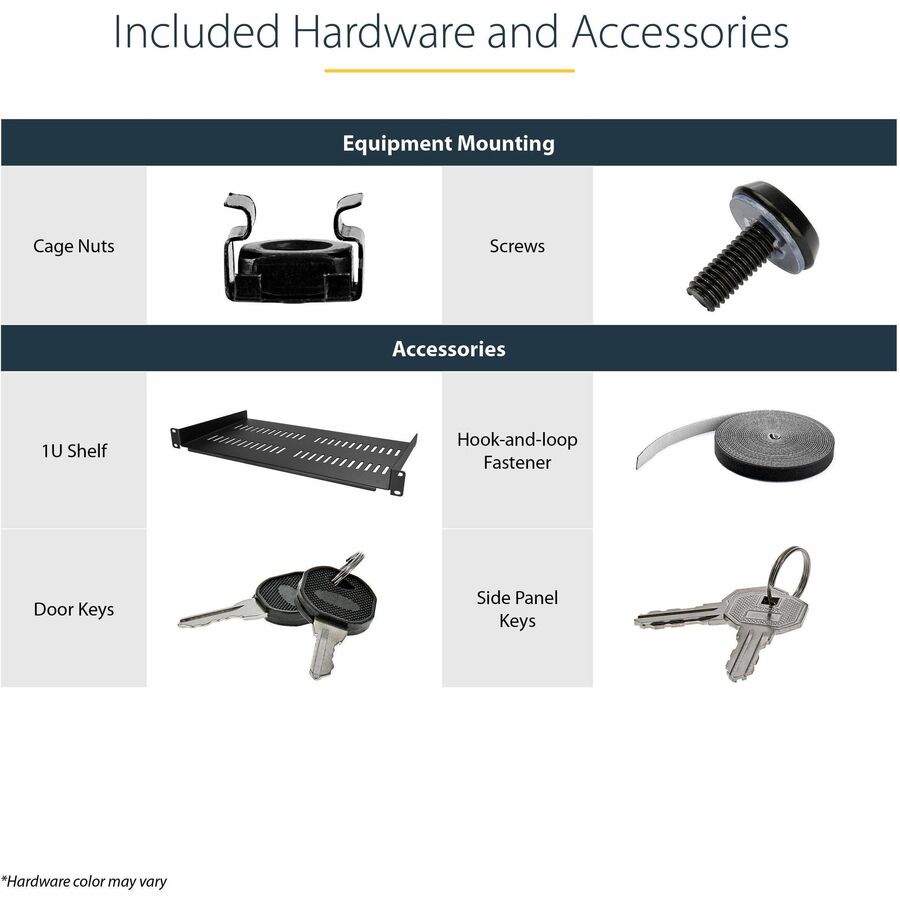

1U server rack shelf for additional equipment storage flexibility
-
19 inch network rack compatibility ensuring standard equipment fits perfectly
-
Lockable security features for enhanced IT equipment protection
Key Features
-
Wall mounted design to maximize floor space efficiency
-

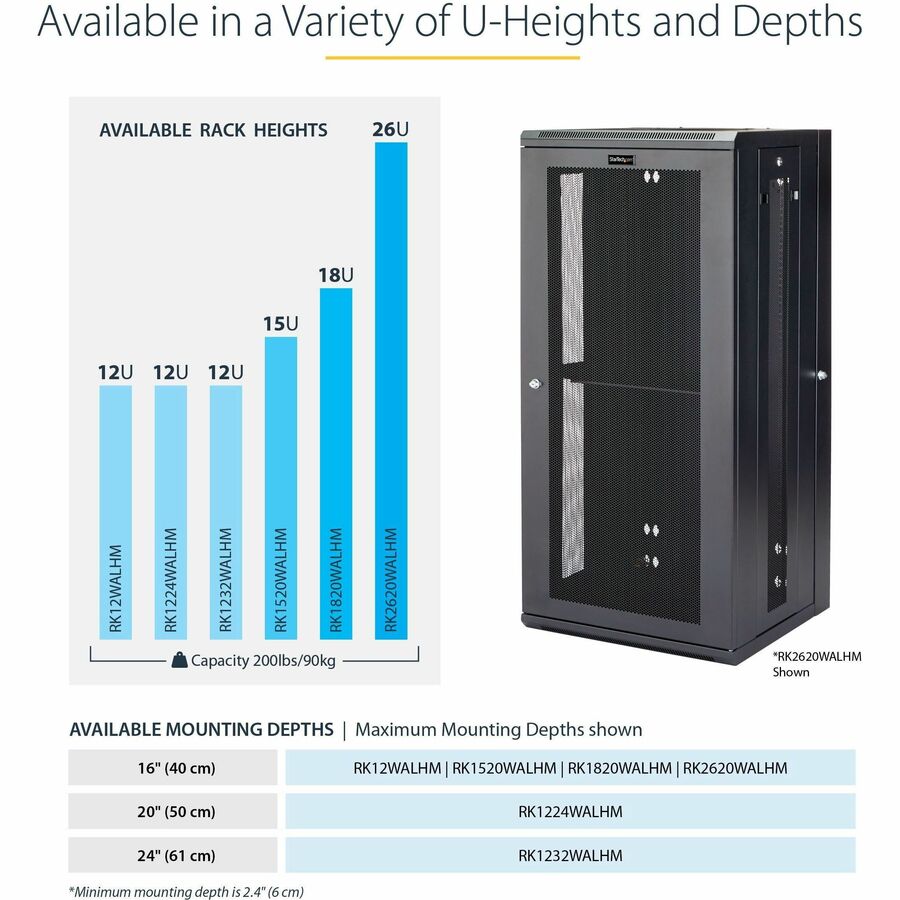

26U capacity supporting extensive networking equipment
- Optimized for server rack mount installations
- Consistent EIA-310 compliance for universal equipment compatibility
-
Removable side panels to ensure convenient access and maintenance

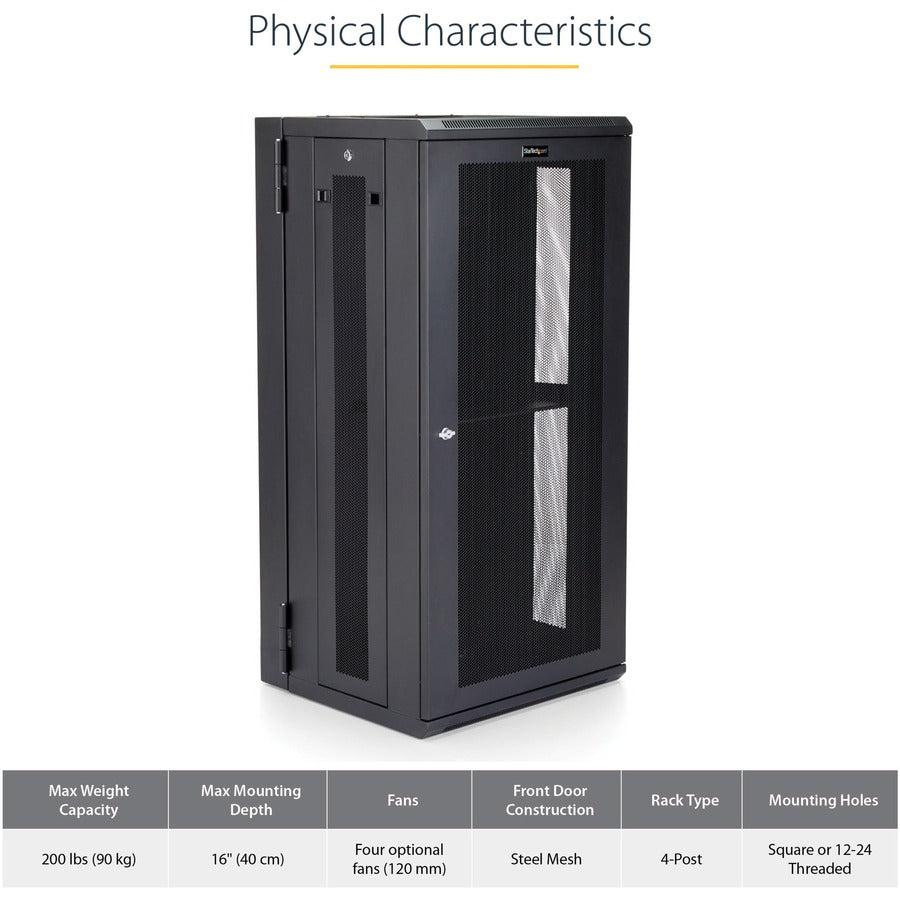

Technical Specifications
| Manufacturer |
StarTech.com |
| Model Number |
RK2620WALHM |
| Type |
Wall Mount Network Cabinet |
| Rack Units |
26U |
| Mounting Style |
19-inch hinged rail system |
| Weight Capacity |
250 lbs maximum load |
| Shelf Included |
1U server rack shelf |
| Security Features |
Lockable front and rear doors |
| Compatible Systems |
EIA-310 compliant rack mount equipment, servers, networking gear |
Frequently Asked Questions
Q: What is the weight capacity of this wall mount server rack?
A: The cabinet supports up to 250 lbs, making it suitable for most server rack mount equipment and networking devices.
Q: Is this compatible with standard 19-inch rack equipment?
A: Yes, it's engineered for 19 inch network rack standards. The hinged mounting rails accommodate all EIA-310 compliant equipment including servers, switches, and patch panels.
Q: How easy is the installation and assembly process?
A: Very straightforward — this wall mounted rack cabinet comes with comprehensive mounting hardware and assembly instructions, typically taking 1-2 hours for complete installation.
Q: Are both the doors and side panels lockable for security?
A: The front and rear doors feature secure locking mechanisms. The removable side panels provide convenient access but are not individually lockable — the door locks provide primary security.
