Description
StarTech.com 2S1P PCI Serial Parallel Combo Card with 16550 UART - IEEE 1284 Card - Serial Parallel PCI - PCI Serial Adapter
StarTech.com 2S1P PCI Serial Parallel Combo Card with 16550 UART. Host interface: PCI, Output interface: Parallel, Serial, Expansion card form factor: Low-profile. Product colour: Green, Certification: CE, FCC, UL, TAA, REACH. Chipset: ASIX - MCS9835CV, Baud rate: 115.2 Kbit/s, FIFO (First In, First Out): 32 B. Windows operating systems supported: Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium..., Server operating systems supported: Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server..., Other operating systems supported: Windows Embedded POSReady 2009,Windows XP Embedded. Width: 20 mm, Depth: 120 mm, Height: 120 mm
Add a parallel port and two RS-232 serial ports to your PC through a PCI expansion slot

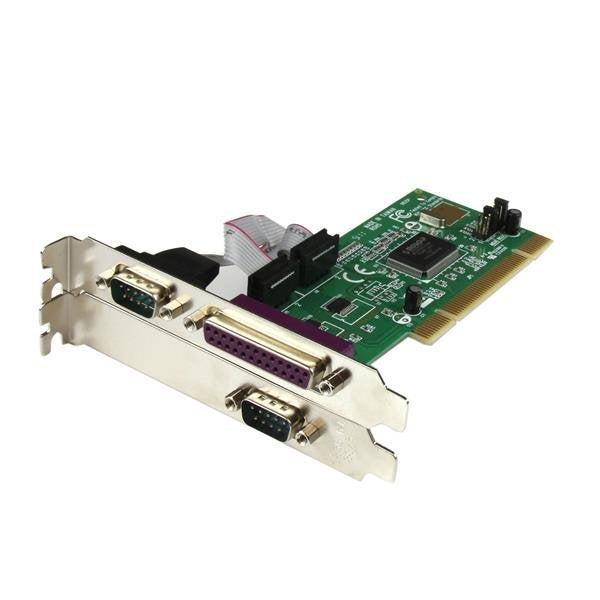

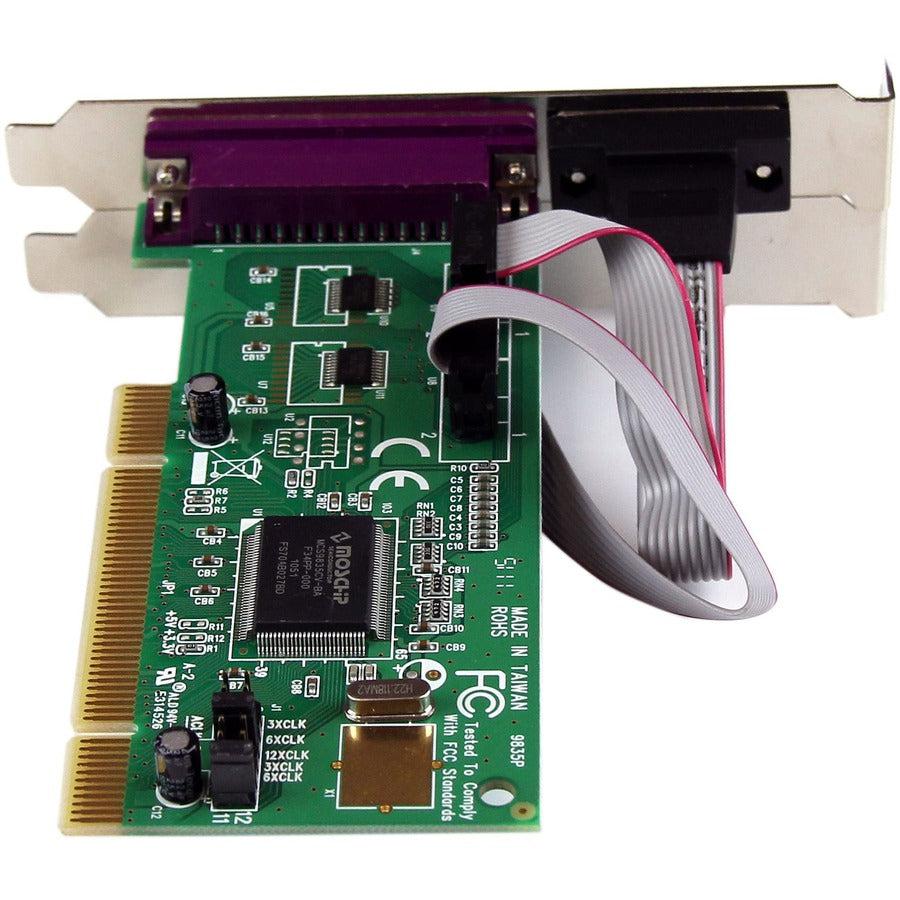

The PCI2S1P PCI Serial/Parallel Combo Card turns a PCI slot into two external 16C550 serial ports and one external EPP/ECP parallel port - an all-in-one solution that gives you both parallel and serial connections while taking up only one PCI slot.
Suitable for installation in a small form factor computer, the PCI serial/parallel card includes an optional low profile/half-height mounting bracket that makes installation easy.
The serial/parallel combo card is PCI plug and play ready and supports IRQ sharing for fast, simple installation. The combo card is supported in virtually any Microsoft Windows operating environment (Windows 7, Server 2008 R2, Vista, XP, ME, 2000, 98, 95 and NT4), and is backed by a StarTech.com Lifetime Warranty and free lifetime technical support.
The StarTech.com Advantage
- Guaranteed compatibility with any PC running Windows, DOS or Linux for simple integration into your application - All three ports share only one IRQ, minimizing system resources required for the card - Easy to install and use with full step-by-step instruction providing a hassle free serial solution
General Information
Manufacturer
StarTech.com
Manufacturer Website Address
http://www.startech.com
Brand Name
StarTech.com
Product Name
2S1P PCI Serial Parallel Combo Card with 16550 UART
Product Type
Serial/Parallel Combo Adapter
UPC
065030781022
Height
4.7"
Width
0.8"
Weight (Approximate)
2.30 oz
Miscellaneous
Package Contents
2S1P PCI Serial Parallel Combo Card with 16550 UART
