StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack - 3ft/1m male DB9 to 3.5 mm serial control cable configure serial devices with a 3.5mm audio jack; High quality 28 AWG copper wires with Al-Mylar cable shielding; Works with computers that are equipped with a DB9 9pin serial ports to configure displays

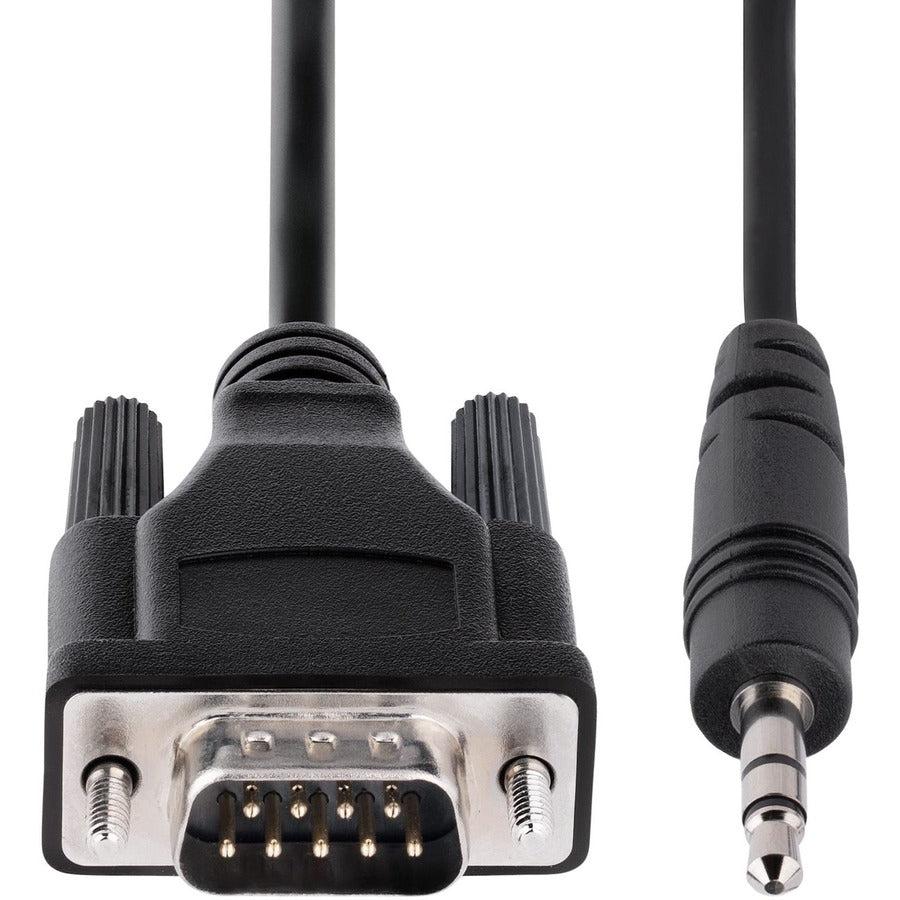

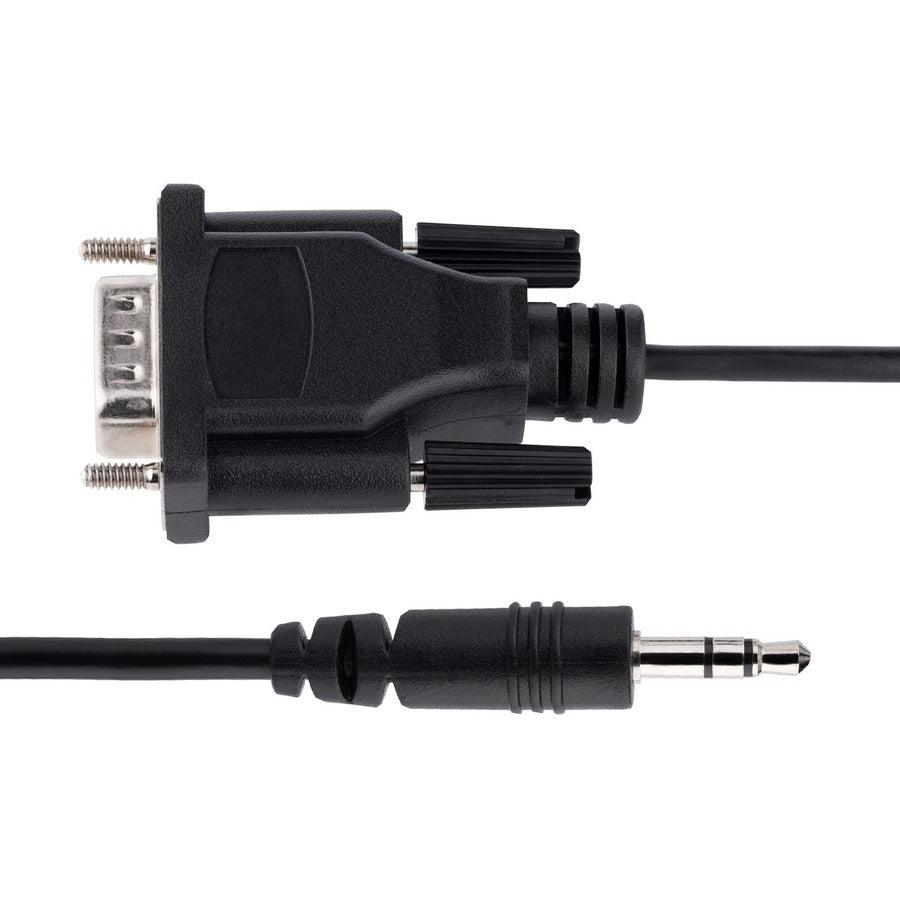

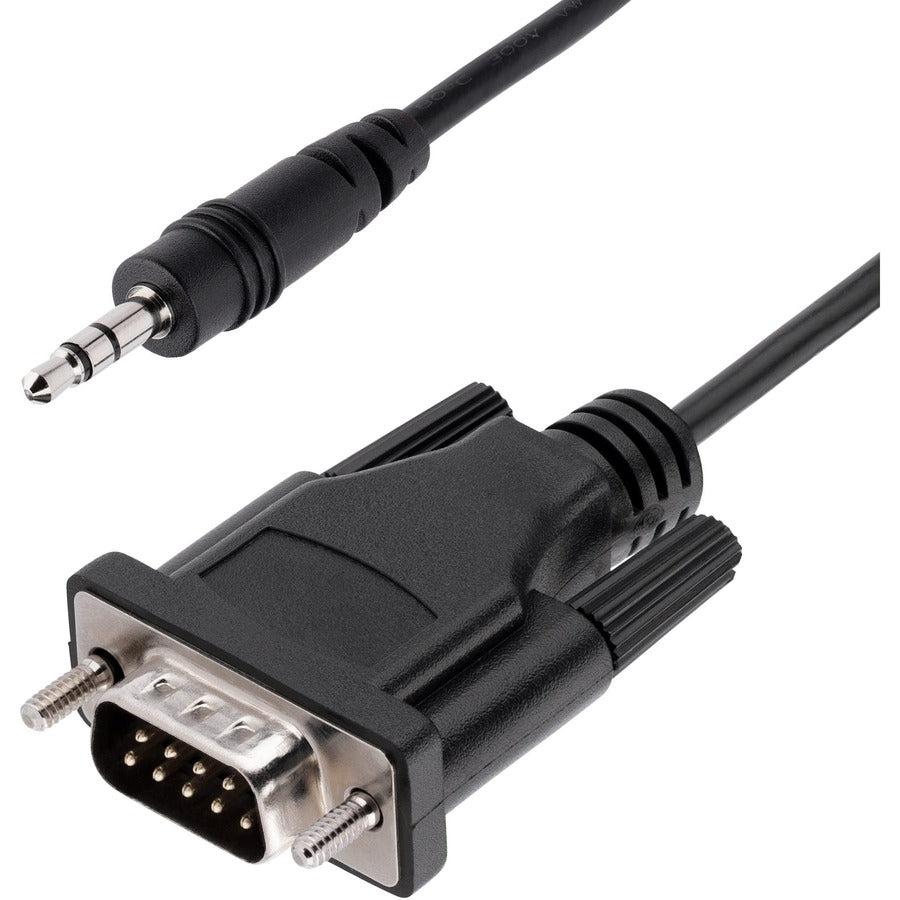

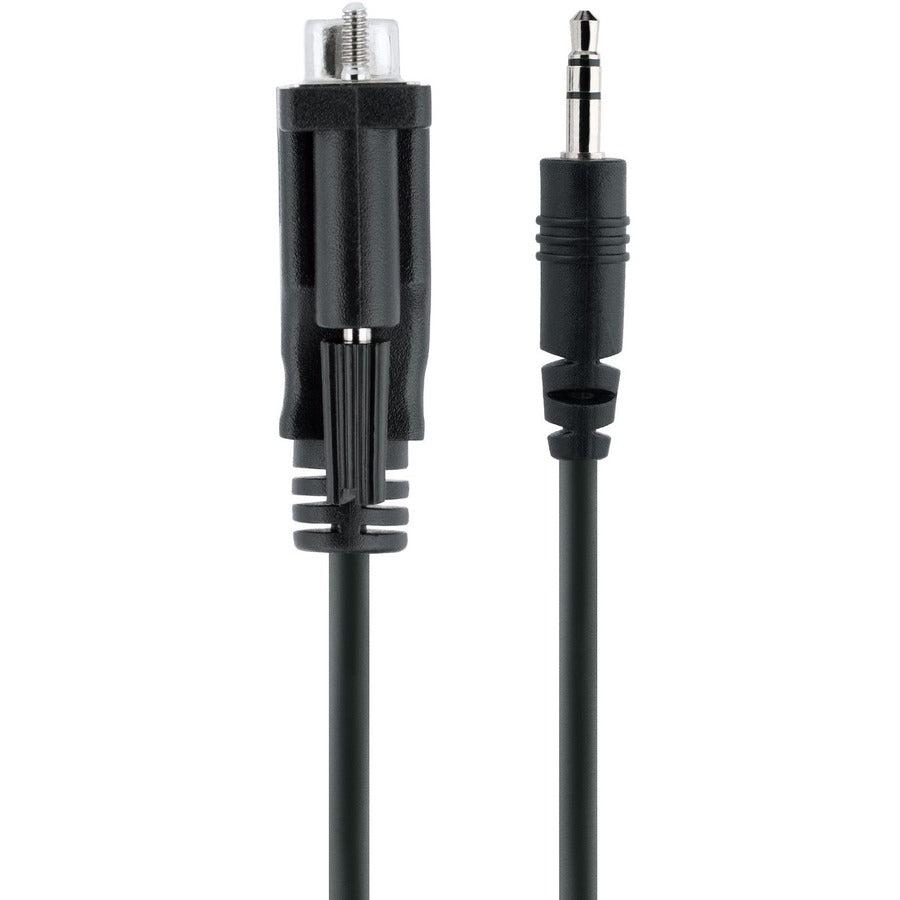

This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
