Description
StarTech.com 4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 Card - 16950 UART - Expansion Card - Windows & Linux (PEX4S953)
StarTech.com 4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 Card - 16950 UART - Expansion Card - Windows/Linux. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Full-height / Low-profile. Product colour: Green, Mean time between failures (MTBF): 214358 h, Certification: CE, FCC, Microsoft WHQL. Chipset: Asix AX99100, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Server operating systems supported: Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows.... Width: 63 mm, Depth: 75 mm, Height: 15 mm
PCI Express to Serial Adapter | 921.6Kbps | Windows and Linux Compatible

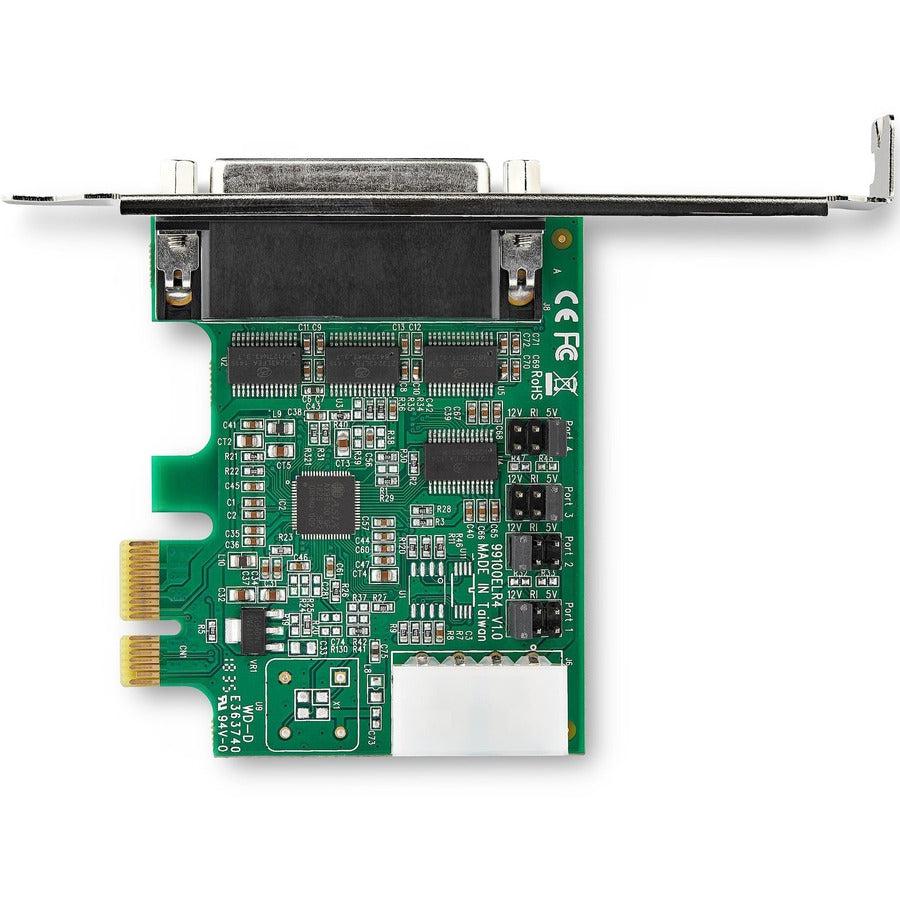

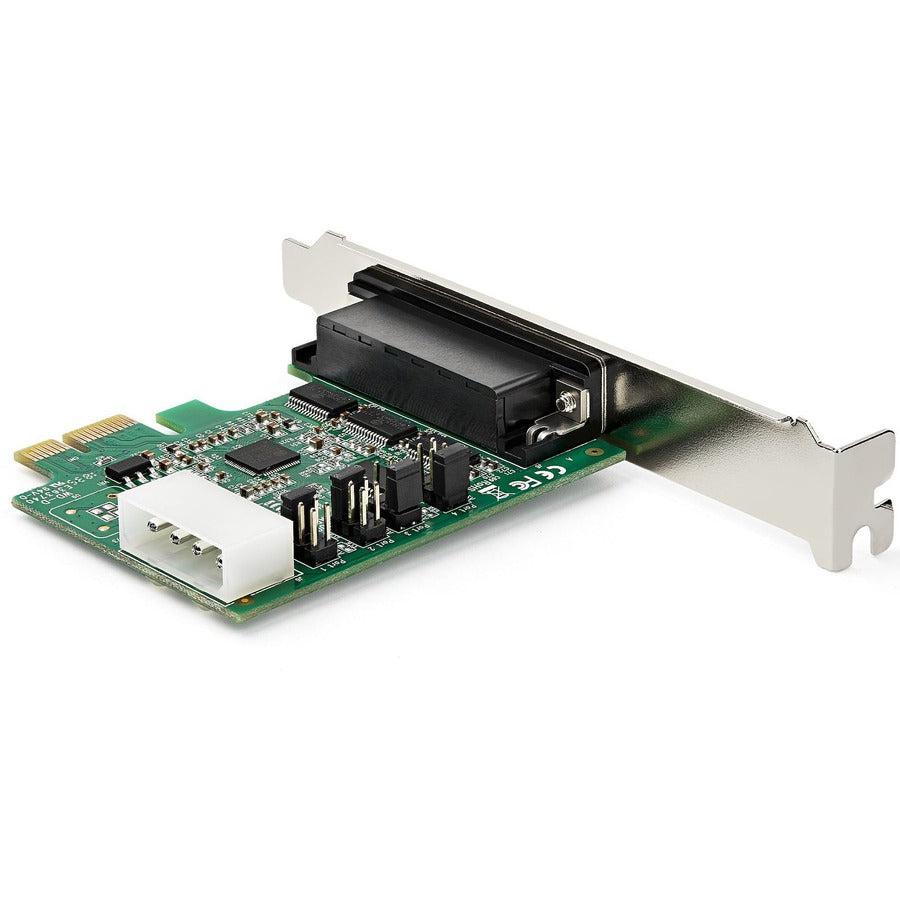

This PCI Express RS232 serial adapter card lets you add four RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The 4 port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this multiport PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-sized bracket, and includes an optional low-profile bracket, so installation is easy regardless of the case form factor. This expansion card is a direct replacement for PEX4S952.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
Industry standard 16950 UART compatible
Supports max baud rate of up-to 921.6Kbps
Provides 5/12V power output on Pin 9 when external power is connected
256-byte depth FIFO cache per transmitter and receiver
Supports 9, 8, 7, 6, 5 data bits (one per port)
Asix AX99100 chipset
Base PCI Express 1.1 compliant
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
PEX4S953 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage

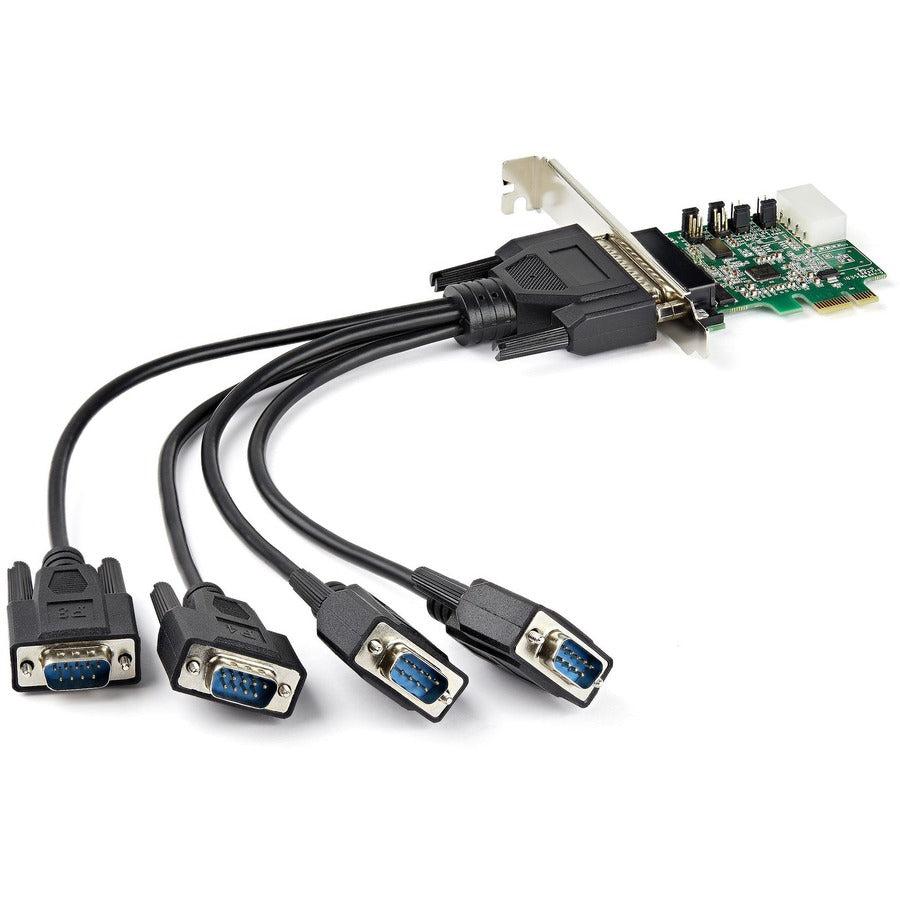

- 4 PORT SERIAL CARD: Serial controller card w/ 16950 UART based on ASIX AX99100, allows 4x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer - OPTIONAL CONFIGURABLE POWER: PCIe multiport serial card provides 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 4 ports are individually configurable; DB44 to 4x DB9 breakout cable incl - STANDARD PROFILE & LOW PROFILE BRACKET: PCI Express RS232 serial adapter card has standard bracket pre-installed & 1x low profile bracket incl for versatile install; Supports Windows XP and up & Linux
