StarTech.com Ethernet Extender Kit, Up to 0.5mi (800m), Ethernet Booster - Short-haul modem - 100Mb LAN - 10Base-T, 100Base-TX - up to 2620 ft
-
Extend Network Connectivity
The unmanaged LAN extender utilizes the pairs of wires within a UTP cable to function as a bridge, extending a local network beyond the standard 328ft (100m) limit of a UTP cable. Use one or two pairs of twisted wire to achieve different speeds and distances to better suit the setup. Achieve up to 984ft (300m) at 100Mbps with a single pair of wires and up to 0.5mi (800m) at 10Mbps with two pairs of wires.
-
Thoughtful Design
The booster kit ships ready to use in a standard setup (remote and local units). DIP switches allow to change the settings and behavior of the units for a custom deployment. Status LEDs provide a visual indication of the network and various settings that allow quick assessment of the setup.
-
Versatile

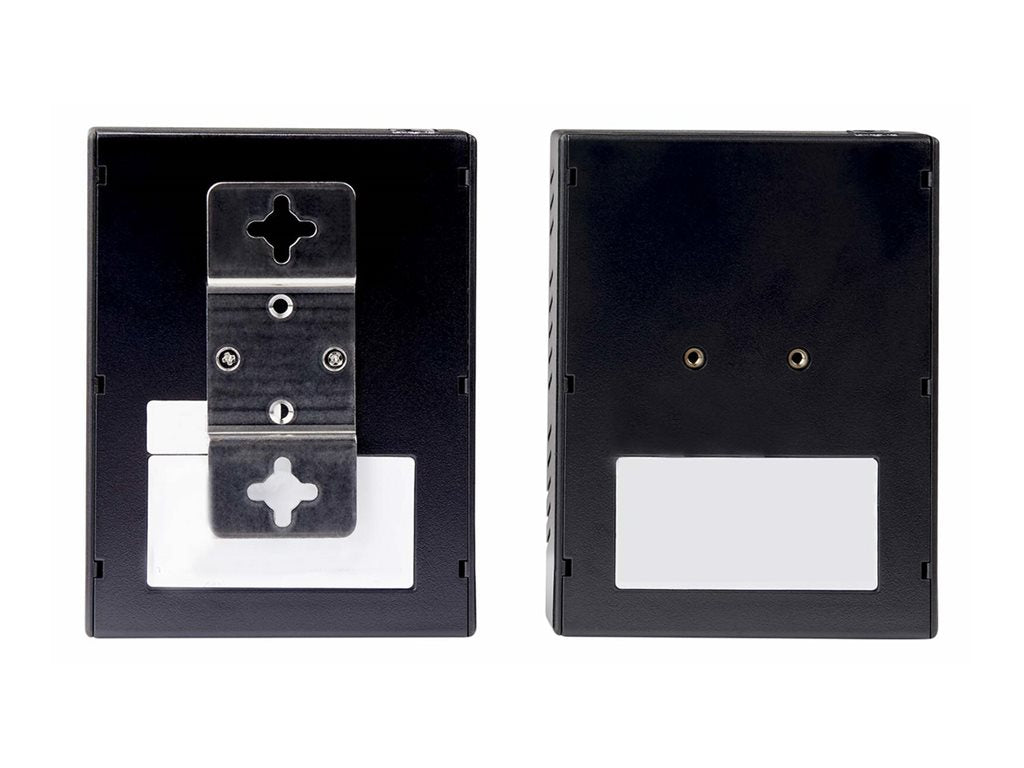

The Long-Range LAN Extender can be wall-mounted, using the included hardware. The kit includes power adapters for each unit. Use the LAN extender adapter for Internet or network access to remote office or branch locations, create remote WiFi APs (Access Points), remote IP-based video surveillance, equipment management and control, VoIP, automation, and more. For maximum compatibility, RJ11 copper cable is supported to connect the remote and local units. Being a transparent network device allows the network extender to support the following Ethernet protocols, such as WoL (Wake-on-LAN), 16K Jumbo frames, 802.1Q VLAN tagging, and PXE boot.
Expand network connectivity with this Ethernet Extender, supporting UTP, Cat5, Cat5e, or Cat6 RJ45 cable for distances of up to 0.5mi (800m). The dual-speed (10/100Mbps) Ethernet signal booster ensures efficient and reliable network connectivity. The signal booster acts as a bridge, extending local networks beyond the typical 100m (328ft) limit of a UTP cable with customizable speeds and distances. The kit features DIP switches and status LEDs for easy setup and monitoring. It can be wall-mounted or surface-mounted; power adapters are included for both units. This extender facilitates various applications, including remote office access, remote WiFi AP, remote equipment management, VoIP, automation, and IP-based video surveillance. Long-range LAN extender supports standard Ethernet protocols such as WoL (Wake-on-LAN), 16K Jumbo frames, 802.1Q VLAN tagging, PXE boot, and many others, enabling seamless integration into existing setups. This RJ45 port extender is backed for two-years, including free lifetime 24/5 multi-lingual technical assistance.
- ETHERNET LAN EXTENDER: Unmanaged single-port dual-speed (10/100Mbps) RJ45 network extender kit; Reach distances of up to 0.5mi (800m) to overcome the typical limit of 328ft (100m) for Cat5/Cat5e/Cat6 copper Unshielded Twisted Pair (UTP) Ethernet cable
- EXTENDED RANGE: Use one or two pairs of cable for variable bandwidth and distance; Reach up to 984ft (300m) at 100Mbps using a single-pair Ethernet cabling & up to 2,624ft (800m) at 10Mbps using two-pair ethernet cabling
- FEATURES: Network extension kit acts as a transparent network device seamlessly passing Ethernet protocols; IEEE 802.1q VLAN tag pass-through, WoL, 16K jumbo, PXE, and more; Supports RJ11/phone line cabling; Includes power adapters for remote/local units

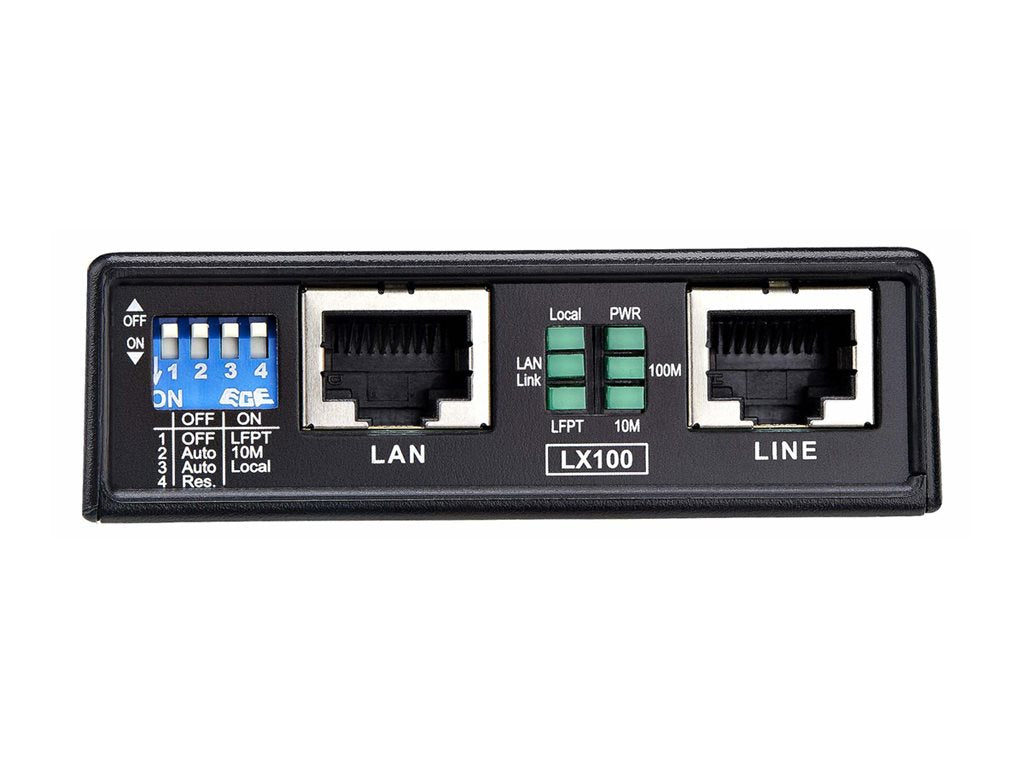

- READY TO USE: Long-range Ethernet booster ships ready for deployment; DIP switches for configuration; LED indicators for power, remote/master mode, network status, LAN speed, and LFPT, allowing IT administrators to monitor and assess network connectivity
- APPLICATIONS: Use the Ethernet range extender for remote Internet or network access, IP video surveillance, remote equipment diagnosis, management and control, WiFi APs, automation, VoIP, remote sensors, and more

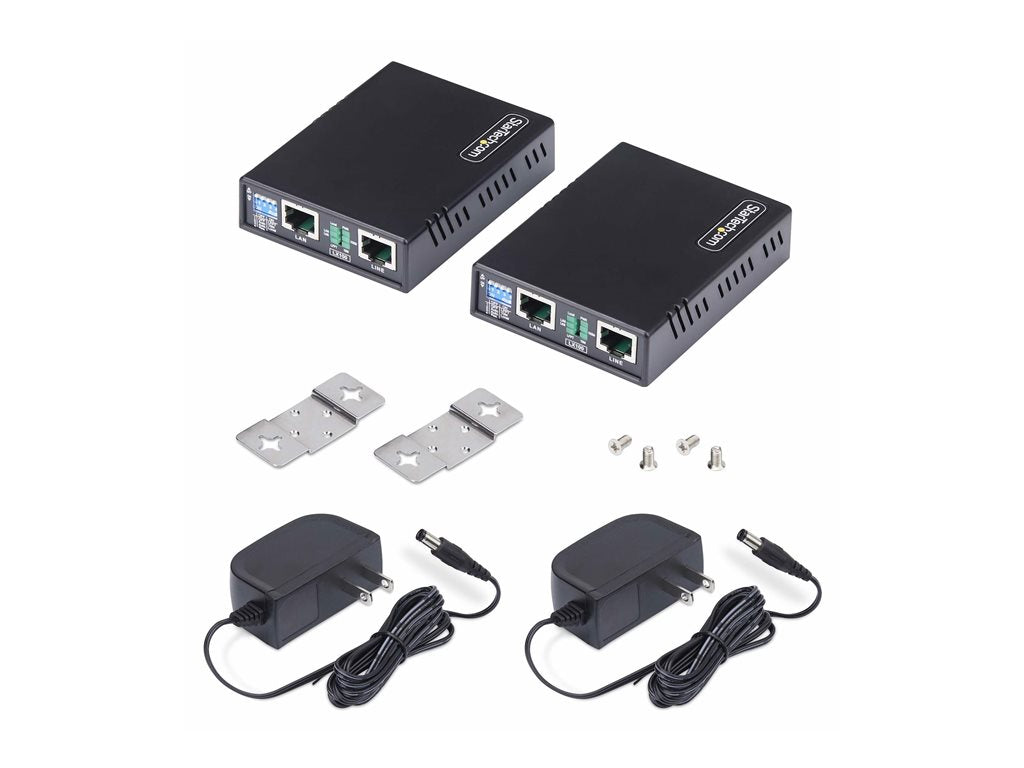

What's in the Box:
- 2 Ethernet Extender
- 2 Power Adapter
- 2 Mounting Bracket
- 4 Mounting Screws
- 1 Quick-Start Guide
