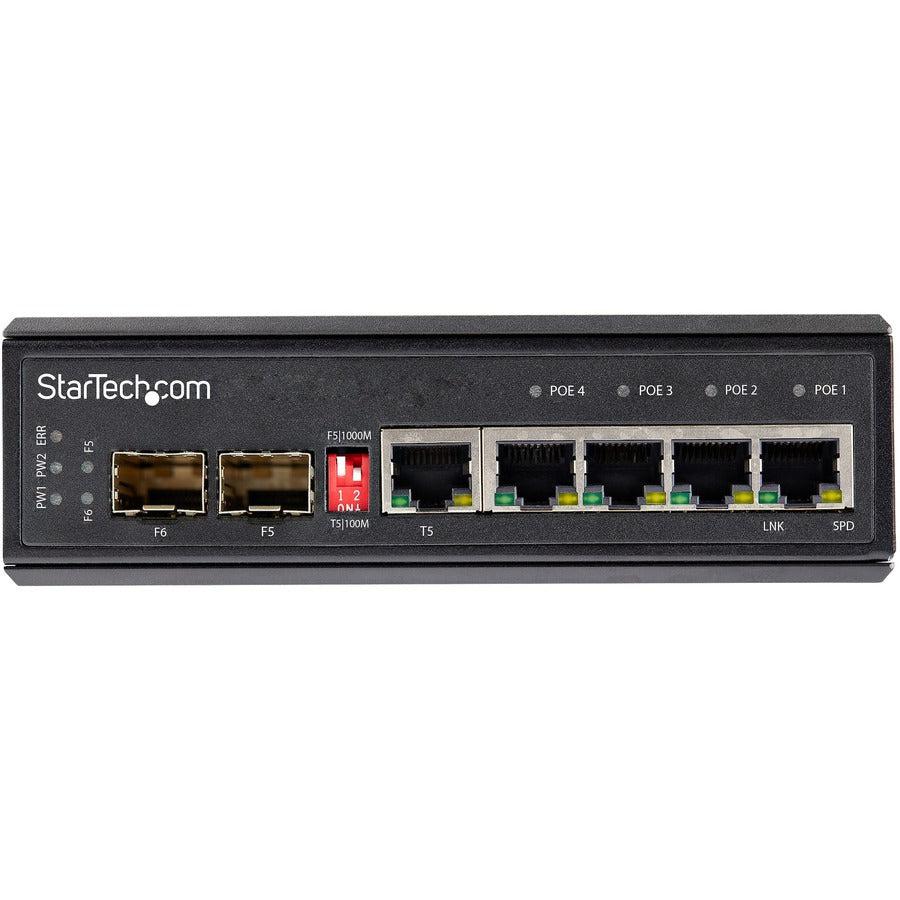

The StarTech.com Industrial 6 Port Gigabit Ethernet Switch is designed for demanding industrial environments, ensuring reliable network connectivity through its rugged construction and advanced features. This switch offers seamless integration with its 4 PoE RJ45 ports and 2 SFP slots, delivering high-speed Ethernet capabilities while providing power and data over a single cable.
Features:
- Industrial-grade design with wide operating temperature range (-40°C to 75°C)
- 4 PoE+ ports delivering up to 30W power per port
- 2 SFP slots for fiber optic connectivity

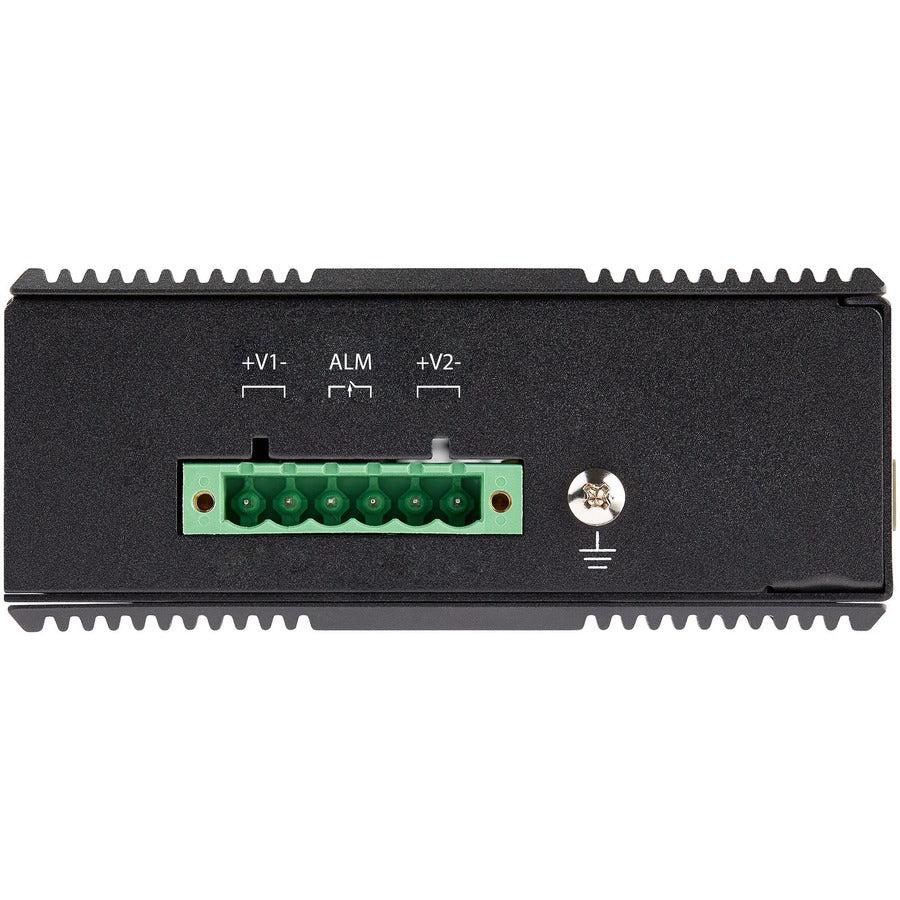

- Supports 12V-48V DC power input for flexible installation in diverse environments
- Unmanaged switch for easy plug-and-play setup
- IEEE 802.3at PoE+ compliance for powering high-demand devices
Technical Specifications:
| Manufacturer |
StarTech.com |
| Model Number |
IES1G52UP12V |
| Type |
Unmanaged Industrial Ethernet Switch |
| Operating Temperature |
-40°C to 75°C |
| Input Voltage |
12V-48V DC |
| Dimensions (W x D x H) |
155 mm x 115 mm x 40 mm |
| Weight |
0.9 kg |
| Ports |
4 RJ45 PoE+, 2 SFP |
FAQs:
What is the maximum power output per PoE+ port?
Each PoE+ port can deliver up to 30W of power, suitable for devices like IP cameras and access points.
Can this switch be used with fiber optic cables?
Yes, it is equipped with 2 SFP slots for fiber optic connectivity, allowing for long-distance network deployment.
Is the switch suitable for harsh industrial environments?
Absolutely, it has an industrial-grade design with a wide temperature range and rugged housing to withstand challenging conditions.
Does the switch require configuration?
No, it is an unmanaged switch, making it a plug-and-play solution that doesn't require complex setup.
