Startech.Com Video Wall Mount - Pop-Out Design - Micro-Adjustment

Startech.Com Video Wall Mount - Pop-Out Design - Micro-Adjustment

SKU:VIDWALLMNT

Regular price $390.94
Regular price Sale price $390.94
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          StarTech.com Video Wall Mount - For 45" to 70" Displays - Pop-Out - Micro-Adjustment - Steel - VESA Wall Mount - TV Video Wall System (VIDWALLMNT)

          StarTech.com Video Wall Mount - Pop-Out Design - Micro-Adjustment. Maximum weight capacity: 70 kg, Minimum screen size: 114.3 cm (45"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -5 - 3°. Product colour: Black

          TV Video Wall System | Steel | Anti-Theft | For 45" to 70" Displays

          This professional video-wall mount features an innovative pop-out design that enables fast and easy display alignment and adjustment, within a multi-display video wall.

          A Versatile Video Wall Mounting System

          Engineered with heavy-duty steel, the video-wall mount securely supports 45" to 70" displays, weighing up to 154 lb. (70 kg).

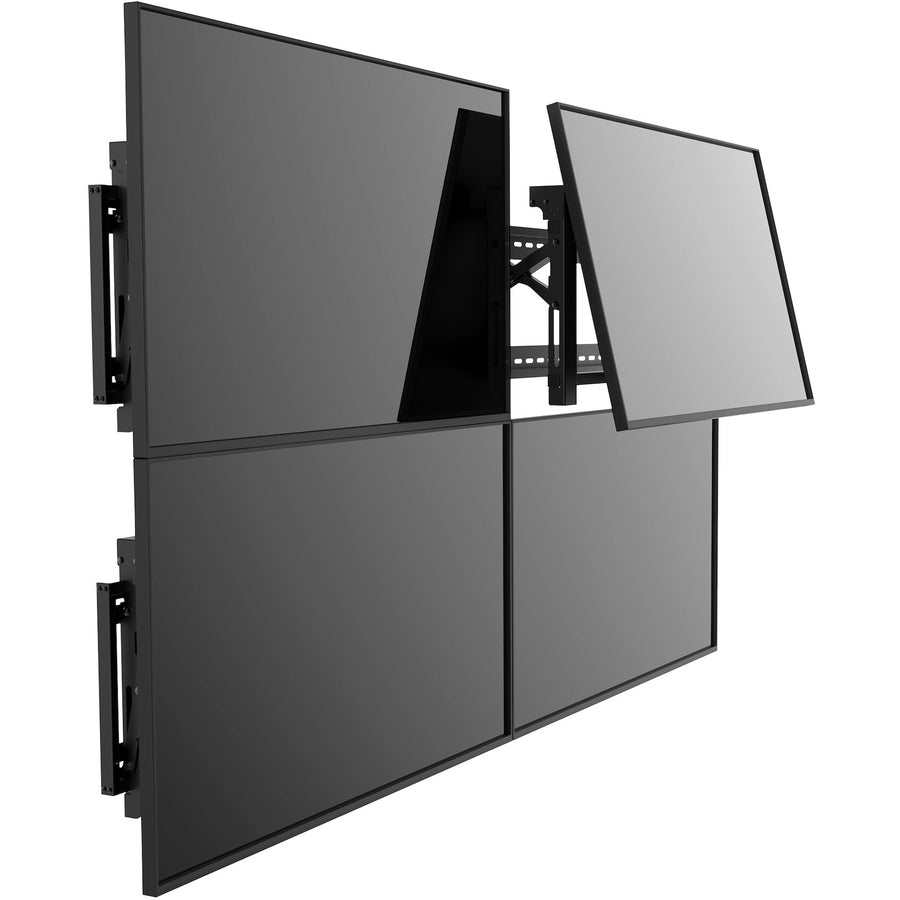

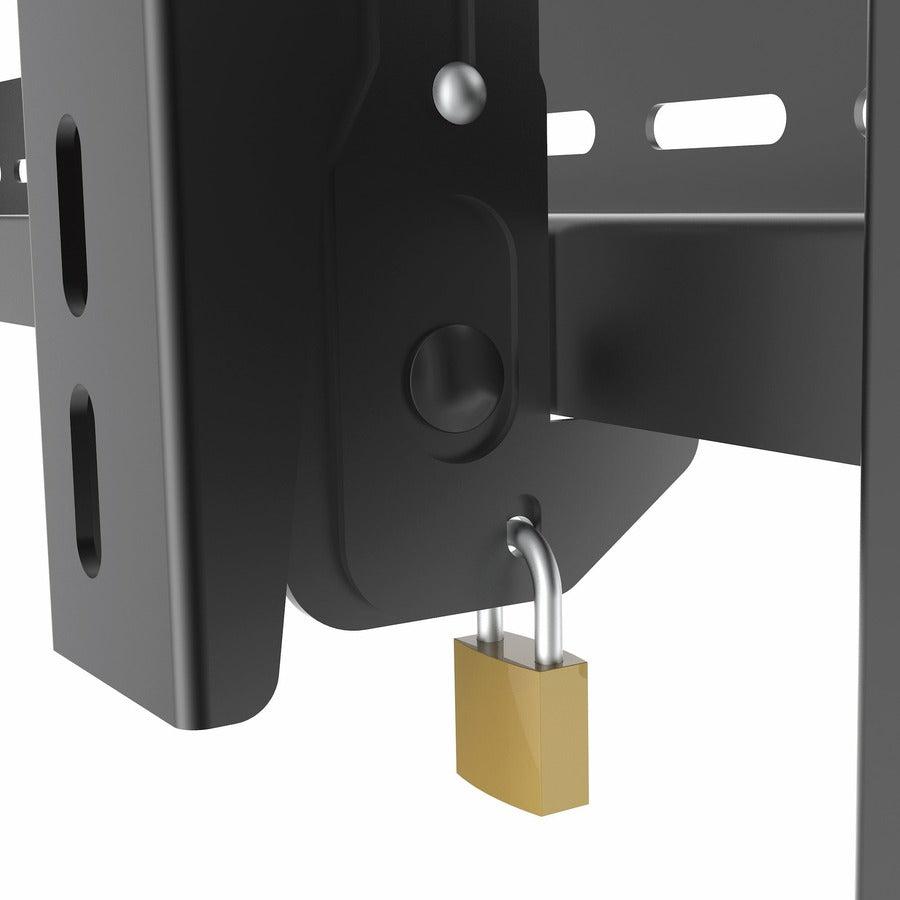

          Using multiple VIDWALLMNT wall mounts, you can create an impressive video wall, enabling you to align your displays in unison. It’s the ideal solution for public, business and commercial displays and includes a theft deterrence feature (padlock required).

          Align Your Displays Seamlessly

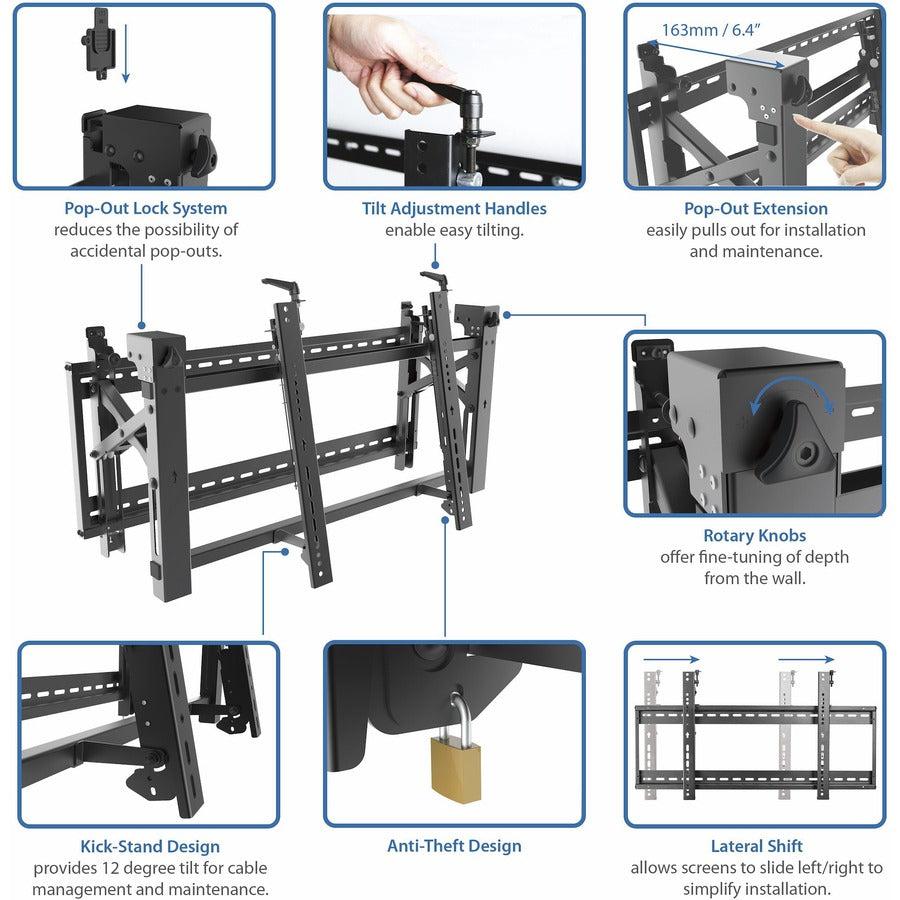

          With its unique pop-out design, the video wall mount helps you align your displays with perfect precision. Once installed, you simply press gently on the front of the display and the mount extends out from the wall for rear-screen access. This pop-out feature makes it easy to adjust the position and angle of the display, or replace a display when required.

          The video-wall mount features 6 points of micro-adjustment, with vertical, tilt and swivel adjustments, to provide exact display alignment and an optimum viewing angle.  You can tilt your display +3 / -5 degrees, adjust the swivel angle +1.2 / - 1.2 degrees, and rotate the display +3 / - 3 degrees. The video-wall mount also features lateral shift brackets, making it easy to move the display to the left or right for ideal alignment in your video wall.

          Easy Installation and Maintenance

          This video-wall mounting system is designed for easy set-up and maintenance. The pop-out design also assists in installation and maintenance, plus a convenient kickstand allows you to tilt the display up to 12 degrees giving you extra room when adjusting cables or accessing ports.

          The VIDWALLMNT is backed by a StarTech.com 5-year warranty and free lifetime technical support.

          The StarTech.com Advantage

          - Create an impressive video wall with this flat-screen TV mount, supporting a 45" to 70" display (theft deterrent design); Heavy-duty steel construction supports displays up to 154 lb. (70 kg)
          - Pop-out design extends up to 12" (306 mm) to give rear-screen access for display adjustment
          - 6 points of micro-adjustment (vertical, tilt and swivel) for exact display alignment

          Specifications :

          General Information

          Manufacturer StarTech.com
          Manufacturer Part Number VIDWALLMNT
          Manufacturer Website Address http://www.startech.com
          Brand Name StarTech.com
          Product Name Video Wall Mount - Pop-Out Design - Micro-Adjustment
          Product Type Wall Mount
          UPC 065030870030
          Product ColorBlack
          Height19"
          Width12"
          Depth36.8"
          Weight (Approximate)34.70 lb

          Miscellaneous

          Package Contents
          • 1 x Wall Plate
          • 1 x Adjustment Module
          • 2 x Adapter Brackets
          • 2 x Stoppers
          • 2 x Plastic Tabs
          • 1 x Hex Key
          • 4 x M5x14 mm Screws
          • 4 x M6x14 mm Screws
          • 4 x M8x20 mm Screws
          • 4 x M6x30 mm Screws
          • 4 x M8x30 mm Screws
          • 4 x Rectangular Washers
          • 8 x Small Spacers
          • 4 x Large Spacers
          • 6 x 6.3x55 mm Screws
          • 6 x Concrete Anchors
          • 6 x Washers
          • 1 x Instruction Manual
          FeaturesSwivel
          Environmentally FriendlyYes

          Warranty

          Limited Warranty5 Year
