| Product SKUs |
| CSE-502L-200B |
SuperChassis 502L-200B (Black) |
| Form Factor |
| Form Factor |
9.8"-Depth Mini 1U chassis support for maximum motherboard size - 9.6" x 9.6" |
| Processor Support |
| Processor Support |
Single Processor Support: Intel® Atom™ series |
| Dimensions |
| Height |
1.7" (43mm) |
| Width |
17.2" (437mm) |
| Depth |
9.8" (249mm) |
| Gross Weight |
10 lbs (4.5kg) |
| Available Colors |
Black |
| Expansion Slots |
| Expansion Slots |
1x full-height half-length PCI expansion slot (Optional) (Riser Card Required) |
| Drive Bays |
| Internal Bay |
- 1x 3.5" Internal Drive Bay (Standard)
- OR 2x 2.5" Internal Drive (Optional)
- OR 1x 2.5" (Optional)
- SAS or enterprise SATA HDD only recommended
|

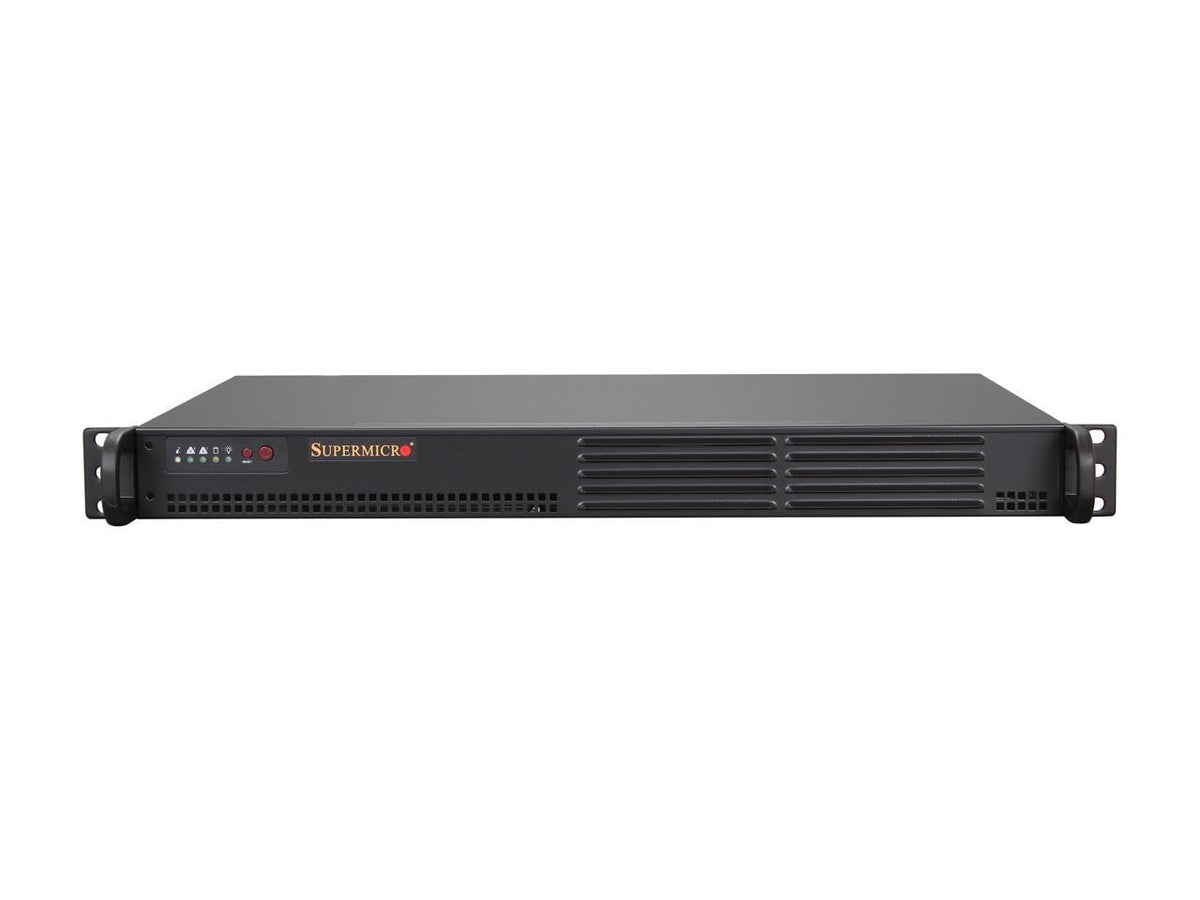

| Front Panel |
| Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power LED
- Hard drive activity LED
- 2x Network activity LEDs
- System Overheat LED
|
| Motherboard and Server(s) |
| Motherboard (for CSE-502L-200B) |
- X7SPA-H
- X7SPE-HF
- X7SPA-HF
|
| Server(s) for SC502L-200B |
5015A-EHF-D525 |
| Operating Environment (System) |
| Operating Temperature Range |
5°C ~ 35°C (41°F ~ 95°F) |
| Non-Operating Temperature Range |
-40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Relative Humidity Range |
8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
5% - 95% (non-condensing) |
| Power Supply and Distributor |
| Power Supply |
200W Low Noise AC-DC power supply with PFC |
| AC Voltage |
100 - 240V, 50-60Hz, 3-1.5 Amp Max |
| +5V |
16.0 Amp |
| +5V standby |
2.0 Amp |
| +12V |
15.0 Amp |
| -12V |
0.8 Amp |
| +3.3V |
17.0 Amp |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC |
- USA - UL listed, FCC
- Canada - CUL listed
- EN 60950/IEC 60950-Compliant
- Europe/CE Mark
- Germany - TUV Certified
|
