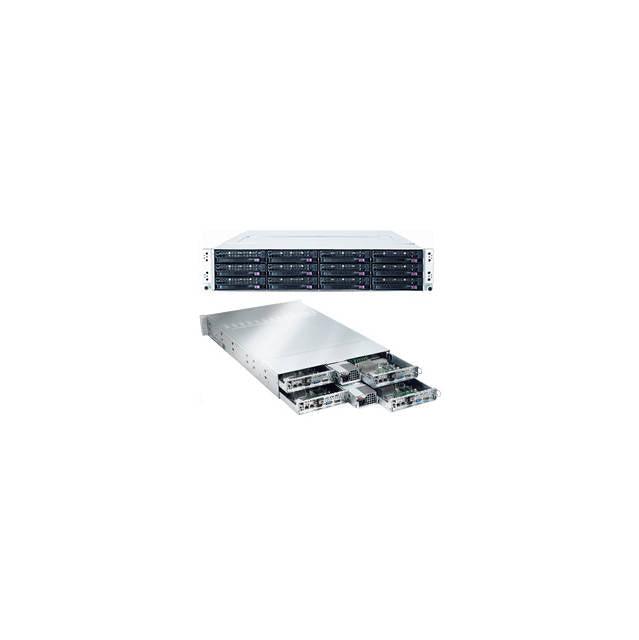

Name: Supermicro Superserver Sys-5026Ti-Btrf Four Node Lga1156 920W 2U Rackmount Server Barebone System (Black)
Brand: Supermicro
SKU: SYS-5026TI-BTRF
Price: 2418.42 USD
Availability: InStock

Supermicro Superserver Sys-5026Ti-Btrf Four Node Lga1156 920W 2U Rackmount Server Barebone System (Black)

Roll over image to zoom in Click on image to zoom

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email [email protected].

Mfr Part Number: SYS-5026TI-BTRF (BLACK)
Motherboard: 4x Super X8SIT-F
Processor per Node: LGA1156
- Supports Intel Xeon X3400/ L3400 Series or Intel Core i3/ Pentium G6950/ Celeron G1101 Series processors
Chipset per Node: Intel 3420
Memory per Node: 6x 240pin DDR3-1333/1066/800 DIMMs, Supports up to 32GB ECC/REG Memory or up to 16GB ECC/Unbuffered Memory
Slots per Node: 1x PCI-Express 2.0 x16 slot (Low Profile)
SATA per Node: 6x SATA2 Ports, Support RAID 0, 1, 5 (Windows); Support RAID 0, 1 (Linux)
Video per Node: Matrox G200eW Graphics w/16MB DDR2 Video memory
LAN per Node: Dual Intel 82574L Gigabit Ethernet Controllers; 1x Realtek RTL8201N PHY (dedicated IPMI)
Drive Bays per Node: 3x 3.5" SATA Hot-swap Drive Bays
Backplane per Node: 2U Hard drive Backplane
Ports per Node: 7x USB 2.0 Ports (2 rear, 4 via header, 1 on board), 1x Serial Port, 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: 2U Rackmount
Power Supply: 920W 80 PLUS Platinum Certified high-efficiency (94%+) AC-DC Redundant power supply w/ PMBus and I2C
System Cooling: 4x Cooling Fans
Front Panel:
- Buttons: Power On/Off, UID
- LEDs: Power, Network Activity, System Overheat/ fan fail/ power fail, UID
Color: Black
Dimensions (WxDxH): 17.2 x 28.5 x 3.5 inch / 437.0 x 724.0 x 89.0 mm
Gross Weight: 85.0 lbs / 38.6 kg
RoHS Compliant

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	SYS-5026TI-BTRF
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Line	SuperServer
Product Model	5026TI-BTRF
Product Name	SuperServer 5026TI-BTRF Barebone System
Product Type	Barebone System
UPC	672042066728

Chipset

Chipset Manufacturer	Intel

Graphics Controller Manufacturer	Matrox
Graphics Controller Model	G200eW
Graphics Memory Technology	DDR2 SDRAM

Ethernet Technology	Gigabit Ethernet

Total Number of USB Ports	2
Network (RJ-45)	Yes

Power Description

Maximum Power Supply Wattage	1840 W

Product Color	Black
Height	3.5"
Width	17.2"
Depth	28.5"

Miscellaneous

Package Contents

SuperServer 5026TI-BTRF Barebone System
4 x Super X8SIT-F Motherboard
1 x 2U Black Chassis
4 x Hot-swap adapter
1 x Sup 12x3.5ö SAS/SATA HDD;hot swap
4 x SATA SET OF 3-17/20S-S/20S-RA CM ROUND (2U Twin^2 Hot Swap)
4 x FRONT CTRL CABLE ROUND 16 TO 16 PIN RIBBON 27CM
4 x 2 PIN TO 2 PIN CABLE, 5CM
4 x 4 PIN FAN CABLE FOR 2U TWIN SERVER (15+18 CM)
4 x 4PIN TO 4PIN I2C CABLE, 17CM
1 x DRIVER CD FOR X8 UP MOTHERBOARD
1 x SC827 24PIN SPECIAL OUTPUT POWER DISTRIBUTOR
2 x 1U REDUNDANT 920W PMBus 94% EFFICIENCY
4 x RSC-R1U-E16R Riser Card
4 x 1U PASSIVE CPU HS FOR INTEL LGA1156
12 x Hot-swappable Hard Drive Tray

Environmentally Friendly

Yes

Warranty

Limited Warranty	3 Year

Supermicro Superserver Sys-5026Ti-Btrf Four Node Lga1156 920W 2U Rackmount Server Barebone System (Black)

Volume Purchases and Deal Registration

Description

Supermicro Superserver Sys-5026Ti-Btrf Four Node Lga1156 920W 2U Rackmount Server Barebone System (Black)
