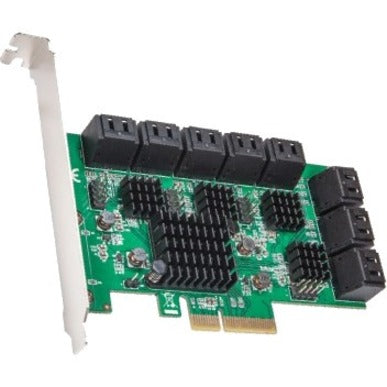

SYBA Multimedia 16 Port SATA III PCIe x4 (x2 Bandwidth) Non-RAID Expansion Card SD-PEX40164
Supports 16 port 6Gb/s SATA III interface,Supports Port Multiplier,Supports Hot-Plug,Supports drive power control and staggered spin-up.Supports SATA Partial / Slumber power management state.
ASM1064, a SATA host controller(AHCI) with upstream PCIe Gen3 x1 and downstream four SATA Gen3 ports. It's a low latency, low cost and low power AHCI controller. With four SATA ports and cascaded port multipliers, ASM1064 can enable users to build up various high speed IO systems, including server, high capacity system storage or surveillance platforms.
ASMedia PCIe product ASM2806, a low latency, low cost and low power 6 lane , maximum 4 downstream ports packet switch. With upstream PCIe Gen3x2 bandwidth,
- PCIe x4 interface (x2 Bandwidht) to 16 ports NONE-RAID SATA III 6Gbps card will allow users add 16X SATA III ports on desktop PCs, Servers, and NAS systems for storage expansions or AHCI boot use.

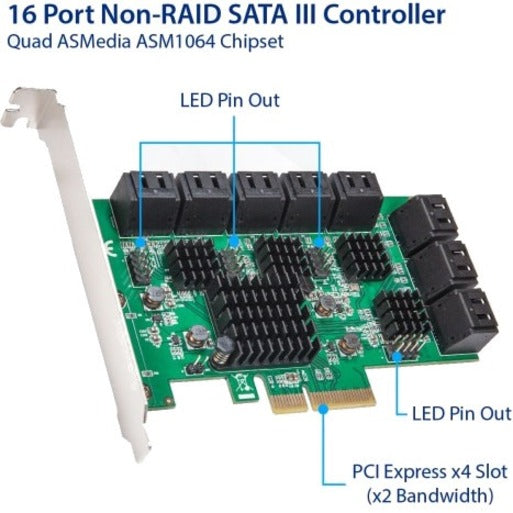

- Select the ASMedia ASM1064 the most stable Non-Raid PCIE 3.0 SATA controller solution. Each SATA 3.0 port will get 6Gbps max speed for AHCI boot and storage.
- ASMedia PCIe product ASM2806, a low latency, low cost and low power 6 lane , maximum 4 downstream ports packet switch. With upstream PCIe Gen3x2 bandwidth,
- Supports Hot Plug and Hot Swap. Supports Native Command Queue (NCQ). Compliance Serial ATA AHCI Spec. Rev. 1.3, Serial ATA Rev. 3.0
- Supports Communication Speeds of 6.0Gbps, 3.0Gbps, and 1.5Gbps. Supports Port Multiplier
Product Type: SATA Controller
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: SYBA Multimedia
Form Factor: Plug-in Card

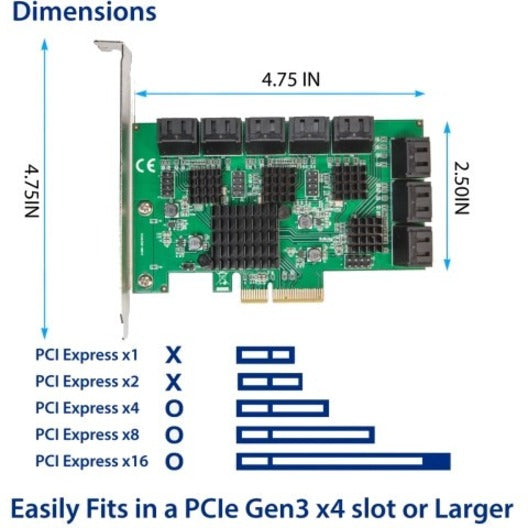

Length: 4.8"
Manufacturer: SYBA Multimedia, Inc
Product Name: 16 Port SATA III PCIe x4 (x2 Bandwidth) Non-RAID Expansion Card SD-PEX40164
Manufacturer Part Number: SD-PEX40164
Manufacturer Website Address: http://www.syba.com
Packaged Quantity: 1
Platform Supported: Linux
Package Contents:
- 16 Port SATA III PCIe x4 (x2 Bandwidth) Non-RAID Expansion Card SD-PEX40164
- 1 x User's Manual
Limited Warranty: 3 Year
