Description
- ATX12V / EPS12V
- Modular
- 80 PLUS GOLD Certified
- 100 - 240 V 47 - 63 Hz

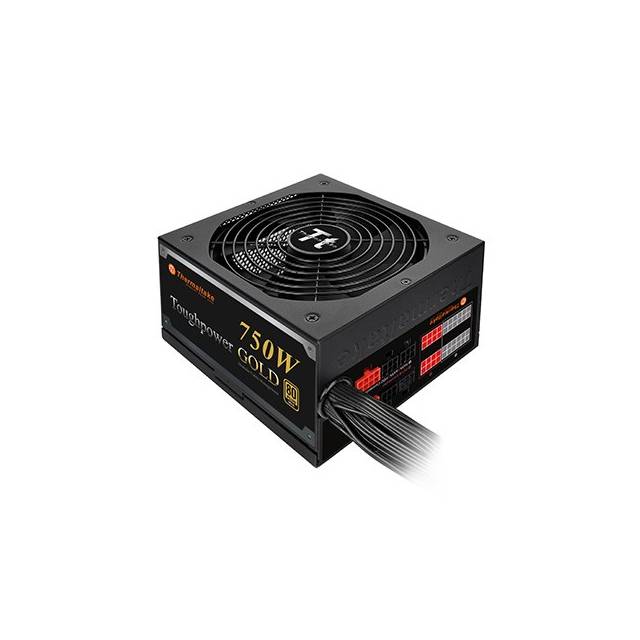

Thermaltake Toughpower 750W Gold (Modular)
The Thermaltake Toughpower series is a premium 80 PLUS Gold certified power supply that uses the highest quality components for stable performance, excellent features with unbeatable efficiency vital to the current high-end system in market even in demanding conditions. With the 80Plus Gold certification for its high power efficiency, and a single strong 12V rail flexibly routes the maximum available power to your CPU and graphics card, offering maximized power usage and easy setup. Toughpower 750W Gold (Modular) comes with modular design to reduce cable clutter; and ultra-quiet fan delivers silent cooling, thus the entire computer and power supply can operate at its peak moment.
Ultra Quiet 140mm Fan
Toughpower 750W Gold series adopt 140mm cooling fan with intelligent fan speed control guarantees cool performance and silent operation.
80 PLUS Gold Certified and Skylake-Ready
Deliver up to 90% efficiency under real world load conditions to promise lowest power losses. In addition, Toughpower Gold Series is already prepared for Intel’s new, sixth-generation Skylake processor to achieve maximum energy savings.
Flat Modular Cables
Toughpower 750W Gold series adopt flat modular cables not only eliminate cable clutter within the system, but takes up less space for better airflow.
100% High Quality Japanese Made Capacitors
Japanese made capacitors provide uncompromised performance and reliability.
Massive and Dedicated +12V Output
Toughpower Series is equipped with a powerful single +12V rail, please see the output specification below:
Specification
| P/N | PS-TPD-0750MPCGUS-1 |
|---|---|
| Type | Intel ATX 12V V2.3 & EPS 12V standards |
| Dimension (H x W x D) | 86mm x 150mm x 160mm |
| Max. Output Capacity | 750W |
| Peak Output Capacity | 900W |
| Color | Black |
| PFC (Power Factor Correction) | Active PFC |
| CPower Good Signal | 100-500 msec |
| Hold Up Time | 12msec (minimum) @ 80% of full load at 115V / 230V input. |
| Input current | 10A |
| Input Frequency Range | 47 Hz - 63 Hz |
| Input Voltage | 100 Vac- 240 Vac |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperature | 40°C to +70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 140mm double ball-bearing fan, 1500±10%R.P.M. |
| Efficiency | 87-92% efficiency @ 20-100% load |
| MTBF | 120,000 hrs minimum |
| Safety Approval | UL/ TUV/ CE/ FCC/ BSMI/ EAC certification |
| PCI-E Connector | PCI-E 6+2pin x 4 |
General Information
| UPC | 841163053201 |
|---|
