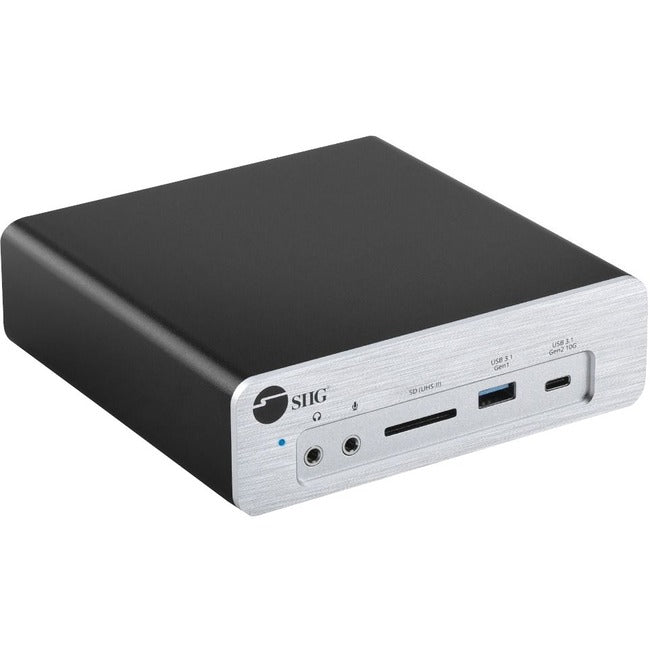

SIIG Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & 87W PD
Advanced docking station transforms a single Thunderbolt 3 port into one Thunderbolt 3 port, one DisplayPort 1.4 port, two USB 3.1 Gen2 Type A/C ports, two USB 3.1 Gen1 Type-A with BC 1.2 ports, one Gigabit Ethernet port, a SD memory card reader, and a stereo audio/microphone connectivity with PD charging up to 87W. Adds 2 storage drives via dual M Key NVME SSD capabilities
Features
-

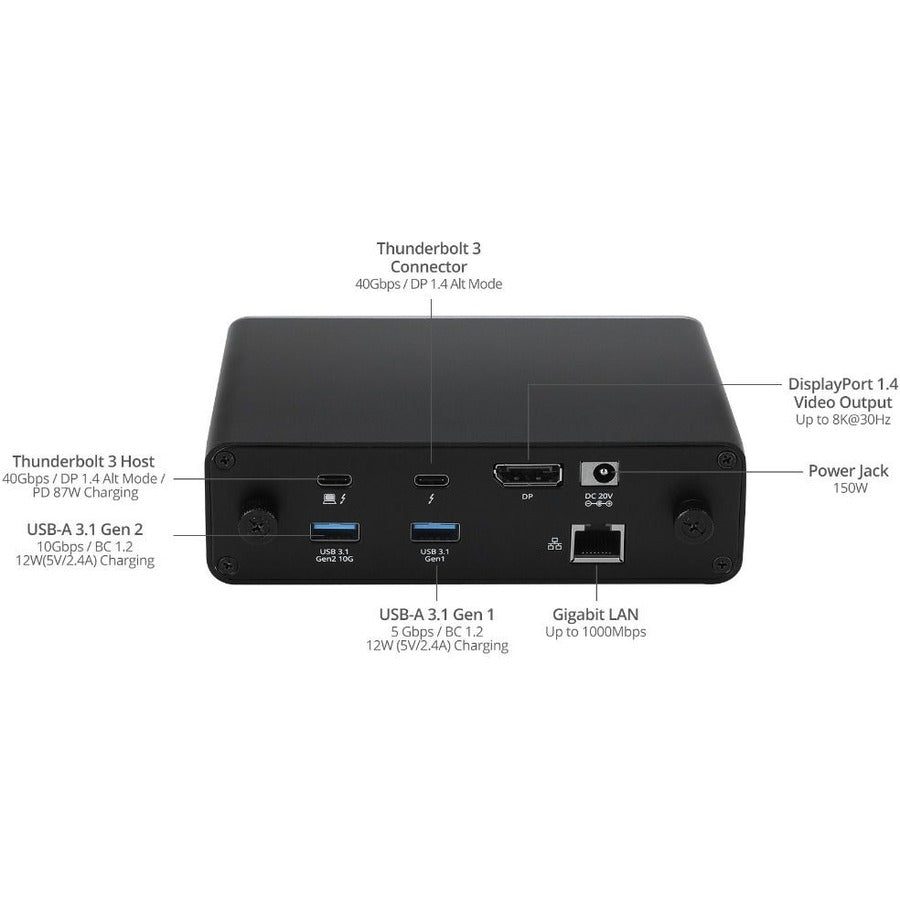

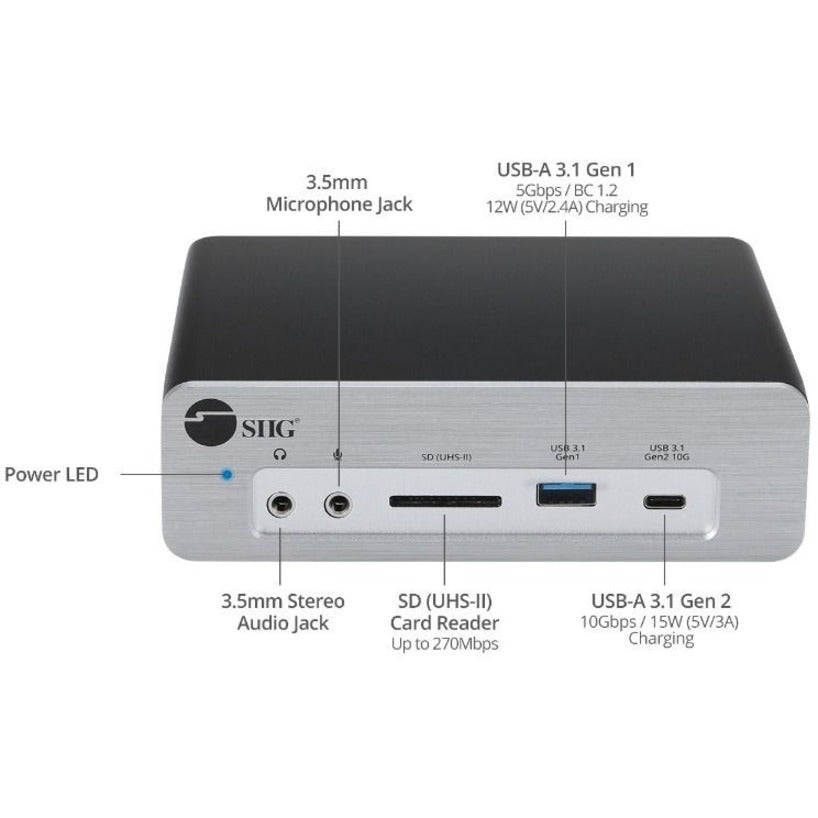

Advanced Docking Station - transforms a single Thunderbolt 3 into one Thunderbolt 3 port, one DisplayPort 1.4 port, two USB 3.1 10Gbps Type A/C ports, two USB 3.1 Gen1 Type-A with BC 1.2 port, one Gigabit Ethernet port, SD (UHS-II) memory card reader and stereo audio/Microphone connectivity with PD charging up to 87 watts -

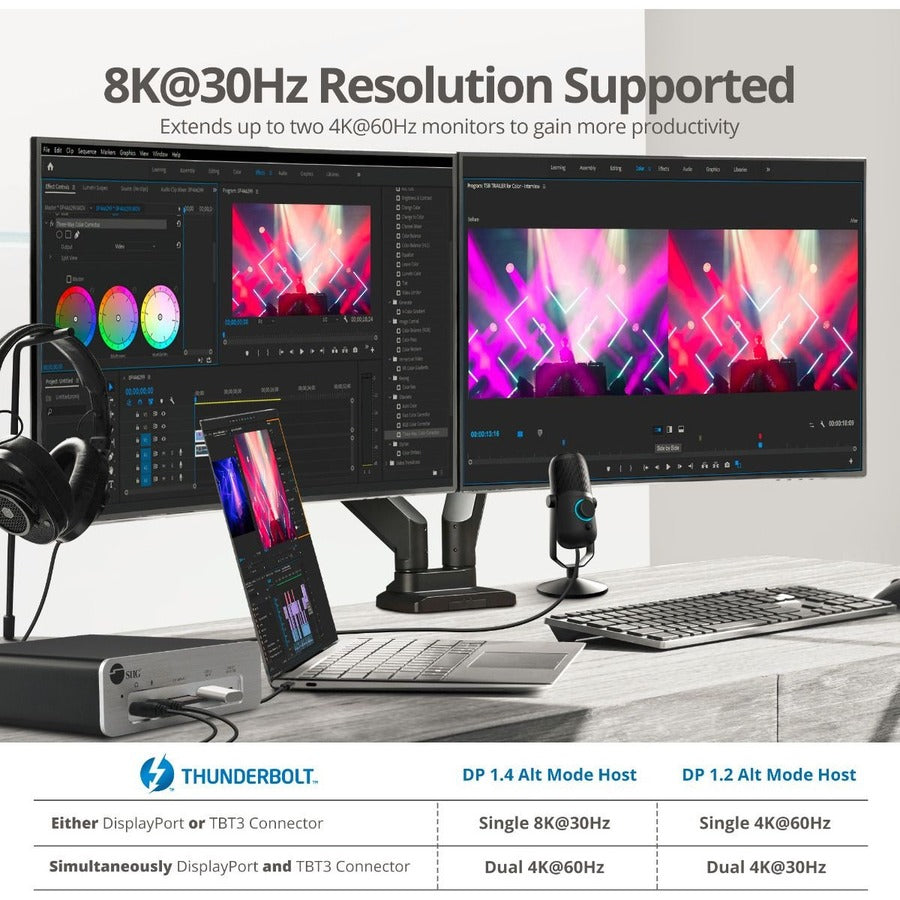

Experience High Resolution Video - Allow you to connect two 4K@60Hz Ultra HD displays simultaneously through Thunderbolt 3 & DP port. A single 8K@30Hz display is supported through the source Thunderbolt 3 and DP 1.4 port -

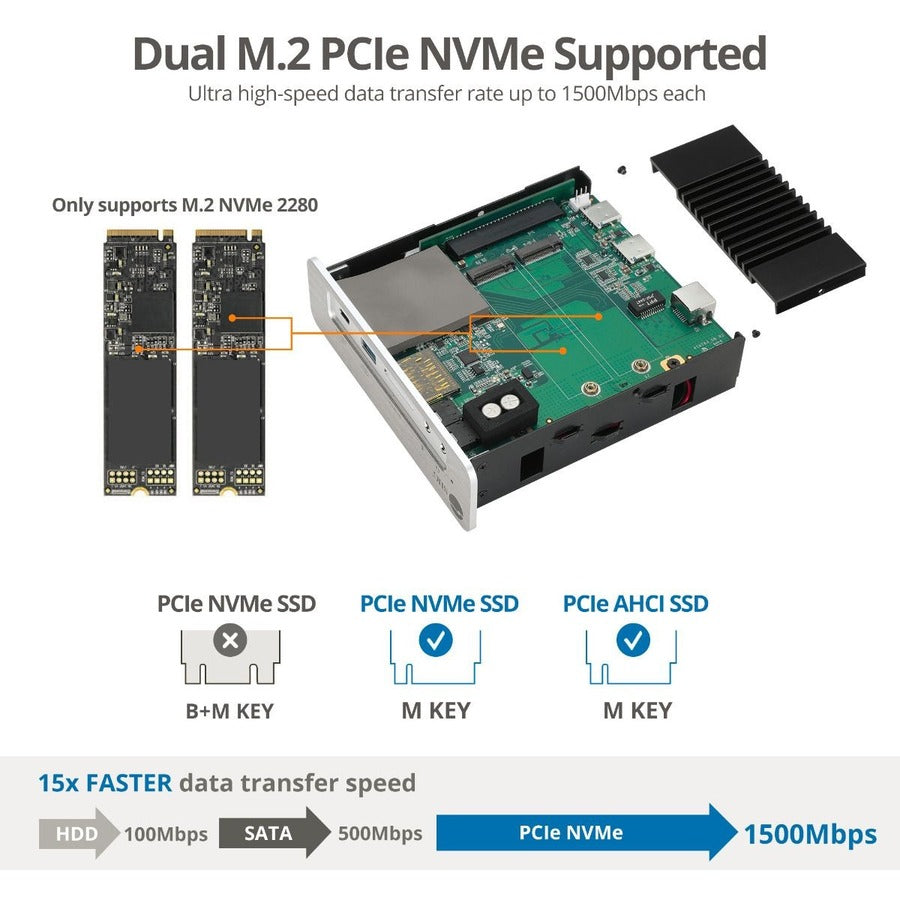

Dual PCIe Gen 3 NVMe M.2 - Holds two M Key 2280 form factor SSDs, adds 2 drives to your computer, increase storage capacity and enhance data transfer speed up to 1500Mbps rate for each installed SSD. Compatible with M Key PCIe NVMe/AHCI M.2 SSDs only (SSD not included) -
USB 3.1 - Provides 2 USB-A 3.1 Gen1 with BC 1.2 (5V/2.4A) ports up to 5Gbps, one USB-A 3.1 Gen2 BC 1.2 (5V/2.4) ports up to 10Gbps, one USB-C 3.1 Gen2 port (5V/3A) up to 10Gbps to enhance your computer's performance capabilities -
SD Memory Card Reader - SD (UHS-II) compatible, supports data transfer up to 270Mbps, and maximum capacity of 2TB -
Wired Gigabit Ethernet - Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port -
Audio Jack - Supports two 3.5mm audio jack for stereo audio and microphone connection -

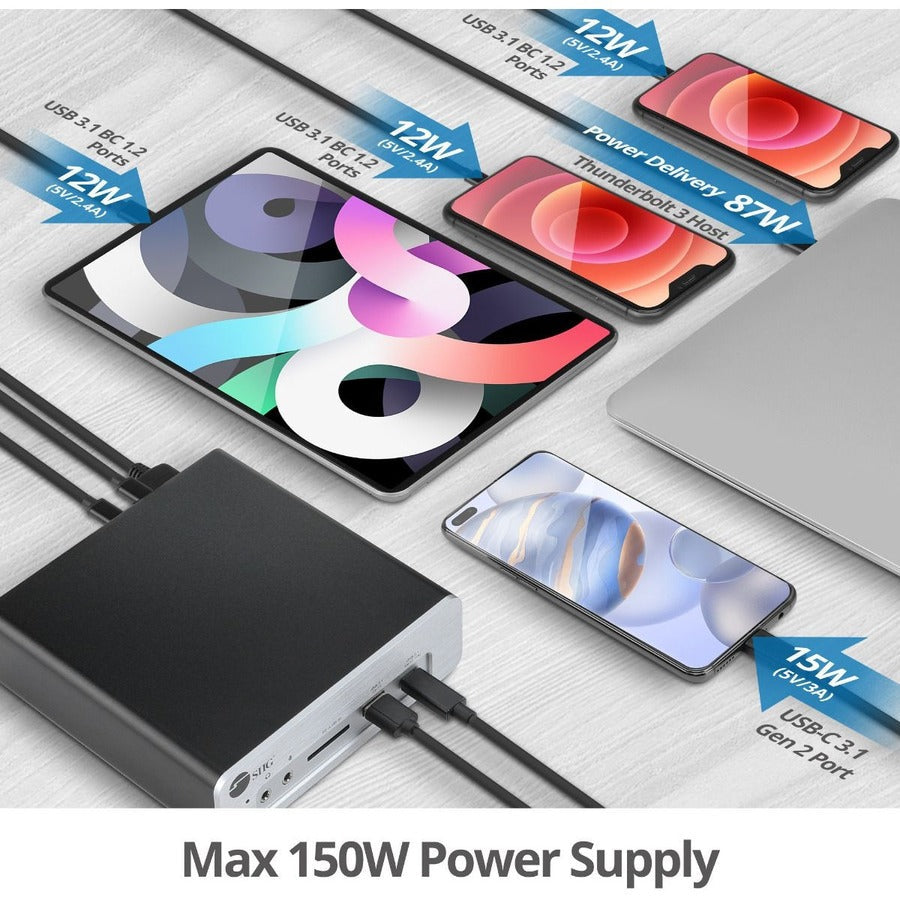

High Power - Included 150W power adapter provides sufficient power for your connected peripherals, plus PD charging up to 87W to charge/power your laptop -
Certifications: Intel Thunderbolt 3, RoHs, TAA, FCC, CE
Product Type: Docking Station
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & 87W Power Delivery
Manufacturer Part Number: JU-DK0K11-S1
Manufacturer Website Address: http://www.siig.com

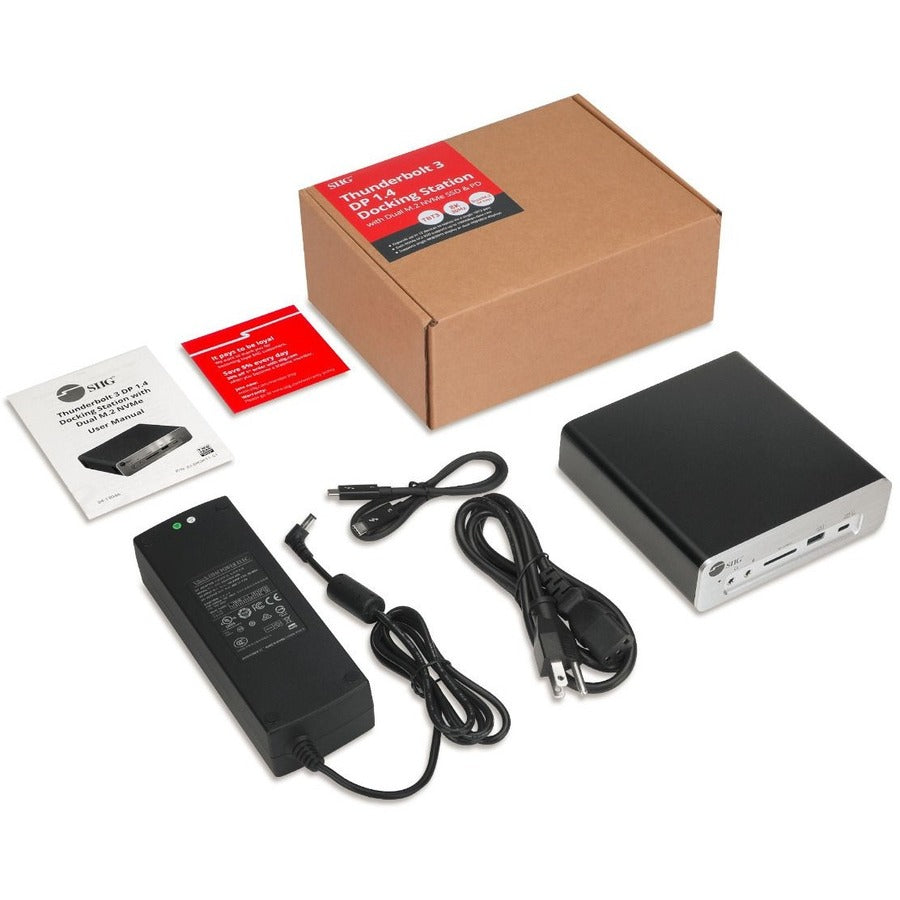

Package Contents:
- Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & 87W Power Delivery
- Power Adapter 20V/7.5A
- Thunderbolt 3 Cable (50cm)
- User Manual
Limited Warranty: 2 Year
Weight (Approximate): 1.98 lb
