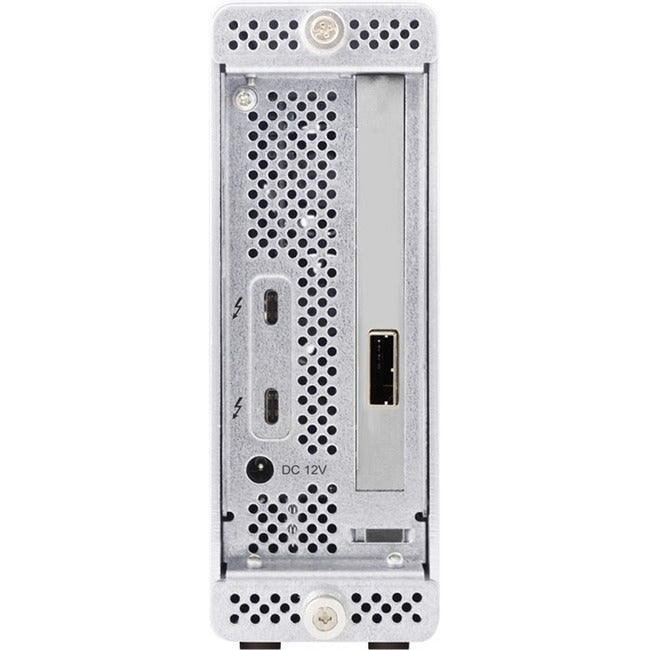

HighPoint Thunderbolt™ 3 to 2x Mini-SAS Port Adapter (8x SAS/SATA Channels)
Cost Effective High-Speed Mass Storage RAID Solution
The RocketStor 6661A-mSAS2 delivers robust RAID protection, high-performance data throughput, and mass-storage capability, via a single Thunderbolt™ 3 connection. Each RocketStor 6661A-mSAS2 is powered by our industry proven Turbo RAID technology and features two industry-standard external Mini-SAS ports (SFF-8088) which can directly support up to eight SAS/SATA drives and 112TB of storage in one or more RAID configurations.
Designed with maximum portability in mind, the RocketStor 6661A-mSAS2 is an ideal RAID and storage connectivity solution for today's mobile professional; perfectly suited for work in the field and on-site post-production environments. The built-in RAID controller supports RAID 0, 1, 5, 6, 10, 50 and JBOD arrays and delivers the uncompromised performance and superior data protection demanded by professional applications.
Works with any Thunderbolt™ 3 capable Mac or PC
Like all HighPoint Thunderbolt™ 3 I/O Solutions, the RocketStor 6661A-mSAS2 was designed with simplicity and ease of use in mind. Eight 6Gb/s SAS/SATA ports can be added to any Thunderbolt™ 3 capable Mac or PC using a single cable connection. The ultra-slim enclosure includes a pre-installed SAS/SATA RAID controller, and extensive driver support is available for both Windows and Mac platforms.
Compatible with macOS RAID Arrays & RocketRAID Configurations
Designed to simplify and streamline storage integration for Thunderbolt™ 3 platforms, the RocketStor 6661A-mSAS2 is fully backwards compatible with all previous and current HighPoint RAID controllers, and includes built-support for Apple RAID configurations created with the macOS Disk Utility. No other Thunderbolt™ 3 to SAS/SATA storage solution delivers this level of convenience, flexibility and performance.
Comprehensive RAID & Storage Management Interface
The RocketStor 6661A-mSAS2 includes our intuitive web-based management suite which enables users of any experience level to easily configure up to 8 SAS/SATA drives and 112TB of storage into one or more RAID configurations. A wide-range of pro-active maintenance and monitoring capabilities work ensure the health of RAID storage investments and minimize downtime.
With a few simple clicks, users can check available storage capacity, the condition of any arrays and all hosted drives, and enable auto-rebuild and hot spare features that add additional layers of data security to redundant arrays. Users can also schedule maintenance sessions to verify disk integrity, and enable Email notification to inform one or more users of changing storage conditions while outside of the work environment.
- Thunderbolt™ 3 to 2x Mini-SAS Ports (SFF-8088)
- Cost-effective, high-speed, mass-storage RAID solution for Thunderbolt™ 3 Connectivity
- Integrated RAID 0, 1, 5, 6, 10, 50 & JBOD Support
- Directly supports up to 8x 6Gb/s SAS or SATA drives and up to 112TB of Storage Capacity
- Works with any Thunderbolt™ 3 capable Mac or PC
Product Type: Thunderbolt/SAS Controller
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: HighPoint
Form Factor: External
Manufacturer: HighPoint Technologies, Inc
Product Model: 6661A-mSAS2
Product Name: Thunderbolt™ 3 to 2x Mini-SAS Port Adapter (8x SAS/SATA Channels)
Product Line: RocketStor
Manufacturer Part Number: RS6661A-MSAS2
Manufacturer Website Address: http://www.highpoint-tech.com
Packaged Quantity: 1
Platform Supported: PC
Package Contents:
- Thunderbolt 3 to 2x Mini-SAS Port Adapter (8x SAS/SATA Channels)
- RocketStor 6661A Expansion Chassis
- 1 x 40Gb/s Thunderbolt 3 cable
- 1 x External Power Supply
- 1 x Power Cord
- Quick Installation Guide
Limited Warranty: 1 Year
Weight (Approximate): 6 lb
