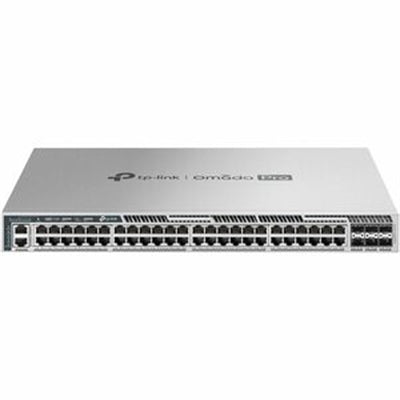

TP-Link Omada S6500-48MPP6Y 48-Port 2.5G L3 Managed PoE++ Switch
The Omada Campus S6500-48MPP6Y is a high-performance L3 managed PoE++ switch engineered for enterprise campus networks requiring scalable access-layer connectivity. This 48-port 2.5G stackable switch delivers fast wired speeds up to 2.5 Gbps on all RJ45 ports, plus six 25 Gbps SFP28 uplink slots for high-speed backbone connectivity. With a robust 1484W PoE budget, integrated Layer 3 routing, physical stacking capability, and centralized Omada cloud management, this switch is ideal for organizations deploying large-scale PoE++ devices across multiple floors or buildings.
Key Features
- 48× 2.5 Gbps RJ45 PoE++ ports for high-speed device connectivity
- 6× 25 Gbps SFP28 slots for ultra-fast uplink and backbone traffic
- 1484W PoE budget supporting power-hungry endpoints and access points
- Layer 3 routing capabilities for inter-VLAN communication and network segmentation
- Physical stacking support for simplified multi-switch management
- Redundant power supply modules for high availability and fault tolerance
- Centralized Omada cloud management for remote monitoring and configuration
- Advanced QoS, VLAN, and security features for enterprise deployments
Technical Specifications
| Specification |
Details |
| Manufacturer |
TP-Link |
| Model |
S6500-48MPP6Y |
| Product Series |
Omada Campus |
| Port Configuration |
48× 2.5 Gbps RJ45 PoE++ ports + 6× 25 Gbps SFP28 slots |
| PoE Budget |
1484W (supports PoE++ up to 95W per port) |
| Layer Support |
Layer 3 Managed Switch with routing capabilities |
| Stacking |
Physical stacking support for multi-unit deployments |
| Power Supply |
Redundant modular power supply modules |
| Management |
Omada cloud-based centralized management platform |
| Uplink Speed |
25 Gbps per SFP28 slot |
Frequently Asked Questions
What is the difference between this L3 managed switch and a standard L2 switch?
The S6500-48MPP6Y L3 managed switch includes built-in routing capabilities, allowing direct inter-VLAN communication and advanced network segmentation without requiring a separate router. This reduces latency and simplifies campus network architecture compared to Layer 2-only switches.
Can I stack multiple Omada S6500 switches together?
Yes, the S6500-48MPP6Y supports physical stacking, allowing you to combine multiple units into a single logical switch for simplified management, redundancy, and scalability across your campus network infrastructure.
How much PoE power does this 48-port switch provide?
The Omada S6500-48MPP6Y delivers a total PoE budget of 1484W, supporting up to 95W per port on all 48 PoE++ ports. This enables deployment of power-intensive devices such as high-power access points, IP cameras, and wireless controllers.
What management options are available for this enterprise switch?
The S6500-48MPP6Y integrates with TP-Link's Omada cloud management platform, providing centralized monitoring, configuration, and firmware updates across your entire campus network from a single dashboard.
