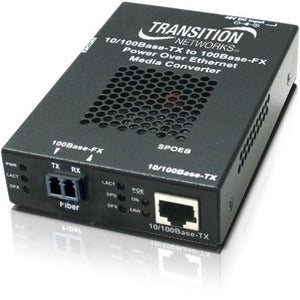

Transition Networks Stand-alone Fast Ethernet PoE Media Converter
SPOEB10xx-105 is a 10/100 Ethernet copper to fiber PoE media converter that enables enterprises to provide power to network devices over the existing CAT5 data connection.
Transition Networks' AC powered PoE media converters combine data received over a fiber optic link with
-48 VDC power; providing power to Data Terminal Equipment (DTE) Power Devices (PD) over unshielded twisted pair cable. The PoE converters are Power Sourcing Equipment (PSE) and are fully compatible with Powered Devices (PD) that comply with the IEEE 802.3af: 2003 standard. The converters also include a PD signature sensing and power monitoring features per the IEEE 802.3af standard. Other features include Over-Current Protection, Under-Current Detection and Fault Protection Input.
This feature enhanced model offers the ability to enable/disable many of the features as well as force port capabilities.
In addition, with the PSE/LPT switch enabled, a loss of Fiber RX will disable PSE power output on the UTP port for 2 seconds to allow remote device to re-initialize. (Also known as Powered Device Reset.)
The PoE converter is fully compatible with devices that comply with the IEEE
802.3af standard. The PoE converter is capable of inserting power on data pairs or spare pair of the MDI.
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- With Wall mounting feature, you can conveniently install the device while keeping the wires and cables organized
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: Taiwan
Brand Name: Transition Networks
Form Factor: Wall Mountable
Manufacturer: Transition Networks, Inc
Product Model: SPOEB10xx-105
Product Name: Stand-alone Fast Ethernet PoE Media Converter
Manufacturer Part Number: SPOEB1011-105-NA
Manufacturer Website Address: http://www.transition.com
Package Contents:
- Stand-alone Fast Ethernet PoE Media Converter
- Power Supply
Limited Warranty: Lifetime
Weight (Approximate): 2 lb
