Tripp Lite 2-Port DVI/USB KVM Switch w/ Audio and Cables. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. Maximum resolution: 2048 x 1536 pixels, Number of users: 1 user(s). Product colour: Silver, Cable length: 1.8 m, Country of origin: China. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Input current: 0.4 A. Width: 152.4 mm, Depth: 63.5 mm, Height: 25.4 mm
The B004-DUA2-K-R is a 2-Port DVI/USB KVM Switch with audio and USB 2.0 peripheral sharing. It allows you to access, control, boot and reboot two computers from a single USB keyboard, USB mouse, and monitor. Switching between connected computers is quick and simple using keyboard hotkeys or pushbuttons. An independent audio/mic and USB peripheral switching function allows for an uninterrupted experience. A computer can be printing on a printer connected to one of the USB 2.0 peripheral ports, while you listen to audio from and access another computer; all at the same time.
The B004-DUA2-K-R uses DVI-I technology, allowing for the transmission of a digital (up to 1920 x 1200) or analog (up to 2048 x 1536) signal. A DVI to VGA adapter, such as Tripp Lite's P126-000, is required for conversion to an analog monitor. Whichever you use, full time DDC support provides the necessary EDID information required for optimal video performance on Windows 7 and other operating systems. Compatible with all major operating systems.
● Fast, easy switching via keyboard hotkeys or pushbuttons ● Plug-and-play setup - no software required ● Hot-swap capability allows easy addition or removal of computers without powering down the switch or other computers ● Speaker and microphone connections allow for the sharing of audio components between systems ● Independent audio/mic and USB peripheral switching function allows for an uninterrupted experience. A computer can be printing on a printer connected to one of the USB 2.0 peripheral ports, while you listen to audio from and access another computer; all at the same time. ● Supports 2-Channel Stereo Audio ● Features two USB 2.0 ports for the sharing of USB peripherals (e.g. flash drives, printers, etc.) between the connected computers ● Uses DVI-I technology, allowing for the transmission of a digital (up to 1920 x 1200) or analog (up to 2048 x 1536) signal. A DVI to VGA adapter, such as Tripp Lite's P126-000, is required for conversion to an analog monitor. ● To connect to a HDMI monitor, a DVI to HDMI adapter such as Tripp Lite's P132-000 is required (Audio is not supported when converting from DVI to HDMI). ● Full time DDC support provides the necessary EDID information for optimal video performance on Windows 7 and other operating systems ● Supports Microsoft® IntelliMouse® and the scrolling wheel on most mice ● (x2) 1.22 m USB cables and (x2) 1.22 m DVI + Audio KVM cable kits included ● Compatible with all major operating systems
● Control 2 computers with a single DVI monitor, USB keyboard and USB mouse
● Switch ports via keyboard hotkeys or pushbuttons
● Allows for the sharing of audio components between systems; listen to music from one computer while accessing another
● Features two USB 2.0 ports for the sharing of USB peripherals between the connected computers
● (x2) 1.22 m USB cables and (x2) 1.22 m DVI + Audio KVM cable kits included
● Full time DDC support provides the necessary EDID information for optimal video performance on Windows 7 and other operating systems
● Compatible with all major operating systems
System Requirements
● KVM Console: A DVI monitor, USB keyboard, and USB mouse ● Computers: DVI-I port (P118-000 DVI-I to DVI-D Adapter is required for computers with DVI-D ports), and USB Port ● Audio (Optional): A microphone and speakers with 3.5mm Mini-Stereo connectors and a computer with 3.5mm Mini-Stereo ports ● Compatible with all major operating systems
Package Includes

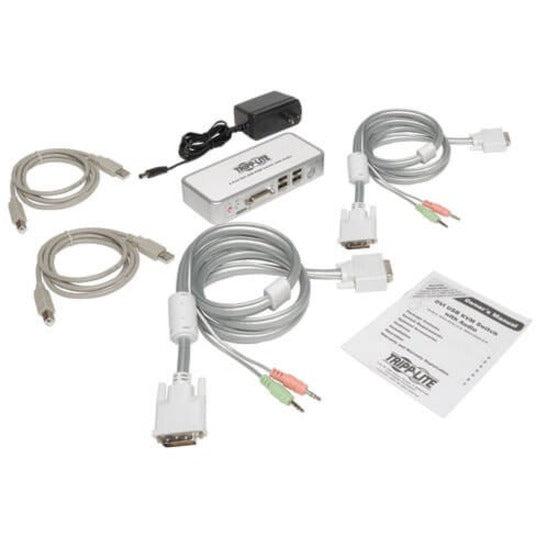

● B004-DUA2-K-R ● (x2) 4 ft. DVI-I + 3.5mm Audio Cable kits ● (x2) 4 ft. USB A-B Device Cables ● Owner's Manual ● External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.4A Output: 5V, 2A)
General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
B004-DUA2-K-R
Manufacturer Website Address
https://tripplite.eaton.com/
Brand Name
Tripp Lite by Eaton
Product Model
B004-DUA2-K-R
Product Name
B004-DUA2-K-R 2-Port DVI/USB KVM Switch
Product Type
KVM Switchbox
UPC
037332140036
Miscellaneous
Package Contents
B004-DUA2-K-R 2-Port DVI/USB KVM Switch
2 x 4 ft. DVI-I with 3.5mm Audio Cable kits
2 x 4 ft. USB A-B cables (P118-000 DVI-I to DVI-D Adapter is required for PCs with DVI-D ports)
