Tripp Lite 4Postrailkitwm 4-Post 1U Universal Adjustable Rack-Mount Shelf Kit For Wall-Mount Racks

4-Post 1U Universal Adjustable Rack-Mount Shelf Kit for Wall-Mount Racks

Tripp Lite 4POSTRAILKITWM 4-Post 1U Universal Adjustable Rack-Mount Shelf Kit for Wall-Mount Racks. Type: Mounting kit, Product colour: Silver, Housing material: Steel. Width: 37.8 mm, Depth: 381 mm, Depth (max): 59.7 cm. Package width: 54.9 mm, Package depth: 385.1 mm, Package height: 50 mm. Master (outer) case width: 270 mm, Master (outer) case length: 405.1 mm, Master (outer) case height: 130 mm

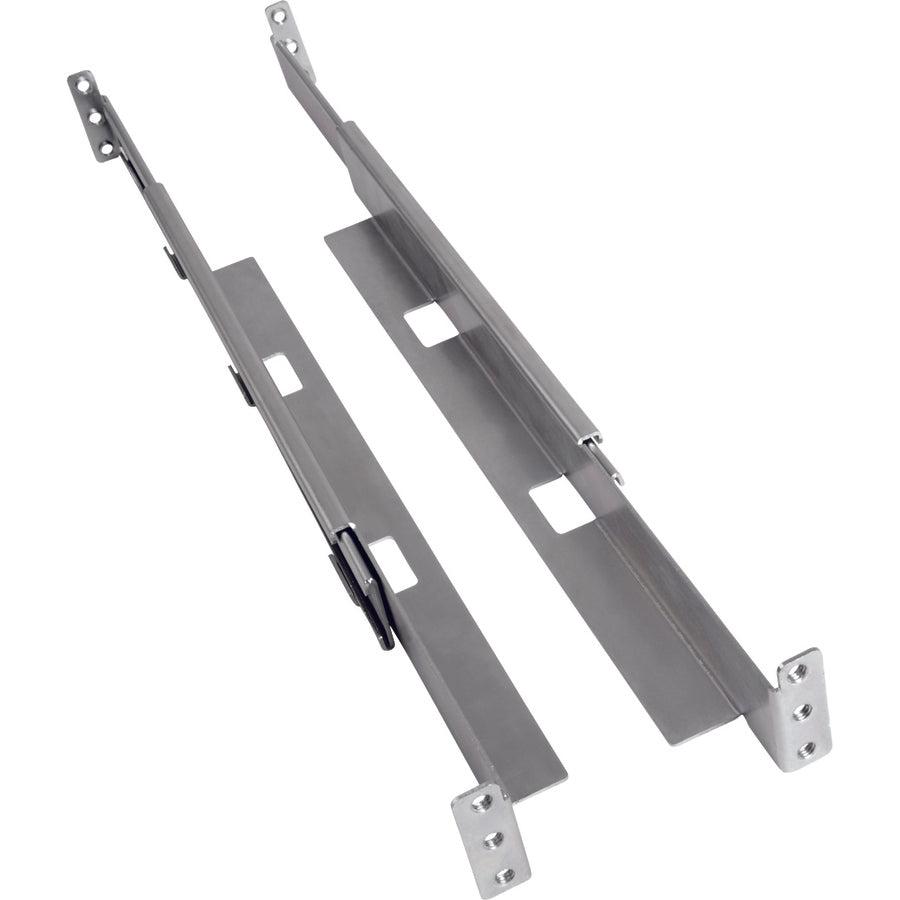

The 4POSTRAILKITWM wall-mount rack shelf kit provides extra support for heavy UPS systems, PDUs or other rack-mount components that weigh 150 lbs (68 kgs) or less. It includes two adjustable mounting rails that attach to the mounting rails of your EIA-standard 19-inch wall-mount enclosure. Constructed using cold-rolled steel with a durable powder-coated finish, this heavy-duty rack rail kit comes with mounting hardware compatible with square-hole racks.

The rails offer front-to-rear support for equipment with 17.5-inch-wide rectangular chassis. They also adjust to any setting between 14.5 and 23.5 inches and leave the rack's front and rear mounting holes free to attach equipment. Setup is hassle-free and saves money and time on installation. Threaded-hole rack installation is also supported with user-supplied mounting hardware.

Additional Rack-Mount Shelf for Your Wall-Mount Rack
1U rack rail kit with maximum load capacity of 150 lbs (68 kgs)

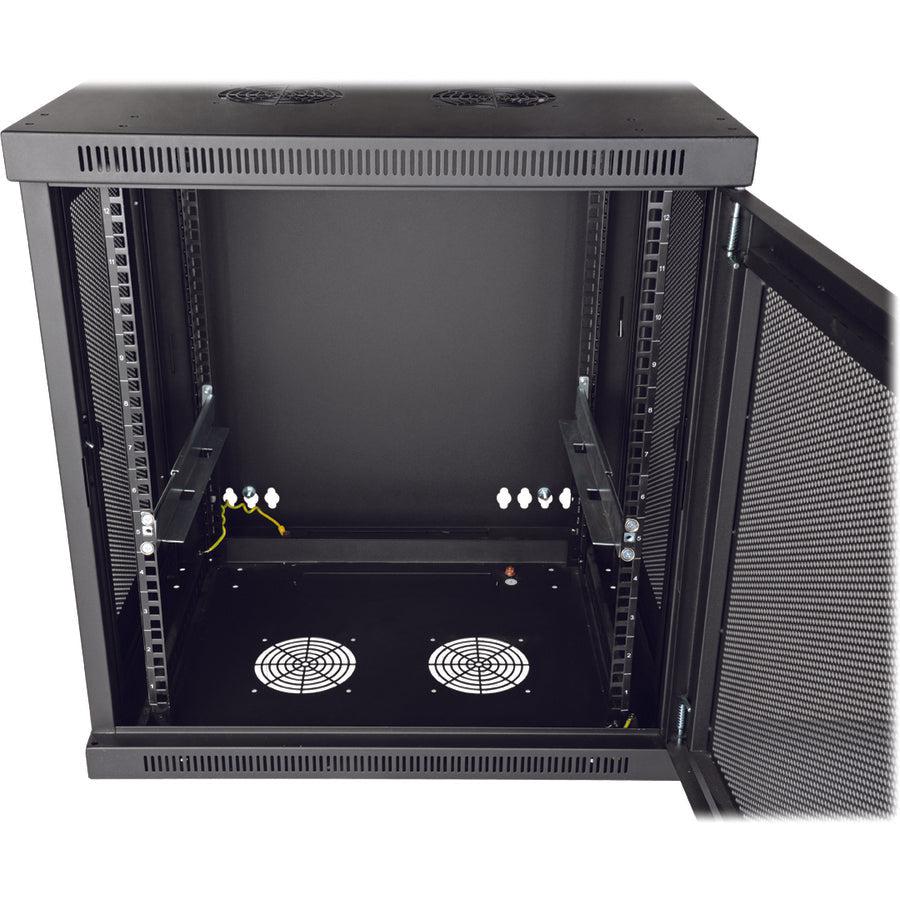

Compatible with 19 in. wall-mount open frame racks and enclosures
Expandable support rails offer front-to-rear support for equipment with 17.5 in. rectangular chassis
Rails adjust to any setting between 14.5 and 23.5 in.
Leaves front and rear mounting holes free for equipment

Heavy-Duty Construction with Versatile Mounting Options
Cold-rolled steel construction with powder-coated finish designed for long life
Mounting hardware included for quick installation in square-hole rack
Threaded-hole rack installation supported with user-supplied hardware
