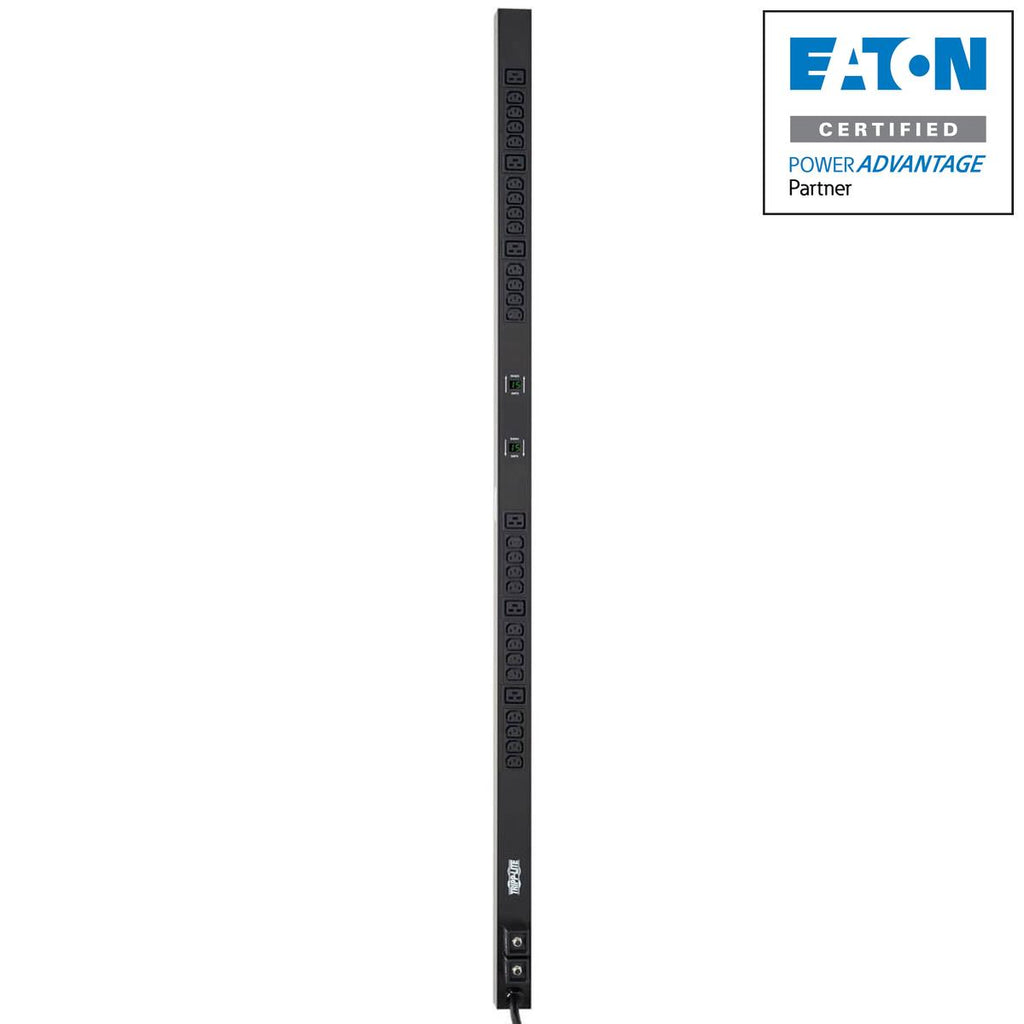

Tripp Lite 5/5.8kW Single-Phase Metered PDU, 208/240V Outlets (6-C19 & 24-C13), L6-30P, 10ft Cord, 0U Vertical. PDU types: Metered, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 30 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: NEMA L6-30P. Cable length: 3.05 m, Certification: UL60950-1 (USA, Canada), NOM (Mexico). Nominal input voltage: 200-240 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz. Width: 88.9 mm, Depth: 57.2 mm, Dimensions (WxDxH): 57 x 95 x 1620 mm

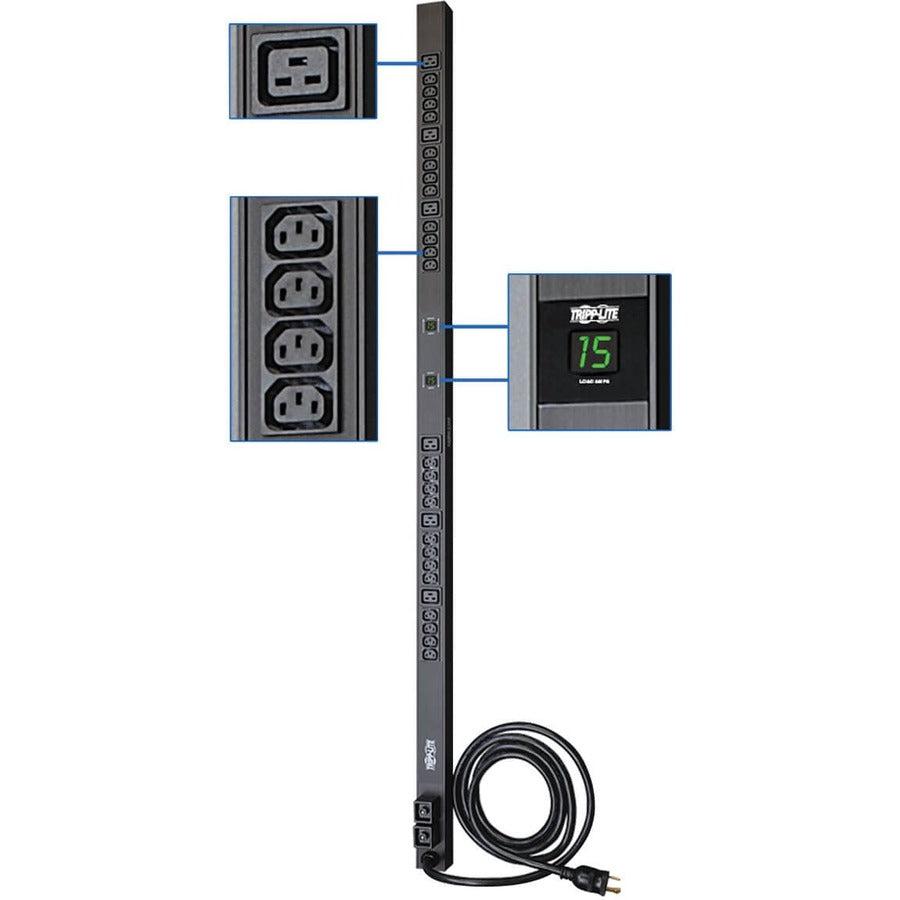

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. - 30A single phase 208/240V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous) - Set of two lighted meters report PDU output current in amps for each output load bank - Attached NEMA L6-30P 30A 208/240V input plug and 12ft / 3.6m cord - 0U 63.75in / 162cm vertical rackmount format installs using no rack spaces - 30 output receptacles (6 C19, 24 C13) - Outlets are arranged in two 15 outlet load banks, each with separate 15A breaker and current metering - Toolless installation in button-mount compatible equipment racks
