Tripp Lite 5kVA Smart Online Step-Down Isolation Transformer 208V-120V TAA. AC outlet types: Terminal, AC outlets quantity: 120 AC outlet(s), AC input voltage: 208 V. Width: 444.5 mm, Depth: 527 mm, Height: 88.9 mm. Products per master (outer) case: 1 pc(s), Master (outer) case width: 505.5 mm, Master (outer) case length: 594.4 mm

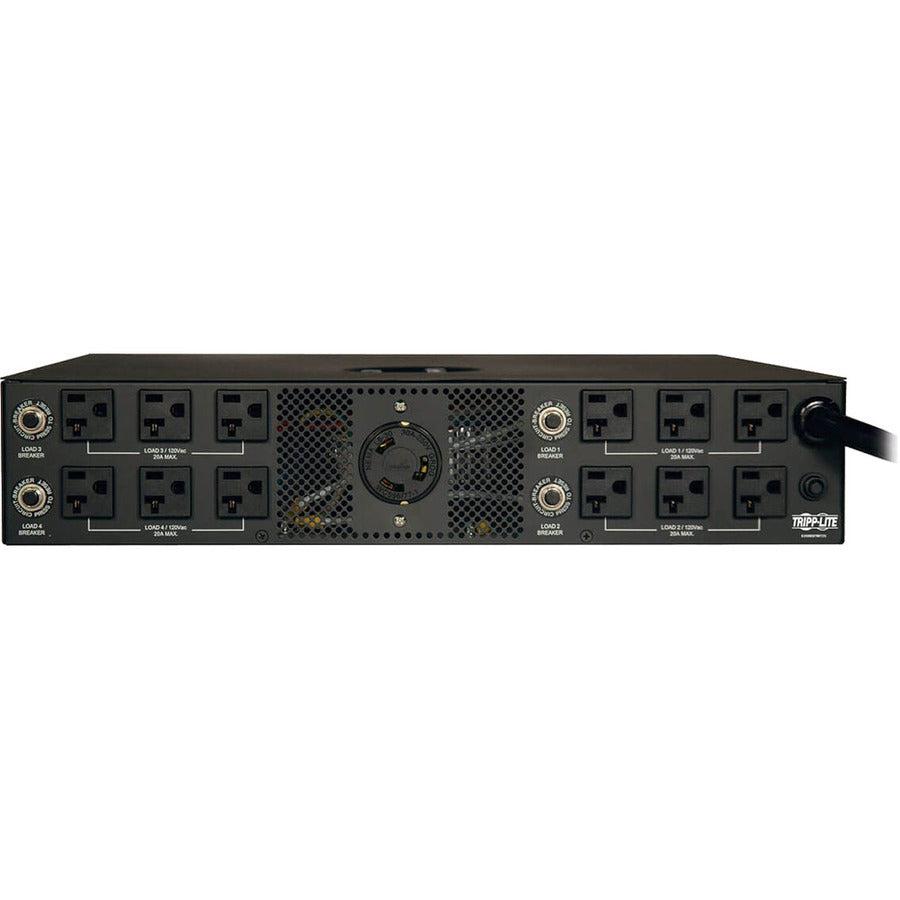

208V to 120V Isolation Transformer Converts High-Voltage Input to Low-Voltage Output The 5kVA 5kW SU5000XFMR2UTAA SmartOnline® Step-Down Isolation Transformer converts your UPS, utility or generator’s 208V high-voltage input to 120V low-voltage output. It features 12 NEMA 5-15/20R outlets for connecting equipment with common NEMA 5-15P and NEMA 5-20P plugs. Four resettable 20A circuit breakers protect your low-voltage equipment against overload conditions. One NEMA L6-30R outlet supports high-voltage output. The 5kVA transformer’s 10-foot power cord with 208V 30A input connects to a NEMA L6-30R outlet.
Versatile Installation Options Hardware is included for mounting this 208V to 120V isolation transformer in 2U of space in an EIA-standard 19-inch 4-post rack with a maximum depth requirement of 20.75 inches. Use the optional 2POSTRMKITWM for 2-post rack mounting or the optional 2-9USTAND for mounting in an upright tower position (both accessories sold separately).
TAA-Compliant UPS for GSA Schedule Purchases The SU5000XFMR2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
2-Year Warranty and Environmentally Responsible Design The SU5000XFMR2UTAA comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
Typical Applications - Connecting low-voltage (120V) equipment to a high-voltage (208V) AC power source
