Tripp Lite by Eaton

Tripp Lite B127A-1A1-Fdfh Displayport To Hdmi Over Cat6 Extender Kit, Wall Plate, 4K 60 Hz, 4:4:4, Poc, Hdcp 2.2, 230 Ft. (70.1 M), Taa

Tripp Lite B127A-1A1-Fdfh Displayport To Hdmi Over Cat6 Extender Kit, Wall Plate, 4K 60 Hz, 4:4:4, Poc, Hdcp 2.2, 230 Ft. (70.1 M), Taa

SKU:B127A-1A1-FDFH

Regular price $190.02
Regular price Sale price $190.02
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          DisplayPort to HDMI over Cat6 Extender Kit, Wall Plate, 4K 60 Hz, 4:4:4, PoC, HDCP 2.2, 230 ft. (70.1 m), TAA

          Tripp Lite B127A-1A1-FDFH DisplayPort to HDMI over Cat6 Extender Kit, Wall Plate, 4K 60 Hz, 4:4:4, PoC, HDCP 2.2, 230 ft. (70.1 m), TAA. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5,Cat5e,Cat6,HDMI. Connectivity technology: Wired. AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Operating voltage: 24 V. Receiver dimensions (WxDxH): 70 x 33.82 x 115 mm, Receiver weight: 650 g, Transmitter dimensions (WxDxH): 70 x 33.82 x 115 mm. Package width: 343.9 mm, Package depth: 150.1 mm, Package height: 83.1 mm

          Cat6 Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls

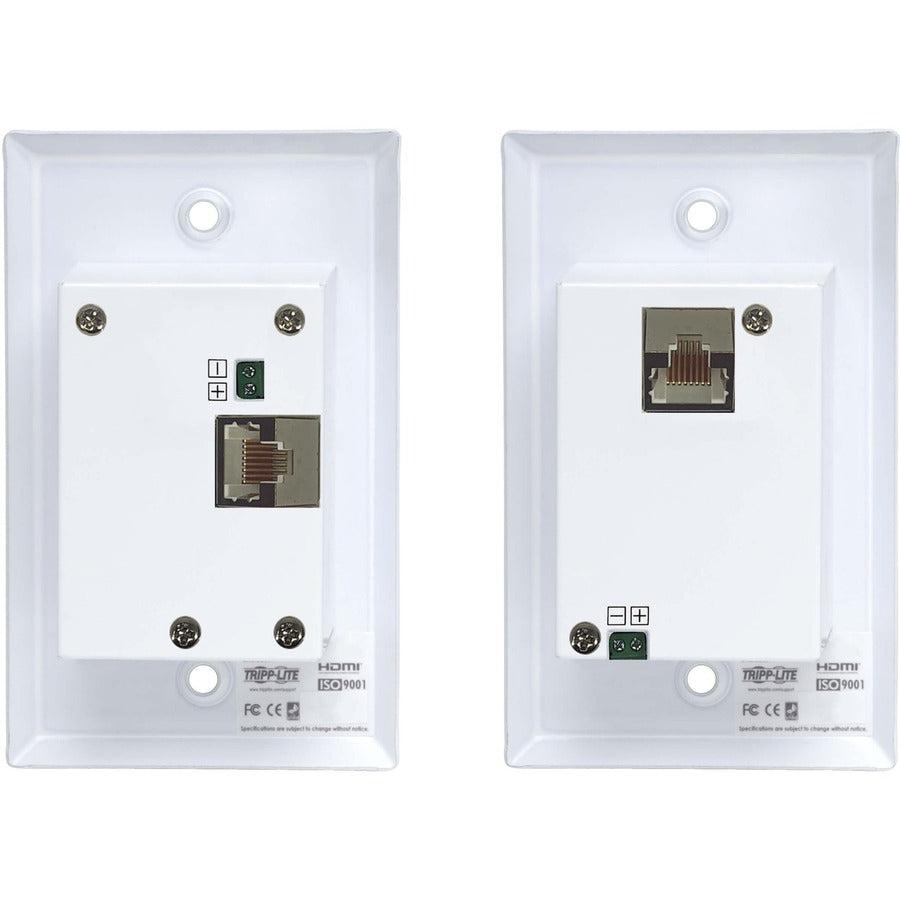

          This complete wall-plate-style transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. Both the transmitter and receiver have a single-gang metal wall plate design with a metal back cover and blend perfectly into the room décor.

          Extends a 4K A/V Transmission up to 230 ft....or Even Farther
          The B127A-1A1-FDFH extends 4K signals from a DisplayPort source device to an HDMI display up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. By adding a Tripp Lite B127A-010-H HDMI repeater (sold separately) to the application, you can extend the signal up to 400 feet (121.9 meters).

          Transmits Crystal-Clear 4K Video with Multi-Channel Audio and 4:4:4 Color
          The B127A-1A1-FDFH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified in HDMI 2.0, with pass-through LPCM 2.0/5.1/7.1 audio. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization automatically fine-tunes the image quality at the remote display.

          Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
          After you connect the included external power supply to either the transmitter or receiver, Power over Cable (PoC) technology powers the opposite unit over Cat6 cable. LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to install the application where best needed without worrying about finding a nearby AC outlet.

          Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
          To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter’s local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.

          Plug-and-Play Operation for Quick Setup and Immediate Use
          The included transmitter and receiver units work right out of the box with no software required. Connect the transmitter to the source with a user-supplied DisplayPort cable (such as Tripp Lite’s P580-Series). Then, connect the receiver to the display with a user-supplied HDMI cable (such as Tripp Lite’s P569-XXX-CERT or P568-XXX-2A). Finally, connect the two units with user-supplied Cat6 patch cable (such as Tripp Lite N202-Series). Mounting hardware is included for both units.

          TAA-Compliant for GSA Schedule Purchases
          The B127A-1A1-FDFH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number B127A-1A1-FDFH
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model B127A-1A1-FDFH
          Product Name B127A-1A1-FDFH Video Extender Transmitter/Receiver
          Product Type Video Extender Transmitter/Receiver
          UPC 037332263957
          Network (RJ-45)Yes

          Physical Characteristics

          Color FamilyMulticolor
          Product ColorWhite

          Miscellaneous

          Package Contents
          • Transmitter
          • Receiver
          • External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
          • 4 x International plug adapters (North America, Europe, U.K. and Australia)
          • Mounting Hardware
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty1 Year
