Tripp Lite by Eaton

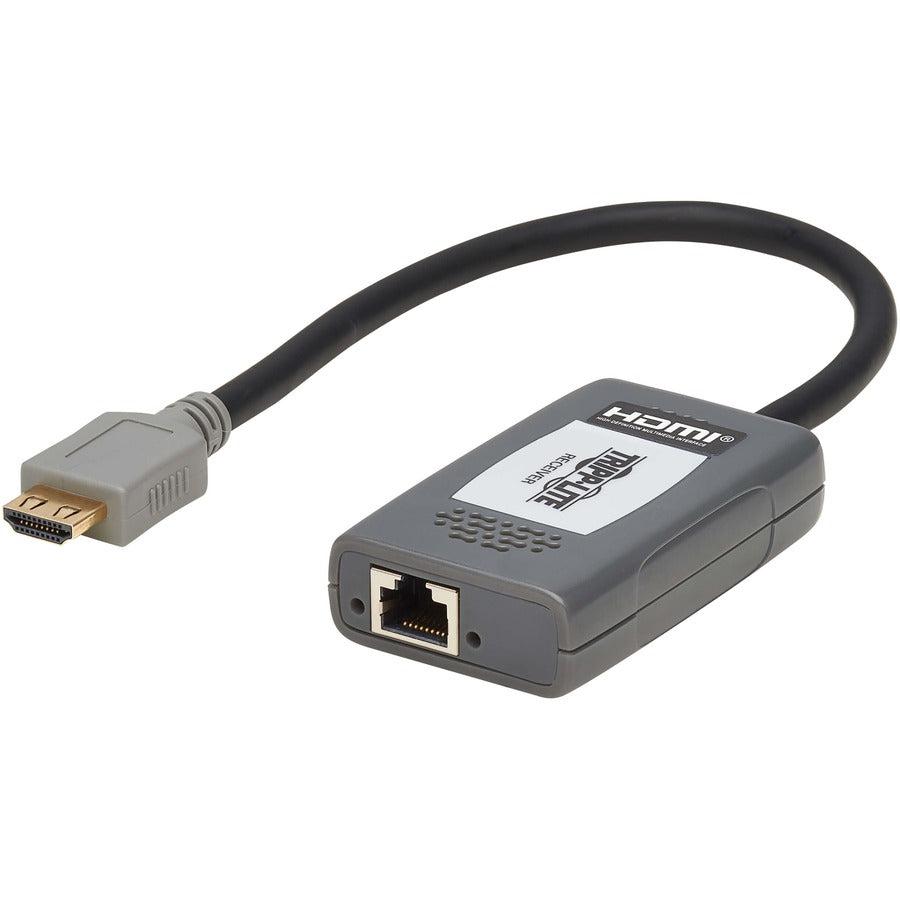

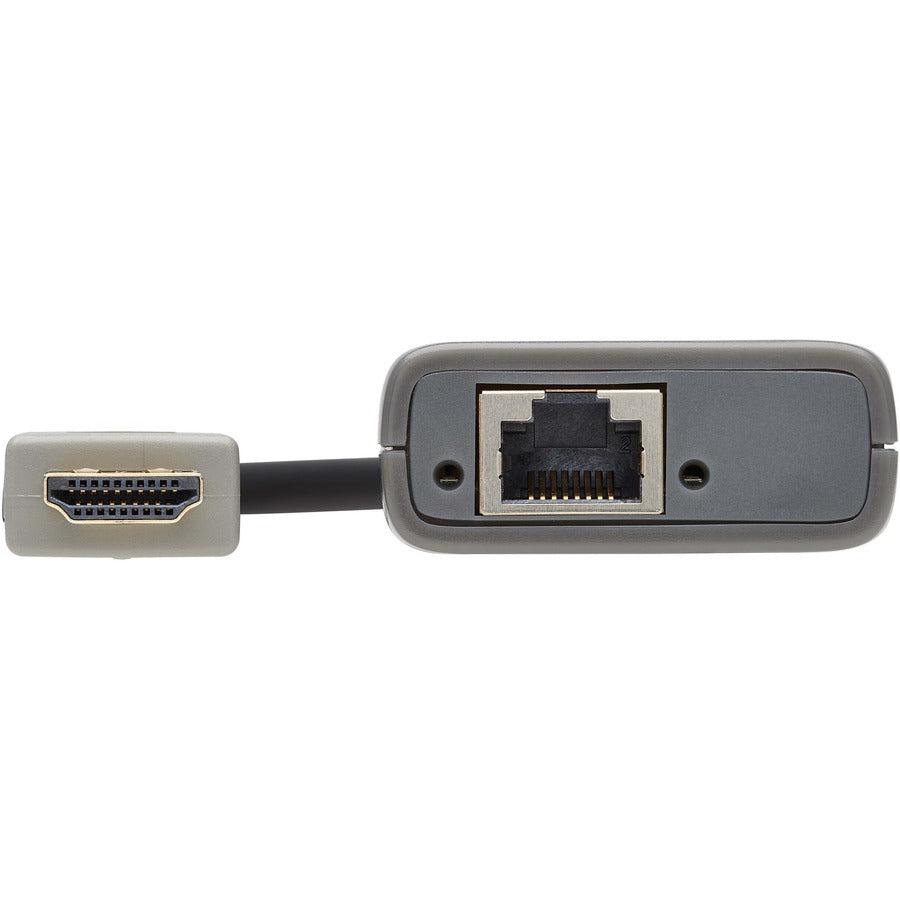

Tripp Lite B127A-1P0-Ph 1-Port Hdmi Over Cat6 Receiver, Pigtail - 4K 60 Hz, Hdr, 4:4:4, Poc, Hdcp 2.2, 230 Ft. (70.1 M), Taa

Tripp Lite B127A-1P0-Ph 1-Port Hdmi Over Cat6 Receiver, Pigtail - 4K 60 Hz, Hdr, 4:4:4, Poc, Hdcp 2.2, 230 Ft. (70.1 M), Taa

SKU:B127A-1P0-PH

Regular price $67.96
Regular price Sale price $67.96
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          1-Port HDMI over Cat6 Receiver, Pigtail - 4K 60 Hz, HDR, 4:4:4, PoC, HDCP 2.2, 230 ft. (70.1 m), TAA

          Tripp Lite B127A-1P0-PH 1-Port HDMI over Cat6 Receiver, Pigtail - 4K 60 Hz, HDR, 4:4:4, PoC, HDCP 2.2, 230 ft. (70.1 m), TAA. Type: AV receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5,Cat5e,Cat6,HDMI. Connectivity technology: Wired. Quantity per pack: 1 pc(s), Package width: 199.9 mm, Package depth: 142 mm. Master (outer) case width: 455.9 mm, Master (outer) case length: 213.1 mm, Master (outer) case height: 152.9 mm

          HDMI Pigtail Receiver Ideal for Digital Signage in Schools and Workplaces
          This 4K receiver is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

          Extends a 4K A/V Transmission up to 230 ft....or Even Farther
          The B127A-1P0-PH connects to a Tripp Lite B127A-Series transmitter, switch or splitter to extend 4K signals from an HDMI source to an HDMI display up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. By adding a Tripp Lite B127A-010-H signal repeater (sold separately) to the application, you can extend the signal up to 400 feet (121.9 meters).

          Supports Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
          The B127A-1P0-PH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with 7.1-channel surround sound audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. Advanced 4:4:4 chroma subsampling is ideal for top-level PC gaming or using your HDTV as a PC monitor. This receiver also features built-in equalization control and auto EDID image adjustment.

          Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
          Power over Cable (PoC) technology powers the B127A-1P0-PH over Cat6 cable. LEDs indicate when the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver where needed without worrying about finding a nearby AC outlet.

          Plug-and-Play Operation for Quick Setup and Immediate Use
          The receiver works right out of the package with no software required. Connect the receiver to a transmitter, switch or splitter with user-supplied Cat6 cable (such as Tripp Lite’s N202-Series). The pigtail HDMI connector plugs directly into a 4K display.

          TAA-Compliant for GSA Schedule Purchases
          The B127A-1P0-PH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number B127A-1P0-PH
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model B127A-1P0-PH
          Product Name B127A-1P0-PH 1-Port HDMI over Cat6 Receiver
          Product Type Video Extender Receiver
          UPC 037332263322
          Network (RJ-45)Yes

          Physical Characteristics

          Color FamilyMulticolor
          Product ColorBlack/Gray

          Miscellaneous

          Package Contents
          • B127A-1P0-PH 1-Port HDMI over Cat6 Receiver
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty1 Year
