Tripp Lite by Eaton

Tripp Lite B127P-100-H-Sr Hdmi Over Cat6 Passive Remote Receiver, 4K 60 Hz, Hdr, Poc, Multi-Resolution Support, 50 Ft., Taa

Tripp Lite B127P-100-H-Sr Hdmi Over Cat6 Passive Remote Receiver, 4K 60 Hz, Hdr, Poc, Multi-Resolution Support, 50 Ft., Taa

SKU:B127P-100-H-SR

Regular price $85.15
Regular price Sale price $85.15
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          HDMI over Cat6 Passive Remote Receiver, 4K 60 Hz, HDR, PoC, Multi-Resolution Support, 50 ft., TAA

          Tripp Lite B127P-100-H-SR HDMI over Cat6 Passive Remote Receiver, 4K 60 Hz, HDR, PoC, Multi-Resolution Support, 50 ft., TAA. Type: AV receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired, USB connector type: Micro-USB. Receiver weight: 80 g. Package width: 134.6 mm, Package depth: 203.2 mm, Package height: 43.2 mm. Master (outer) case width: 154.9 mm, Master (outer) case length: 452.1 mm, Master (outer) case height: 215.9 mm

          4K Receiver Extends HDMI Signals for Digital Signage or Video Presentations

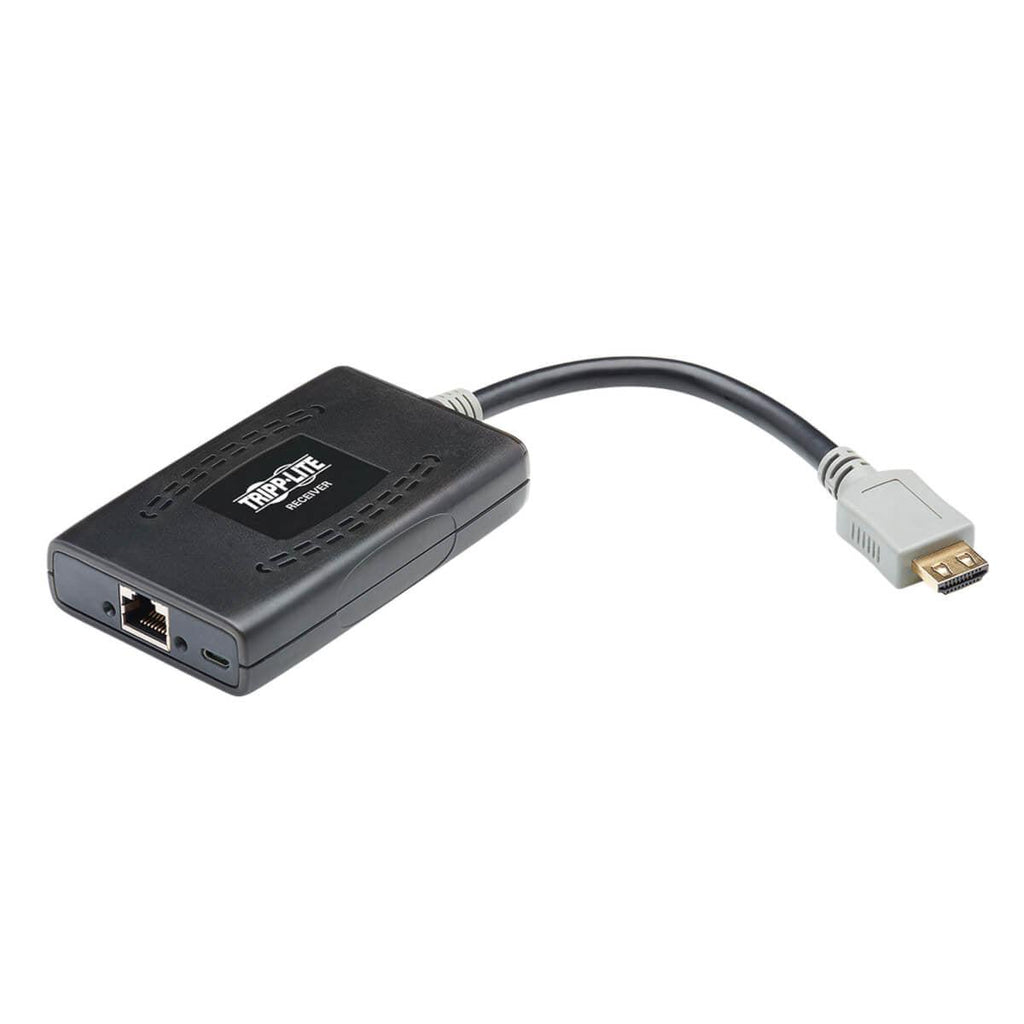

          This pigtail-style passive remote receiver works in tandem with Tripp Lite's B127P-002-H or B127P-004-H transmitter to extend 4K video (at 60 Hz) and stereo audio from an HDMI source to an HDMI display up to 50 feet (15.2 meters) using Cat6 cabling.

          Ideal for Settings Where Conventional HDMI Cables Can't Reach
          The B127P-100-H-SR is recommended for conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

          Supports Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color
          The B127P-100-H-SR supports Ultra HD video resolutions up to 4K x 2K (3840 x 2160) at 60 Hz, as specified in HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. This receiver is capable of carrying HDR signals, which provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. It supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. HDCP 2.2 compliance allows you to stream iTunes and Netflix content with no complications.

          Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
          Say you have a brand new 4K (at 60 Hz) HDTV in the living room, but want to also connect your Blu-ray player or satellite box to the older 1080p TV in the bedroom. The B127P-100-H-SR works with a Tripp Lite B127P-002-H or B127P-004-H splitter/transmitter to allow up to four televisions to display video at their maximum resolution. Most other video applications default each television to the lowest common resolution, meaning you would only get a 1080p image on that new 4K TV.

          Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
          Built-in Power over Cable (PoC) technology powers the low-profile receiver over Cat6 cable. Green and orange LEDs will light up to indicate the unit is receiving power and a signal is being received. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver away from an AC outlet.

          Plug-and-Play Operation for Quick Setup and Immediate Use

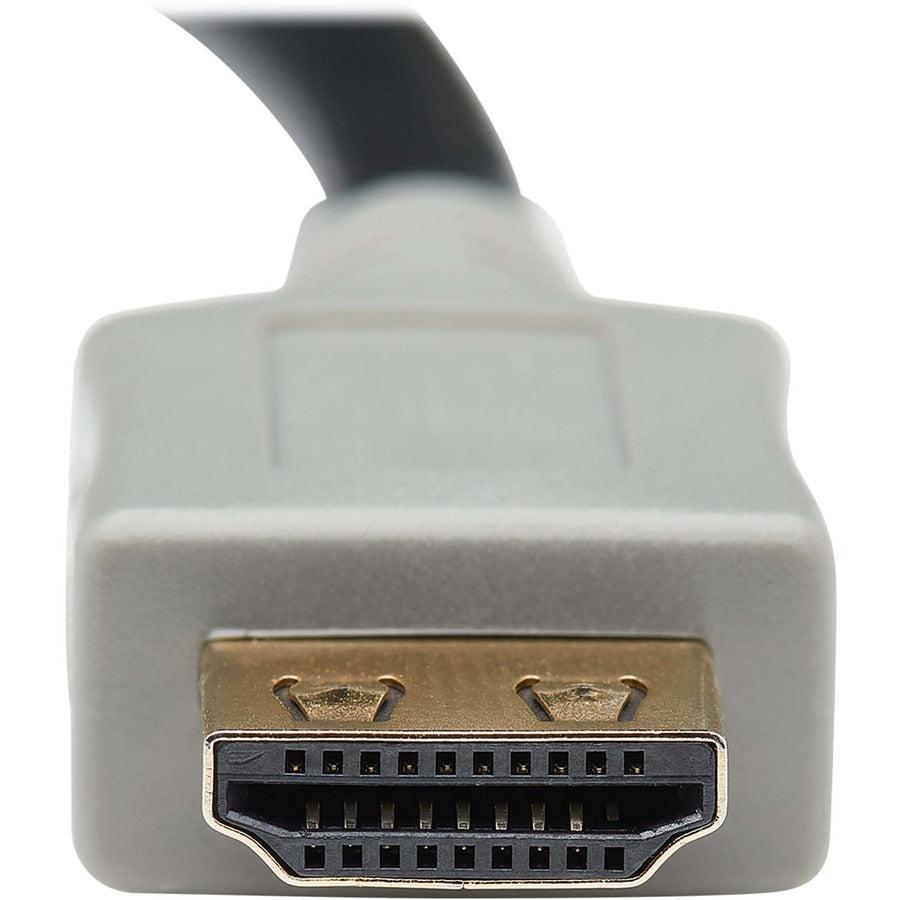

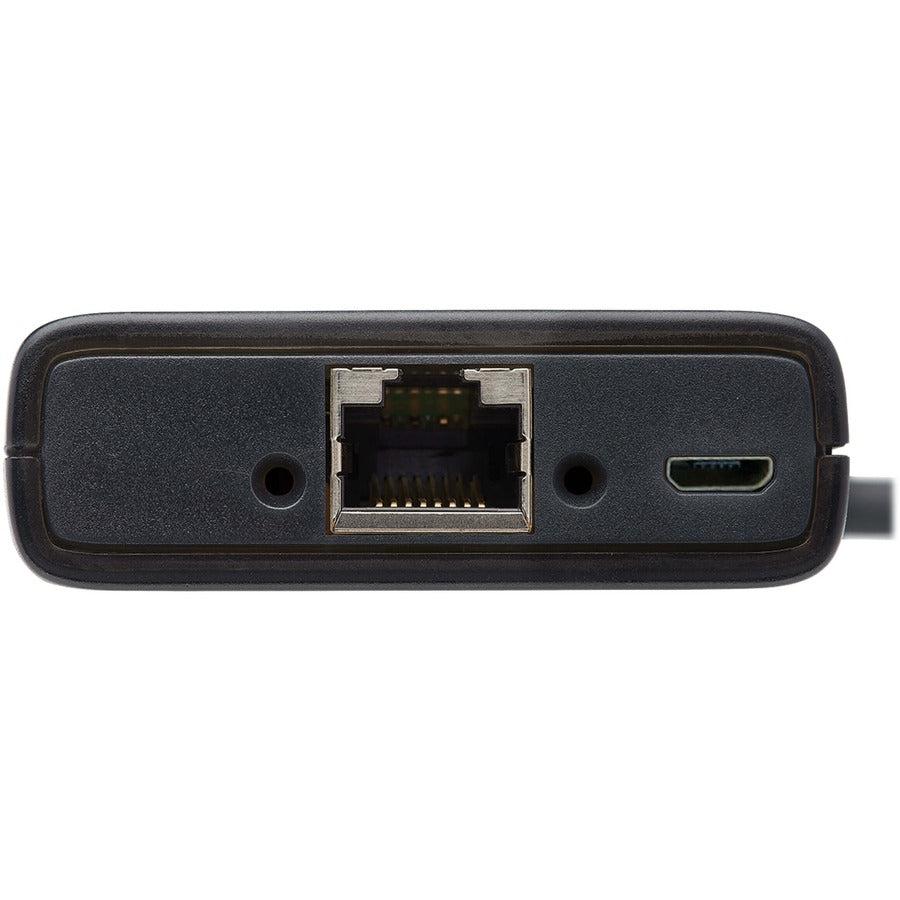

          The receiver works right out of the box with no software or external power supply required. Connect the receiver to the display using its built-in HDMI cable and to the transmitter with Cat6 patch cable (such as Tripp Lite N202-Series cable). A USB Micro-B port is available in the unlikely event additional power is needed.

          TAA-Compliant for GSA Schedule Purchases
          The B127P-100-H-SR is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number B127P-100-H-SR
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model B127P-100-H-SR
          Product Name B127P-100-H-SR HDMI over Cat6 Passive Remote Receiver
          Product Type Video Extender Receiver
          UPC 037332239211
          Network (RJ-45)Yes

          Miscellaneous

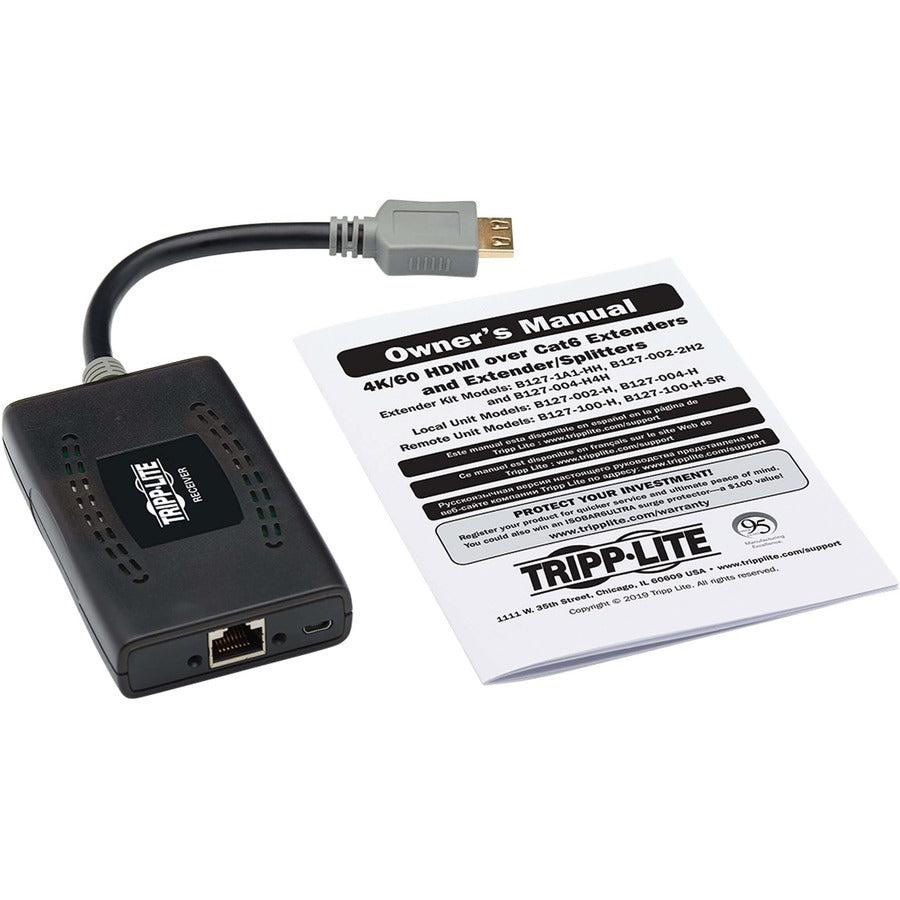

          Package Contents
          • B127P-100-H-SR HDMI over Cat6 Passive Remote Receiver
          • Mounting Hardware
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty1 Year
